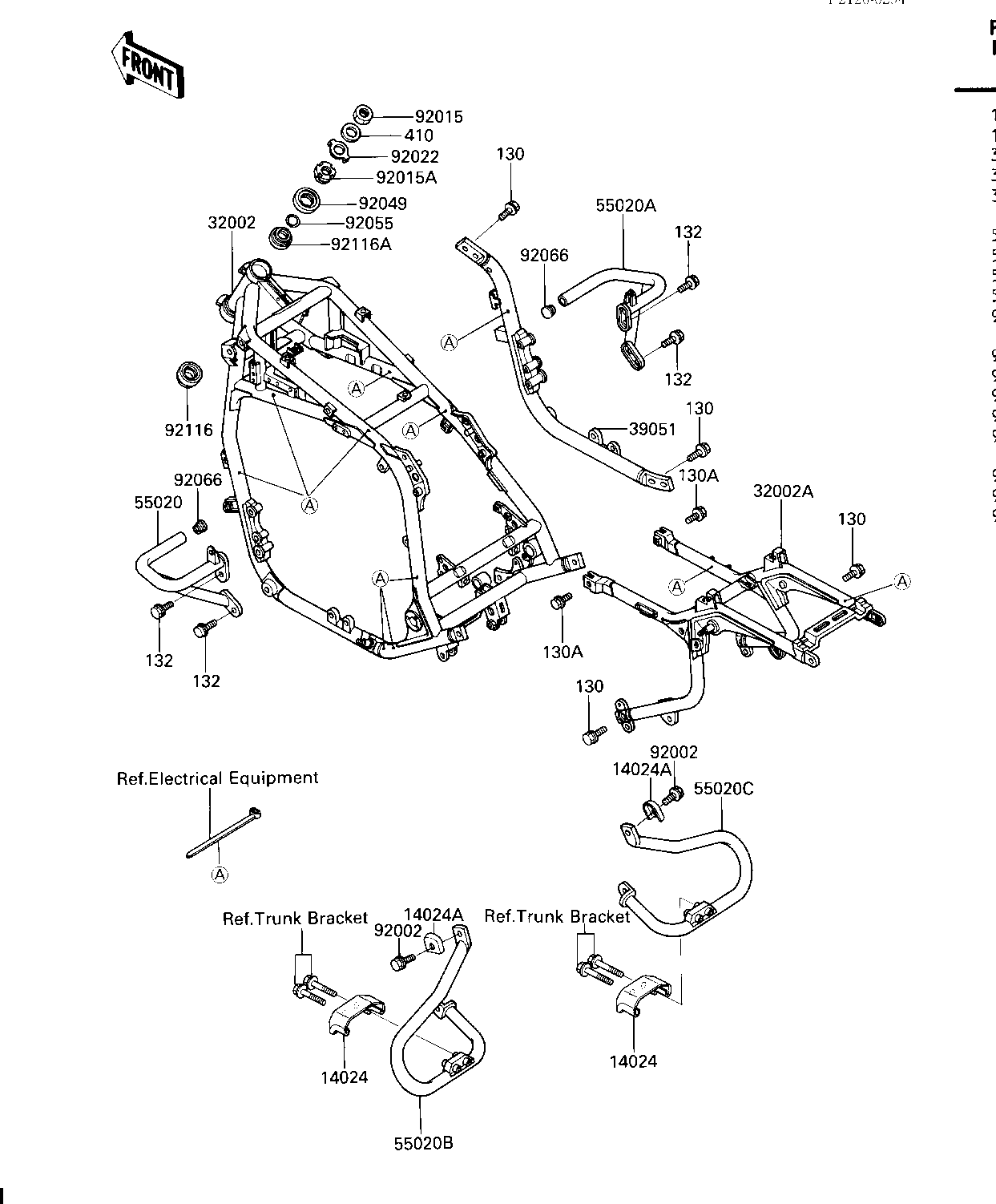

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER | 14024 | 14024-1335 | 2 | ||
| COVER | 14024A | 14024-1336 | 2 | ||
| FRAME-COMP,FR | 32002 | 32002-1947 | 1 | ||
| FRAME-COMP,RR | 32002A | 32002-1861 | 1 | ||
| FRAME-COMP-SIDE | 39051 | 39051-1052 | 1 | ||
| GUARD,FR,LH | 55020 | 55020-1212 | 1 | ||
| GUARD,FR,RH | 55020A | 55020-1213 | 1 | ||
| GUARD,RR,LH | 55020B | 55020-1214 | 1 | ||
| GUARD,RR,RH | 55020C | 55020-1215 | 1 | ||
| BOLT,FLANGED,10X20 | 92002 | 92002-1827 | 2 | ||
| NUT,18MM | 92015 | 92015-1404 | 1 | ||
| NUT | 92015A | 92015-1546 | 1 | ||
| WASHER,CLAW,18.5X30X2 | 92022 | 92022-1555 | 1 | ||
| SEAL-OIL,STEERING STE | 92049 | 92049-1214 | 1 | ||
| RING-0.24.7MM | 92055 | 92055-1160 | 1 | ||
| PLUG,FRAME RUBBER | 92066 | 32112-008 | 2 | ||
| BEARING,ROLLER,32006 | 92116 | 92116-1008 | 1 | ||
| BEARING-ROLLER | 92116A | 92116-1056 | 1 | ||
| BOLT-FLANGED | 130 | 130S1016 | 6 | ||
| BOLT-FLANGED,10X40 | 130A | 130S1040 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0812 | 4 | ||
| W-PLAIN-S | 410 | 410F1800 | 1 |
