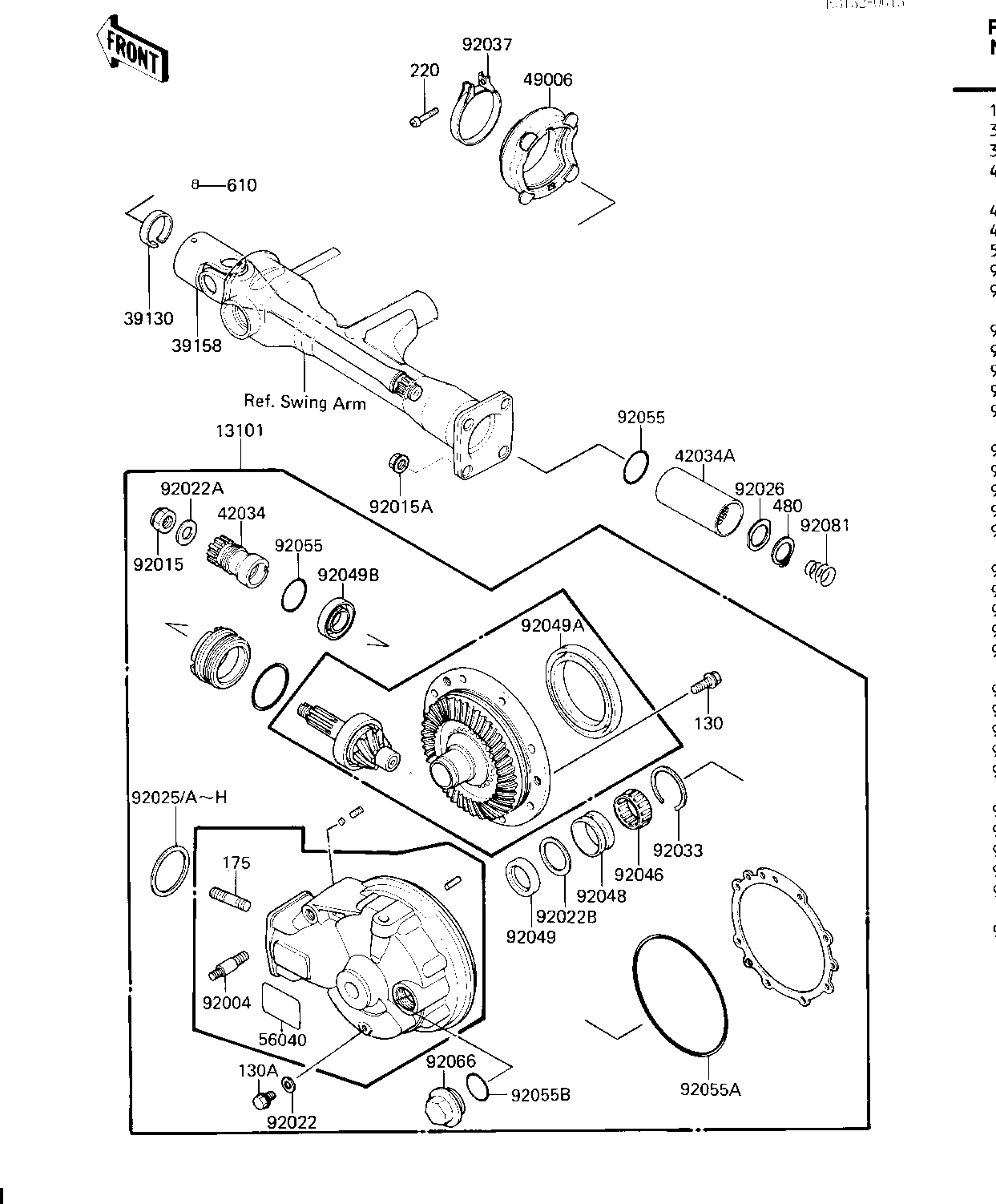

1986 Voyager XII - DRIVE SHAFT/FINAL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY,M.SILVER 13101 13101-1156-7J 1
SPRING,LEAF 39130 39130-1002 1
SHAFT-ASSY-DRIVE 39158 39158-1058 1
COUPLING 42034 42034-1085 1
COUPLING,PROPELLER SH 42034A 42034-1092 1
BOOT 49006 49006-1188 1
LABEL,HYPOID GEAR OIL 56040 56040-1047 1
STUD,RR SHOCKABSORBER 92004 92004-1047 1
NUT,16M/M 92015 92015-1059 1
NUT,FLANGED,10MM,BLAC 92015A 92015-1180 4
WASHER 92022 92022-1086 1
WASHER 92022A 92022-1105 1
WASHER,39X49.5X1 92022B 92022-1294 1
SHIM,T=0.10 92025 92025-1733 AR
SHIM,T=0.15 92025A 92025-1734 AR
SHIM,T=0.50 92025B 92025-1735 AR
SHIM,T=0.60 92025C 92025-1736 AR
SHIM,T=0.70 92025D 92025-1737 AR
SHIM,T=0.80 92025E 92025-1738 AR
SHIM,T=0.90 92025F 92025-1739 AR
SHIM,T=1.00 92025G 92025-1740 AR
SHIM,T=1.20 92025H 92025-1741 AR
SPACER,PROPELLER SHAF 92026 92026-1085 1
RING-SNAP,52MM 92033 92033-1074 1
CLAMP,BOOT FITTING 92037 92037-1112 1
BEARING-NEEDLE,KTV384 92046 92046-1057 1
RACE,ORT465021E01 92048 92048-1019 1
OIL SEAL 92049 92049-1025 1
OIL SEAL,S-831009HS 92049A 92049-1034 1
SEAL-OIL 92049B 92049-1248 1
"0" RING,I.D=32.7MM 92055 92055-1037 2
"0" RING,I.D=150.4MM 92055A 92055-1039 1
RING-O,35.8MM 92055B 92055-1281 1
PLUG,M36X1.5 92066 92066-1151 1
SPRING,PROPELLER SHAF 92081 92081-1183 1
BOLT-FLANGED,8X25 130 130G0825 8
BOLT-FLANGED 130A 130X0812 1
BOLT-STUD-FINE 175 175G1025 4
SCREW-PAN-CROS 220 220B0430 1
CIRCLIP 26MM 480 480J2600 1
PIN-DOWEL,4X6 610 610A0406 1
