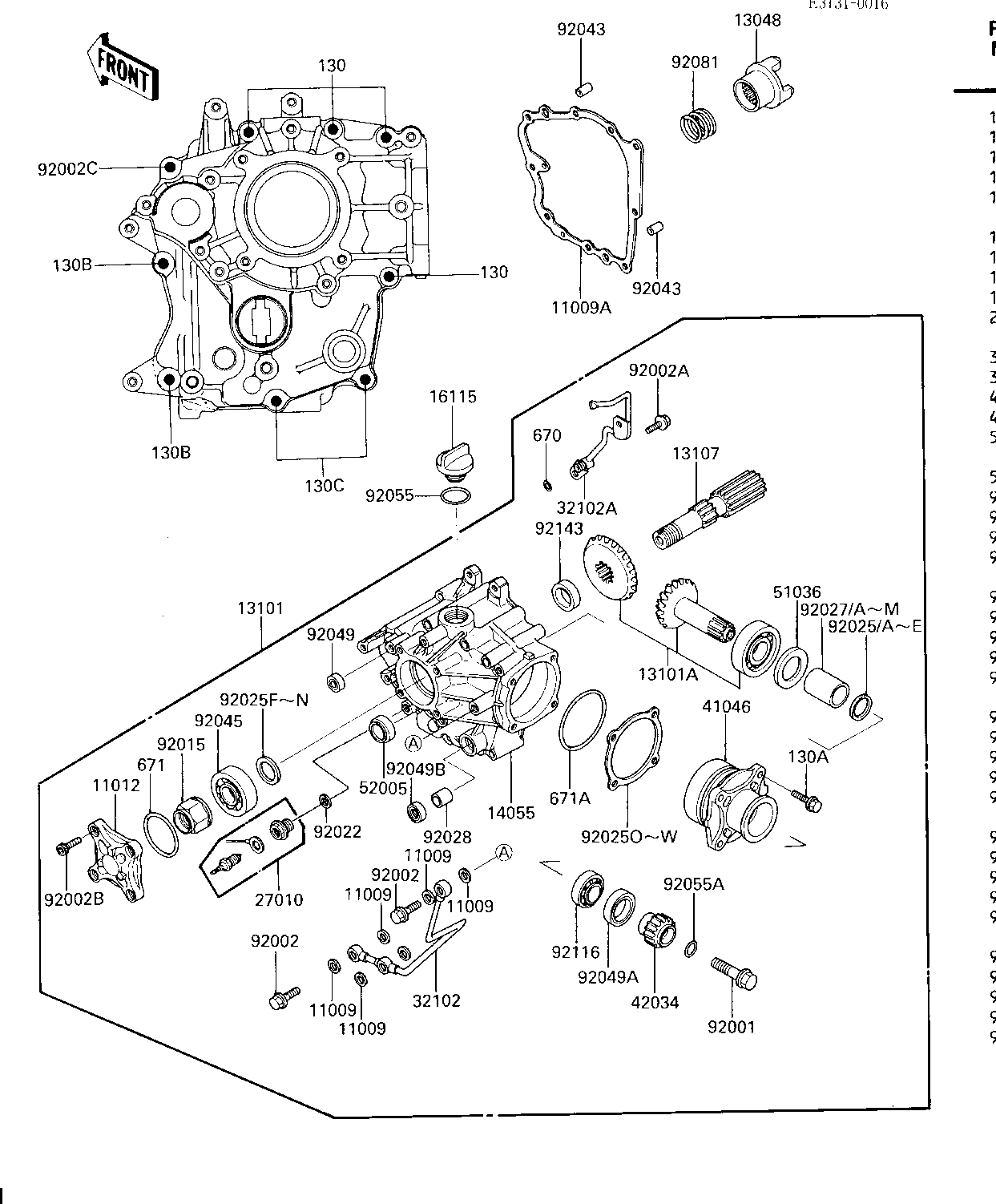

1986 Voyager XII - FRONT BEVEL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PIPE,8.2X1 11009 11009-1344 6
GASKET,GEAR CASE 11009A 11009-1616 1
CAP,BEARING 11012 11012-1489 1
CAM-DAMPER 13048 13048-1074 1
GEAR-ASSY,FRONT BEVEL 13101 13101-1089 1
GEAR SET,FRONT BEVEL 13101A 13101-5027 1
SHAFT,BEVEL,FR 13107 13107-1263 1
CASE-GEAR,FRONT BEVEL 14055 14055-1066 1
CAP-OIL FILLER 16115 16115-1009 1
SWITCH,OVER DRIVE 27010 27010-1210 1
PIPE,OUTSIDE 32102 32033-1940 1
PIPE,INSIDE 32102A 32033-1941 1
HOUSING-BEARING 41046 41046-1074 1
COUPLING,FR DRIVEN 42034 42034-1091 1
CUP 51036 51036-1002 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,12X42 92001 92001-1169 1
BOLT,BANJO,8X20 92002 92002-1618 3
BOLT,6X14 92002A 92002-1656 2
BOLT,SOCKET,6X25 92002B 92002-1696 4
BOLT,6X50 92002C 92002-1779 1
NUT,24MM 92015 92015-1554 1
WASHER,16XX22X1.0 92022 92022-1812 1
SHIM,1.70T 92025 92025-1072 AR
SHIM,1.72T 920257 92025-1073 AR
SHIM,1.74T 92025B 92025-1074 AR
SHIM,1.76T 92025C 92025-1075 AR
SHIM,1.78T 92025D 92025-1076 AR
SHIM,1.80T 92025E 92025-1077 AR
SHIM,25.3X36X0.15 92025F 92025-1688 AR
SHIM,25.3X36X0.50 92025G 92025-1689 AR
SHIM,25.3X36X0.60 92025H 92025-1690 AR
SHIM,25.3X36X0.70 92025I 92025-1691 AR
SHIM,25.3X36X0.80 92025J 92025-1692 AR
SHIM,25.3X36X0.90 92025K 92025-1693 AR
SHIM,25.3X36X1.0 92025L 92025-1694 AR
SHIM,25.3X36X1.1 92025M 92025-1695 AR
SHIM,25.3X36X1.2 92025N 92025-1696 AR
SHIM,T=0.10 92025O 92025-1724 AR
SHIM,T=0.15 92025P 92025-1725 AR
SHIM,T=0.50 92025Q 92025-1726 AR
SHIM,T=0.60 92025R 92025-1727 AR
SHIM,T=0.70 92025S 92025-1728 AR
SHIM,T=0.80 92025T 92025-1729 AR
SHIM,T=0.90 92025U 92025-1730 AR
SHIM,T=1.00 92025V 92025-1731 AR
SHIM,T=1.20 92025W 92025-1732 AR
COLLAR,L=22.8M/M 92027 92027-1152 AR
COLLAR,L=22.9M/M 92027A 92027-1153 AR
COLLAR,L=23.0M/M 92027B 92027-1154 AR
COLLAR,L=23.1M/M 92027C 92027-1155 AR
COLLAR,L=23.2M/M 92027D 92027-1156 AR
COLLAR,L=23.3M/M 92027E 92027-1157 AR
COLLAR,L=23.4M/M 92027F 92027-1158 AR
COLLAR,L=23.5M/M 92027G 92027-1159 AR
COLLAR,L=23.6M/M 92027H 92027-1160 AR
COLLAR,L=23.7M/M 92027I 92027-1161 AR
COLLAR,L=23.8M/M 92027J 92027-1162 AR
COLLAR,L=23.9M/M 92027K 92027-1163 AR
COLLAR,L=24.0M/M 92027L 92027-1164 AR
COLLAR,L=24.1M/M 92027M 92027-1165 AR
BUSHING,13X15X20 92028 92028-1251 1
PIN-DOWEL 92043 92042-007 2
BEARING-BALL,6305C2 92045 92045-1165 1
OIL SEAL,SD-8187 92049 92049-1017 1
OIL SEAL,TC35527 92049A 92049-1038 1
OIL SEAL,TB13225.5 92049B 92051-005 1
"0" RING,31MM 92055 92055-049 1
"0" RING,I.D=18.64MM 92055A 92055-1044 1
SPRING,CAM DAMPER 92081 92081-1859 1
BEARING 92116 92116-1003 1
COLLAR,25.3X36X10 92143 92027-1968 1
BOLT-FLANGED 130 130Z06100 4
BOLT-FLANGED 130A 130Z0625 4
BOLT-FLANGED 130B 130Z0630 2
BOLT-FLANGED 130C 130Z0650 2
"O" RING,6M/M 670 670B1506 1
"0" RING,65MM 671 671B2565 1
"0" RING,75MM 671A 671B2575 1
