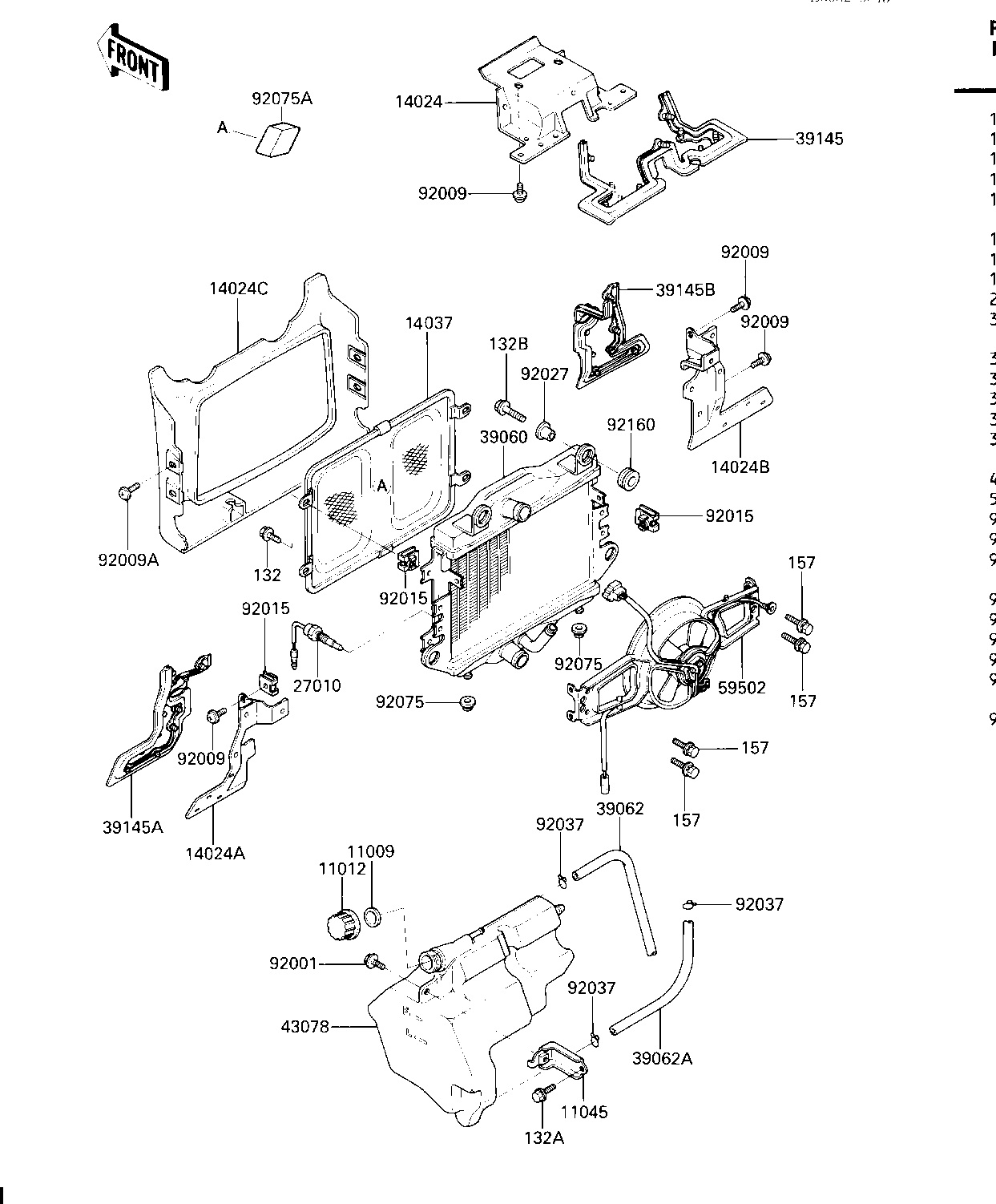

1986 Voyager XII - RADIATOR/FAN/COOLANT TANK
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVE TANK | 11009 | 11009-1145 | 1 | ||
| CAP,RESERVE TANK | 11012 | 11012-1084 | 1 | ||
| BRACKET,RESERVOIR | 11045 | 11044-1744 | 1 | ||
| COVER,RADIATOR UPP | 14024 | 14024-1158 | 1 | ||
| COVER,RADIATOR,LH | 14024A | 14024-1159 | 1 | ||
| COVER,RADIATOR,RH | 14024B | 14024-1160 | 1 | ||
| COVER,RADIATOR,L.V.RE | 14024C | 14024-1293-P5 | 1 | ||
| SCREEN | 14037 | 14037-1076 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1180 | 1 | ||
| RADIATOR | 39060 | 39060-1066 | 1 | ||
| HOSE-COOLING,RESERVOI | 39062 | 39062-1220 | 1 | ||
| HOSE-COOLING,5.5X10.5 | 39062A | 39062-1155 | 1 | ||
| TRIM-SEAL | 39145 | 39145-1061 | 1 | ||
| TRIM-SEAL,COVER,LH | 39145A | 39145-1063 | 1 | ||
| TRIM-SEAL,COVER,RH | 39145B | 39145-1065 | 1 | ||
| RESERVOIR | 43078 | 43078-1067 | 1 | ||
| FAN-ASSY | 59502 | 59502-1060 | 1 | ||
| BOLT,W/WASHER,6X12 | 92001 | 92001-1516 | 1 | ||
| SCREW | 92009 | 92009-1663 | 6 | ||
| SCREW,6X14 | 92009A | 92009-1288 | 4 | ||
| NUT | 92015 | 92015-1487 | 6 | ||
| COLLAR,FUEL TANK FITT | 92027 | 92027-1134 | 4 | ||
| CLAMP,CHAIN OILER | 92037 | 92037-147 | 3 | ||
| DAMPER,RADIATOR GUARD | 92075 | 92075-1469 | 2 | ||
| DAMPER | 92075A | 92075-1981 | 1 | ||
| DAMPER | 92160 | 92160-1007 | 4 | ||
| BOLT-FLANGED-SMALL,6X | 132 | 132J0610 | 4 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0612 | 1 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0825 | 4 | ||
| BOLT-WSP | 157 | 157J0612 | 4 |
