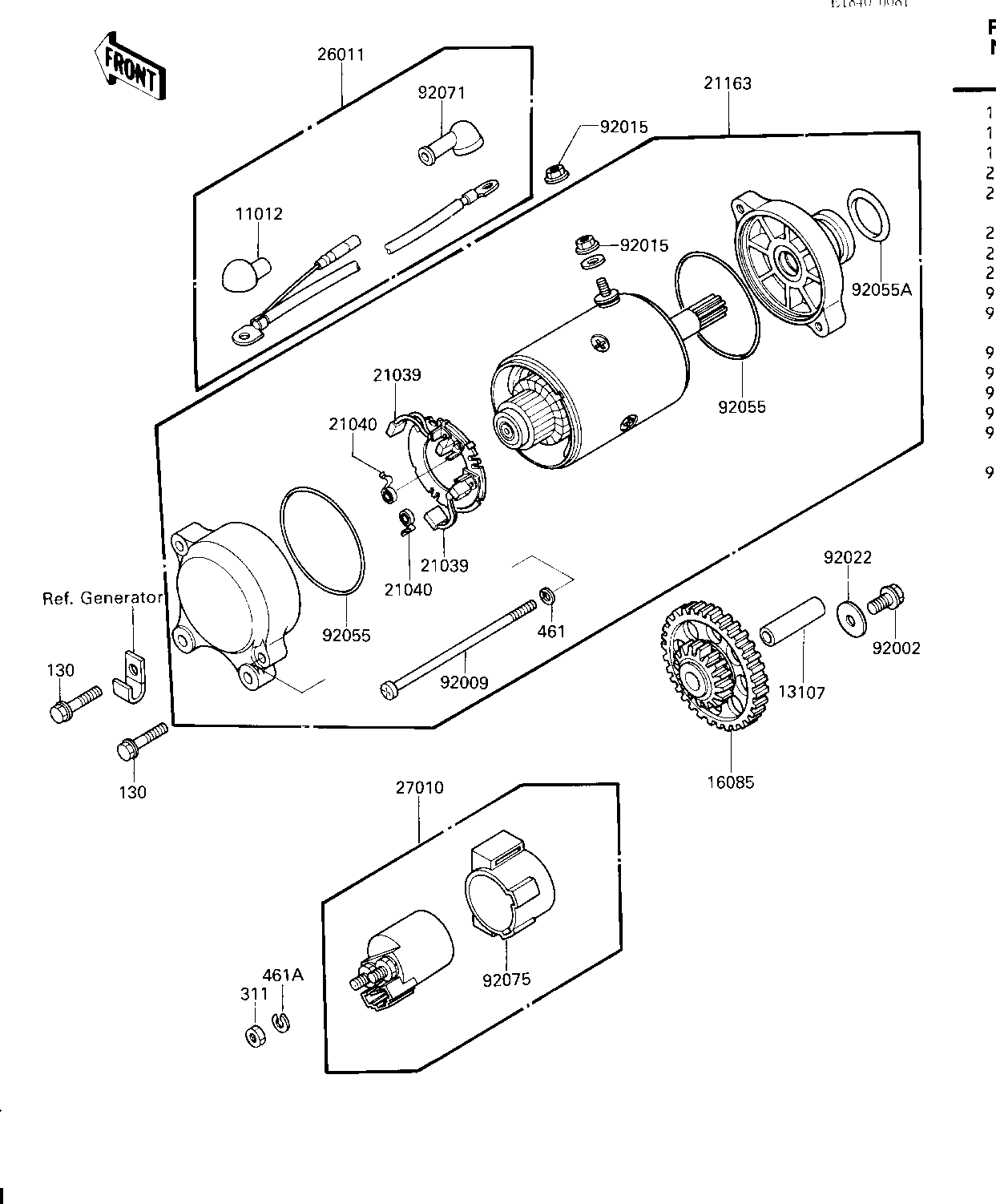

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
| SHAFT,IDLE GEAR | 13107 | 13107-1106 | 1 | ||
| GEAR,IDLE | 16085 | 16085-1216 | 1 | ||
| CARBON BRUSH | 21039 | 21039-003 | 2 | ||
| SPRING,CARBON BRUSH | 21040 | 21040-003 | 2 | ||
| STARTER-ELECTRIC | 21163 | 21163-1098 | 1 | ||
| WIRE-LEAD,STARTER MOT | 26011 | 26011-1369 | 1 | ||
| SWITCH,MAGNETIC | 27010 | 27010-1209 | 1 | ||
| BOLT,6X12 | 92002 | 92002-1572 | 1 | ||
| SCREW | 92009 | 92009-1443 | 2 | ||
| NUT,6MM | 92015 | 92015-1476 | 2 | ||
| WASHER,6X19.5X2 | 92022 | 92022-1517 | 1 | ||
| "0" RING,STARTING MTR | 92055 | 21027-003 | 2 | ||
| RING-O | 92055A | 92055-1303 | 1 | ||
| GROMMET,CORD | 92071 | 21017-017 | 1 | ||
| DAMPER MAG SWITCH SHK | 92075 | 21064-002 | 1 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
| NUT 6MM | 311 | 311B0600 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 2 |
