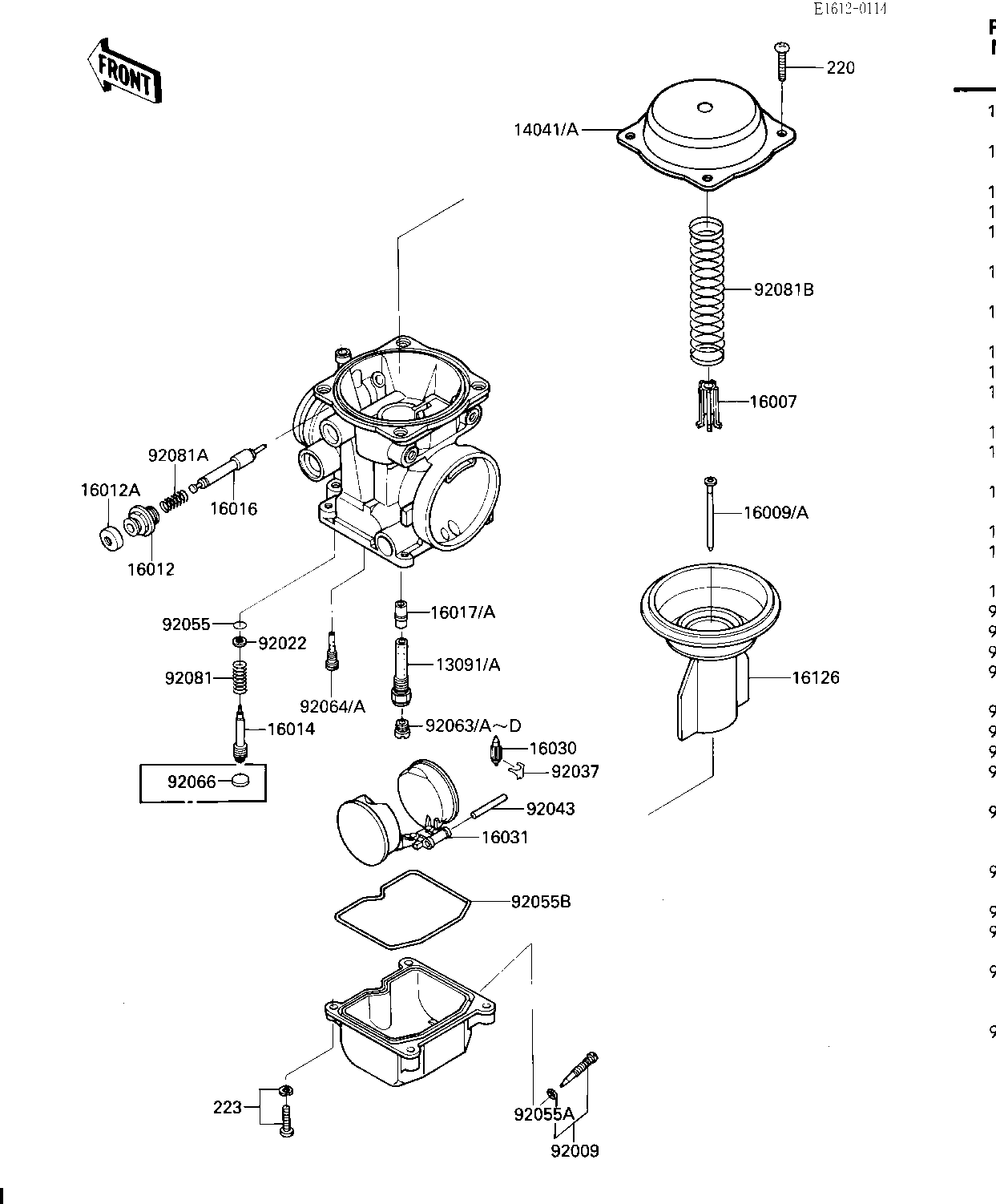

1986 Voyager XII - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 4 CN,US
HOLDER,NEEDLE JET 13091A 13091-1463 4 CA
TOP-CHAMBER,MIXING,OU 14041 14041-1076 2
TOP-CHAMBER,MIXING,IN 14041A 14041-1077 2
SEAT-SPRING 16007 16007-1120 4
NEEDLE-JET,N36G 16009 16009-1316 4 CN,US
NEEDLE-JET,N36H 16009A 16009-1317 4 CA
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1054 4
PLUNGER,STARTER 16016 16016-1061 4
JET-NEEDLE 16017 16017-1313 4 CN
JET-NEEDLE 16017A 16017-1316 4 CA,US
FLOAT VALVE 16030 16030-1007 4
FLOAT 16031 16031-1056 4
VALVE,VACUUM 16126 16126-1159 4
SCREW,DRAIN 92009 92009-1095 4
WASHER,PLAIN 92022 92022-1003 4
CLIP,FLOAT VALVE 92037 16044-007 4
PIN,FLOAT 92043 92043-1148 4
O RING,PILOT ADJ 92055 92055-1002 4
"O" RING,DRAIN SCREW 92055A 92055-1053 4
RING-O,FLOAT CHAMBER 92055B 92055-1222 4
JET-MAIN #110 92063 92063-1114 4 (RACING USE ONLY)
MAIN JET,#105 92063A 92063-1009 4 (RACING USE ONLY)
JET-MAIN,#102 92063B 92063-1115 4
JET-MAIN #108 92063C 92063-1116 4
JET-MAIN #112 92063D 92063-1117 4 (RACING USE ONLY)
JET-PILOT,#35 92064 92064-1101 4 CA,US
JET-PILOT 92064A 92064-1119 4
PLUG,PILOT SCREW 92066 92066-1051 4 CA,US
SPRING,PIROT ADJ SCRW 92081 92081-1002 4
SPRING,STARTER PLUNGE 92081A 92081-1761 4
SPRING,VACUUM VALVE 92081B 92081-1925 4
SCREW PAN HEAD 4X8 220 220B0408 15
SCREW-PAN-WS-CROS 223 223C0416 16
