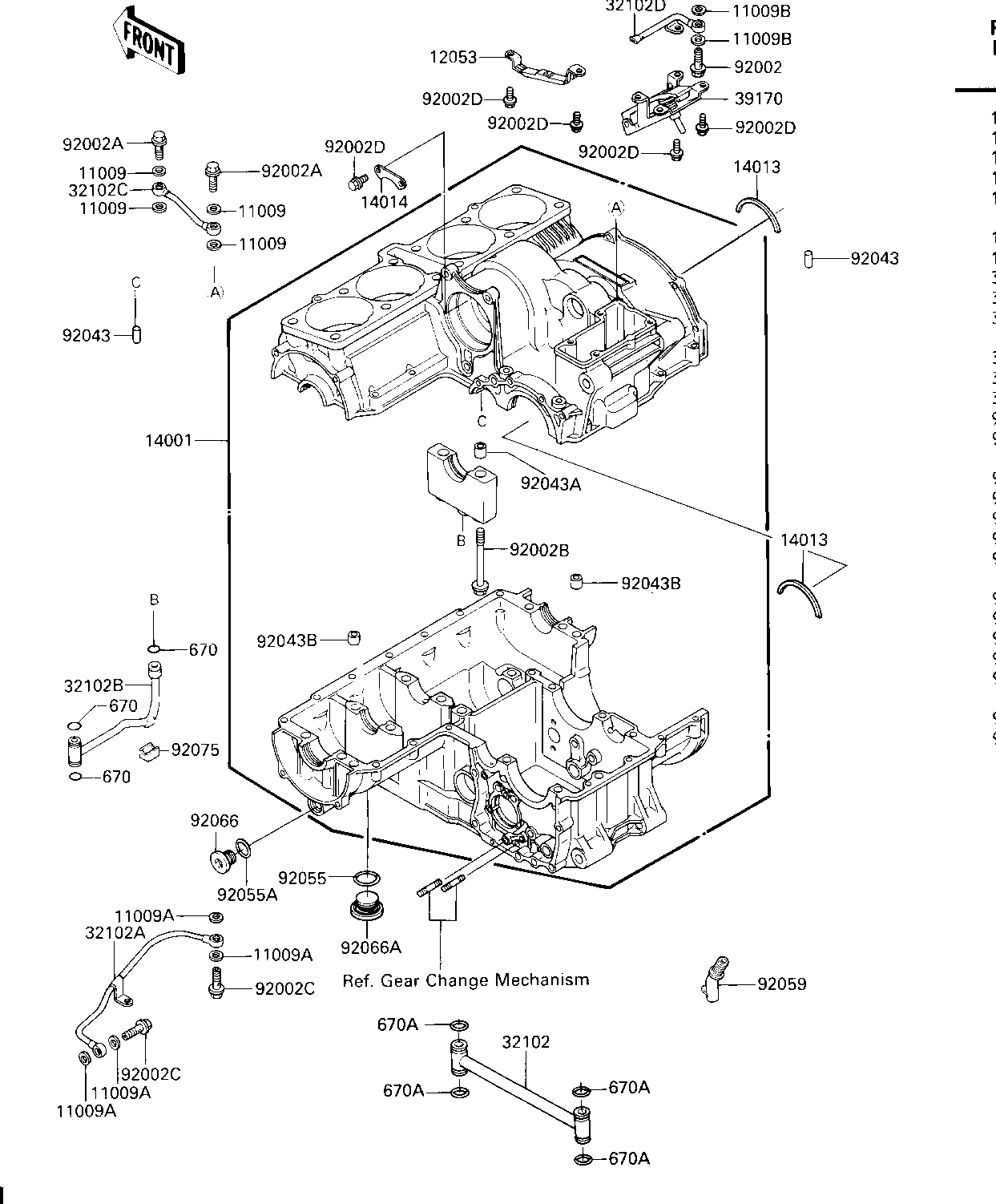

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PIPE,8.2X1 | 11009 | 11009-1344 | 4 | ||
| GASKET,12.4X17X1.5 | 11009A | 11009-1376 | 4 | ||
| GASKET,FUEL COCK | 11009B | 92065-096 | 2 | ||
| GUIDE-CHAIN | 12053 | 12053-1209 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5234 | 1 | ||
| RING-POSITION,T=1.98 | 14013 | 14013-1054 | 2 | ||
| PLATE-POSITION | 14014 | 14014-1075 | 1 | ||
| PIPE,MAIN GALLERY | 32102 | 32033-1928 | 1 | ||
| PIPE | 32102A | 32033-1929 | 1 | ||
| PIPE | 32102B | 32033-1930 | 1 | ||
| PIPE | 32102C | 32033-1931 | 1 | ||
| PIPE | 32102D | 32033-1932 | 1 | ||
| TENSIONER-COMP | 39170 | 39170-1057 | 1 | ||
| BOLT,BANJO,6X19 | 92002 | 92002-1473 | 1 | ||
| BOLT,BANJO,8X20 | 92002A | 92002-1618 | 2 | ||
| BOLT,10X95 | 92002B | 92002-1651 | 2 | ||
| BOLT,BANJO,12X27 | 92002C | 92002-1655 | 2 | ||
| BOLT,6X14 | 92002D | 92002-1656 | 8 | ||
| PIN DOWEL 6MM | 92043 | 92042-016 | 2 | ||
| PIN,DOWEL,14MM | 92043A | 92042-032 | 2 | ||
| PIN,DOWEL,10X8.2X14 | 92043B | 92043-1037 | 2 | ||
| RING-O,25.7X2.4 | 92055 | 92055-1136 | 1 | ||
| RING-O | 92055A | 92055-1146 | 1 | ||
| TUBE,BREATHER | 92059 | 92059-1652 | 1 | ||
| PLUG | 92066 | 92066-066 | 1 | ||
| PLUG,OIL RETURN | 92066A | 92066-1232 | 1 | ||
| DAMPER | 92075 | 92075-1785 | 1 | ||
| O RING | 670 | 670D1509 | 3 | ||
| O RING | 670A | 670D2016 | 4 |
