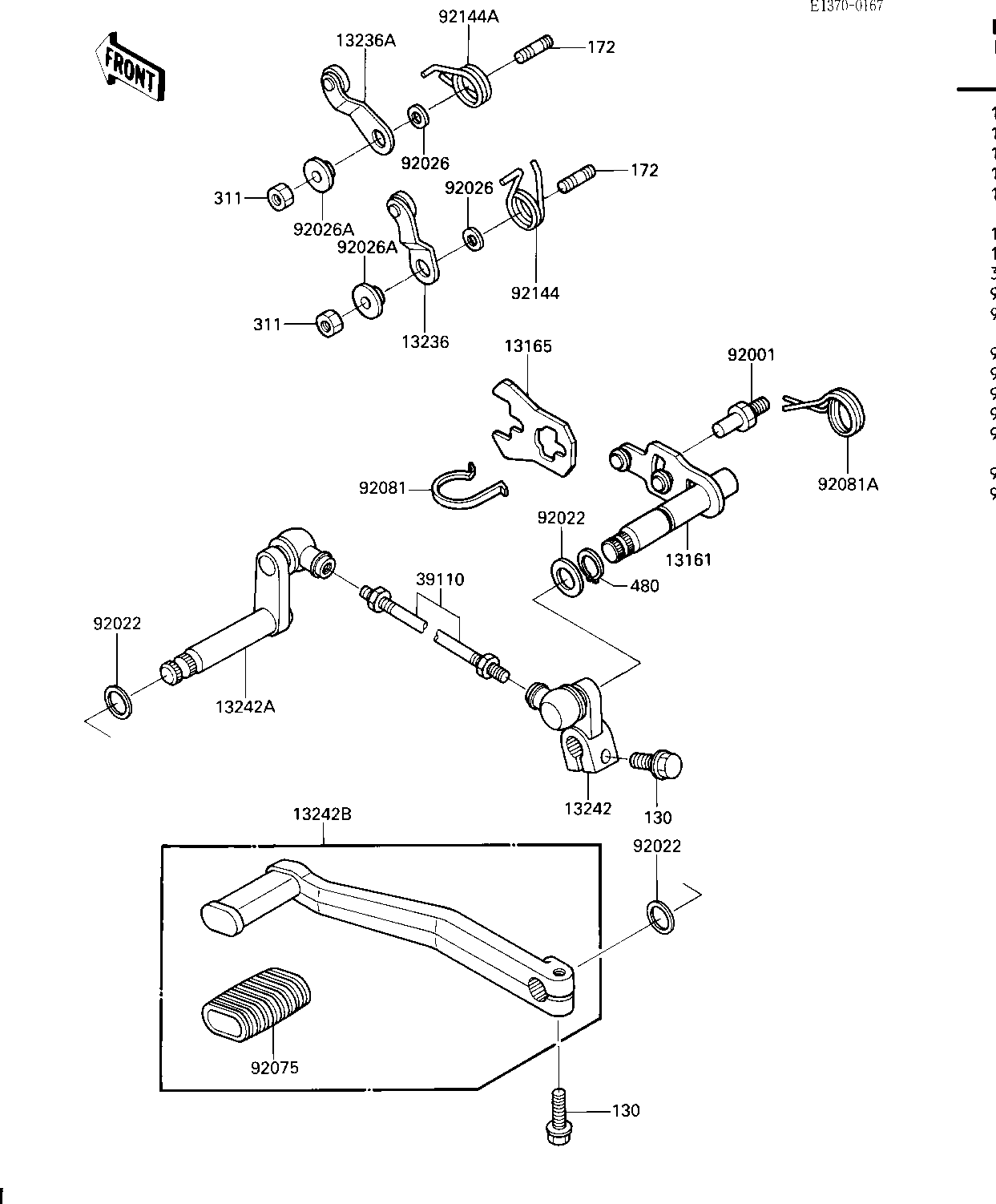

1986 Voyager XII - GEAR CHANGE MECHANISM
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP-CHANGE SHA | 13161 | 13161-1130 | 1 | ||
| PAWL | 13165 | 13165-1120 | 1 | ||
| LEVER-COMP,NEUTRAL PO | 13236 | 13236-1143 | 1 | ||
| LEVER-COMP,GEAR POSIT | 13236A | 13236-1144 | 1 | ||
| LEVER-ASSY-CHANGE | 13242 | 13242-1194 | 1 | ||
| LEVER-ASSY-CHANGE,PED | 13242A | 13242-1209 | 1 | ||
| LEVER-ASSY-CHANGE,PED | 13242B | 13242-1209 | 1 | ||
| ROD-ASSY-TIE,L=90,BLA | 39110 | 39110-1008 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1401 | 1 | ||
| WASHER | 92022 | 92022-1772 | 3 | ||
| WASHER,THRUST | 92026 | 92026-094 | 2 | ||
| SPACER | 92026A | 92026-1217 | 2 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92075-1585 | 1 | ||
| SPRING,CHANGE LEVER | 92081 | 92081-1829 | 1 | ||
| SPRING,CHANGE PEDAL R | 92081A | 92081-1869 | 1 | ||
| SPRING,NEUTRAL LEVER | 92144 | 92081-1941 | 1 | ||
| SPRING,GEAR LEVER | 92144A | 92081-1942 | 1 | ||
| BOLT-FLANGED,6X20 | 130 | 130P0620 | 2 | ||
| STUD 6X12 | 172 | 172G0612 | 2 | ||
| NUT,6M/M | 311 | 311G0600 | 2 | ||
| CIRCLIP,13MM | 480 | 480J1300 | 1 |
