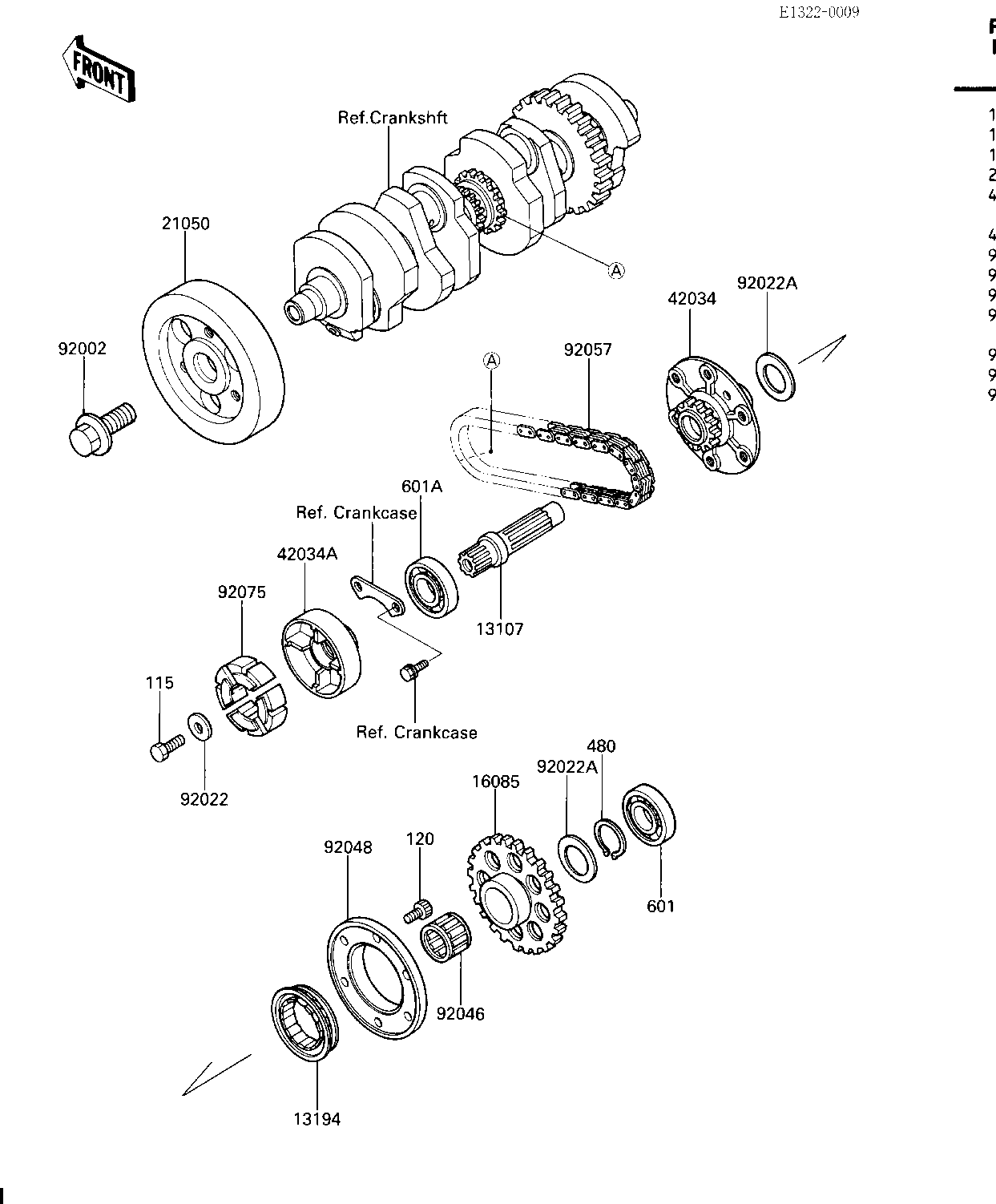

1986 Voyager XII - SECONDARY SHAFT/STARTER CLUTCH
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT | 13107 | 13107-1192 | 1 | ||
| CLUTCH-ONEWAY | 13194 | 13194-1067 | 1 | ||
| GEAR,ONEWAY CLUTCH | 16085 | 16085-1152 | 1 | ||
| FLYWHEEL | 21050 | 21050-1117 | 1 | ||
| COUPLING | 42034 | 42034-1082 | 1 | ||
| COUPLING | 42034A | 42034-1083 | 1 | ||
| BOLT | 92002 | 92002-1862 | 1 | ||
| WASHER,8X22X3 | 92022 | 92022-1518 | 1 | ||
| WASHER-THRUST | 92022A | 92022-225 | 2 | ||
| BEARING,NEEDLE,K25302 | 92046 | 92046-1022 | 1 | ||
| OUTER,ONE WAY CLUTCH | 92048 | 92048-1065 | 1 | ||
| CHAIN-GENERATOR | 92057 | 92057-1276 | 1 | ||
| DAMPER,COUPLING | 92075 | 92075-1790 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 115 | 115G1820 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 120 | 120PQ612 | 6 | ||
| CIRCLIP,25M/M | 480 | 480J2500 | 1 | ||
| BEARING,BALL,#6203Z | 601 | 601A6203Z | 1 | ||
| BEARING BALL #6204 | 601A | 601B6204 | 1 |
