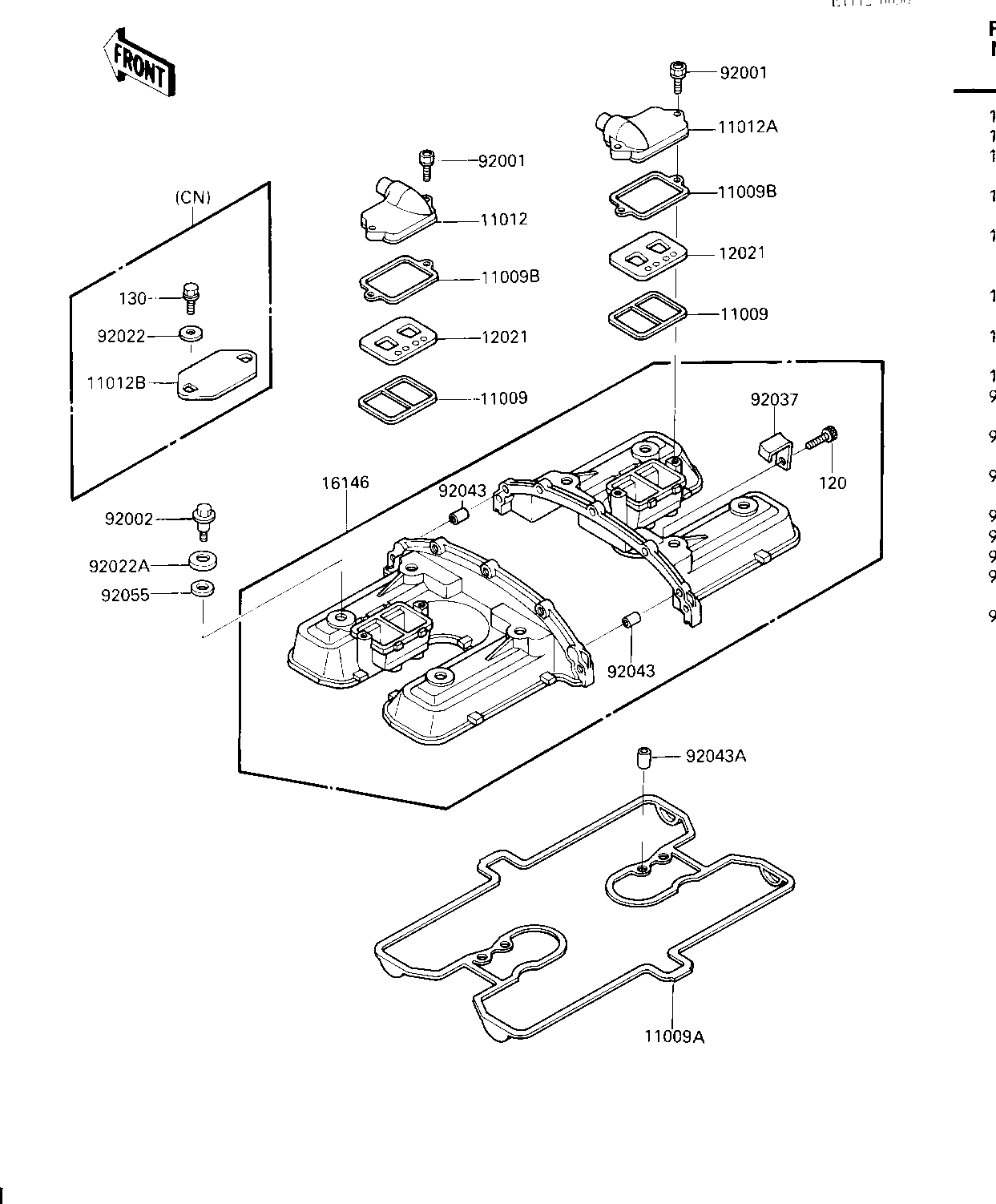

1986 Voyager XII - CYLINDER HEAD COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,REED VALVE | 11009 | 11009-1905 | 2 | ||
| GASKET,CYLINDER HEAD | 11009A | 11009-1559 | 1 | ||
| GASKET,REED VALVE | 11009B | 11009-1595 | 2 | CA,US | |
| CAP,REED VALVE,LH | 11012 | 11012-1487 | 1 | CA,US | |
| CAP,REED VALVE,RH | 11012A | 11012-1488 | 1 | CA,US | |
| CAP,REED VALVE (Canada) | 11012B | 11012-1530 | 2 | CN | |
| VALVE-ASSY-REED | 12021 | 12021-1053 | 2 | CA,US | |
| COVER-ASSY,CYLINDER H | 16146 | 16146-1067 | 1 | ||
| BOLT,FLANGED,6X22 | 92001 | 92001-1352 | 4 | CA,US | |
| BOLT | 92002 | 92150-1447 | 8 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 4 | CN | |
| WASHER,HEAD COVER BOL | 92022A | 92022-1637 | 8 | ||
| CLAMP | 92037 | 92037-1764 | 1 | ||
| PIN,DOWEL,4.2X6X12 | 92043 | 92043-1262 | 2 | ||
| PIN,DOWEL,6.2X8X14 | 92043A | 92043-1263 | 4 | ||
| RING-O,HEAD COVER BOL | 92055 | 92055-1225 | 8 | ||
| BOLT,6X25 | 120 | 120P0625 | 5 | ||
| BOLT | 130 | 130B0614 | 4 | CN |
