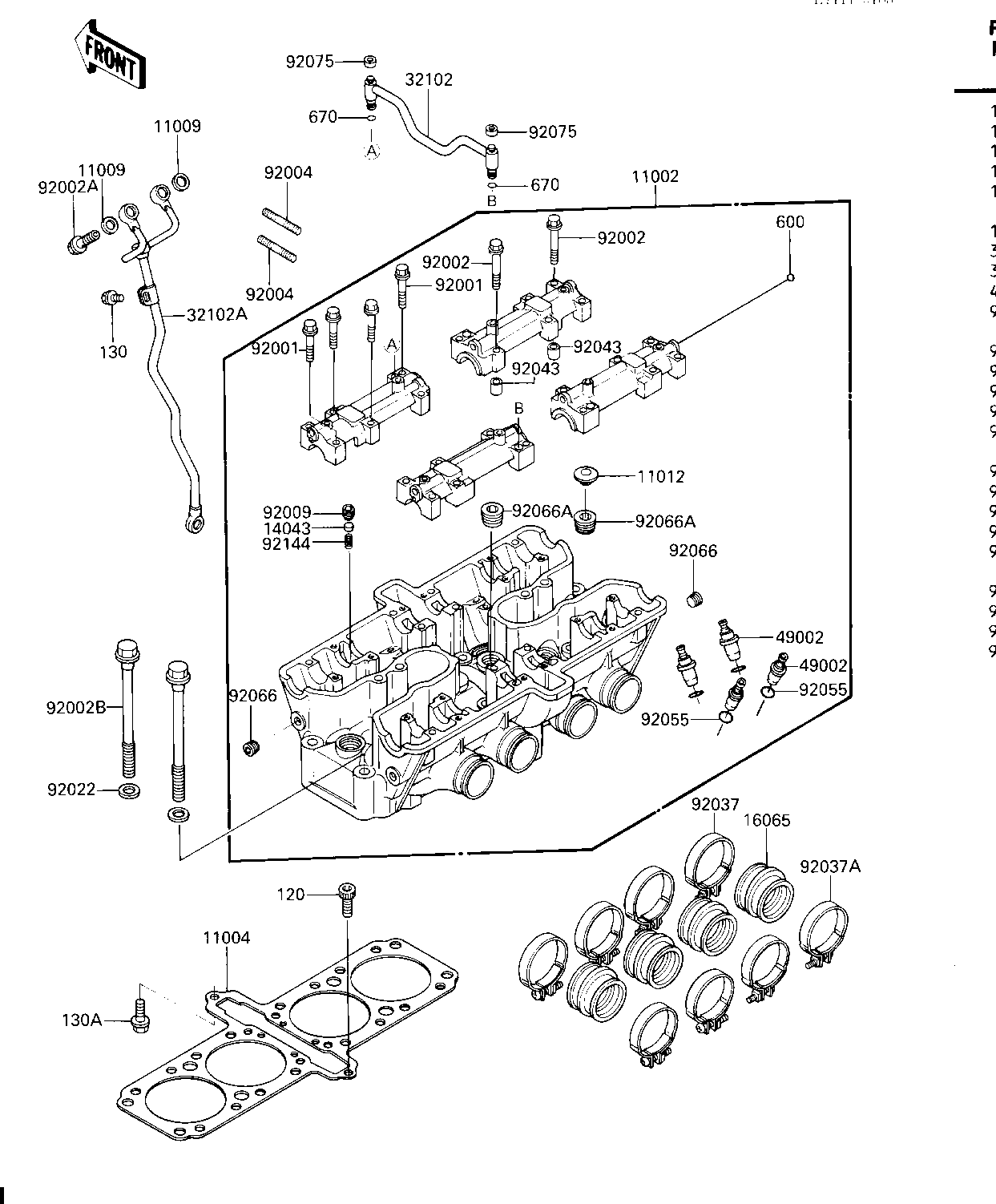

1986 Voyager XII - CYLINDER HEAD

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-1212 1
GASKET-HEAD 11004 11004-1146 1
GASKET,12.4X17X1.5 11009 11009-1376 6
CAP,PLUG 11012 11012-1493 2
FILTER,OIL 14043 14043-1056 4
HOLDER-CARBURETOR 16065 16065-1140 4
PIPE,OIL 32102 32033-1939 2
PIPE,OIL 32102A 32102-1331 1
GUIDE-VALVE 49002 49002-1052 16
BOLT,FLANGED,6X38 92001 92001-1105 16
BOLT,6X46 92002 92001-1872 8
BOLT,BANJO,12X27 92002A 92002-1655 3
BOLT,11X164 92002B 92002-1660 12
STUD,8X20 92004 92004-1110 8
SCREW 92009 92009-1410 4
WASHER,11.5X20.5X1.6 92022 92022-1768 12
CLAMP 92037 92037-1523 4
CLAMP 92037A 92037-1843 4
PIN,DOWEL,6.2X8X14 92043 92043-1263 8
RING-O,11.7MM 92055 92055-1265 16
PLUG,OIL LINE,1/8X7 92066 92066-1227 4
PLUG 92066A 92066-1253 4
DAMPER,OIL PIPE 92075 92075-1802 4
SPRING 92144 92081-1943 4
BOLT,SOCKET,8X30 120 120P0830 1
BOLT,FLANGED,6X10 130 130B0610 1
BOLT,FLANGED,8X30 130A 130G0830 1
BALL STEEL 1/4' 600 600A0800 8
O RING 670 670D1506 4
