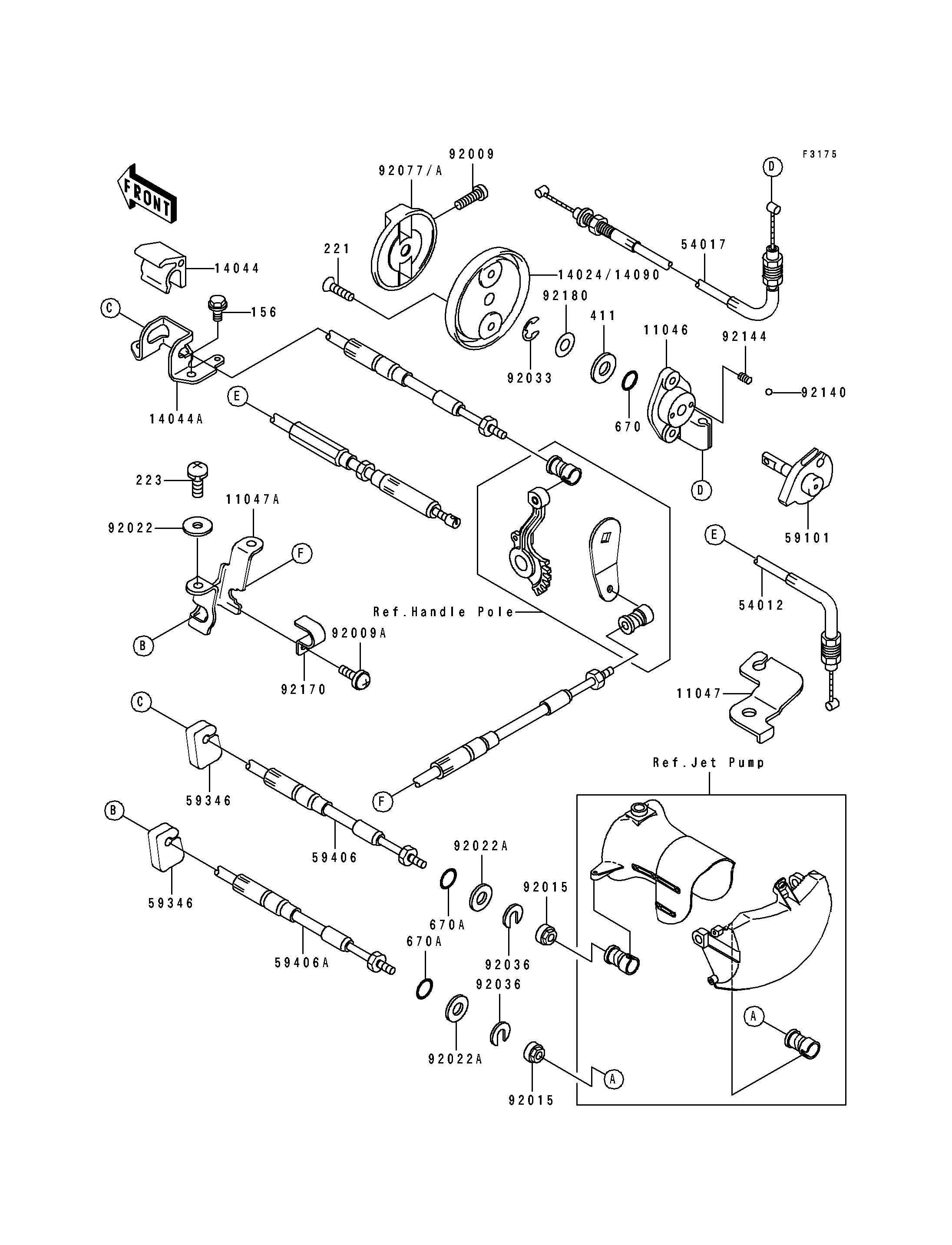

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,STARTER CABLE | 11046 | 11046-3712 | 1 | ||
| BRACKET,THROTTLE CABLE | 11047 | 11047-3714 | 1 | ||
| BRACKET,REVERSE CABLE | 11047A | 11047-3722 | 1 | ||
| HOLDER-CABLE,STEERING | 14044 | 14044-3714 | 1 | ||
| HOLDER-CABLE,STEERING | 14044A | 14044-3717 | 1 | ||
| COVER,STARTER | 14090 | 14090-3728 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-3730 | 1 | ||
| CABLE-STARTER | 54017 | 54017-3721 | 1 | ||
| REEL,STARTER CABLE | 59101 | 59101-3704 | 1 | ||
| DETENT | 59346 | 59346-504 | 2 | ||
| CABLE-STRG | 59406 | 59406-3724 | 1 | ||
| CABLE-STRG,REVERSE | 59406A | 59406-3725 | 1 | ||
| SCREW,4X8 | 92009 | 92009-3729 | 1 | ||
| SCREW,5X12 | 92009A | 92009-3740 | 1 | ||
| NUT,20MM | 92015 | 92015-526 | 2 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 2 | ||
| WASHER | 92022A | 92022-535 | 2 | ||
| RING-SNAP,7MM | 92033 | 92033-3704 | 1 | ||
| RING-SNAP | 92036 | 92036-501 | 2 | ||
| KNOB,FUEL TAP | 92077A | 92077-3719 | 1 | ||
| BALL,3MM | 92140 | 92140-3702 | 2 | ||
| SPRING | 92144 | 92144-3712 | 2 | ||
| CLAMP | 92170 | 92170-3724 | 1 | ||
| SHIM,8.5X18X0.15 | 92180 | 92180-3702 | AR | ||
| BOLT-WP,6X12 | 156 | 156R0612 | 2 | ||
| SCREW-CSK-CROS,5X16 | 221 | 221R0516 | 2 | ||
| SCREW-PAN-WS-CROS,6X16 | 223 | 223R0616 | 2 | ||
| WASHER-PLAIN,8MM | 411 | 411S0800 | 1 | ||
| O RING,8MM | 670 | 670B1508 | 1 | ||
| O RING,11MM | 670A | 670B2011 | 2 |
| BRACKET,STARTER CABLE | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,THROTTLE CABLE | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,REVERSE CABLE | |
| REF # | 11047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CABLE,STEERING | |
| REF # | 14044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CABLE,STEERING | |
| REF # | 14044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STARTER | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE | |
| REF # | 54012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STARTER | |
| REF # | 54017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REEL,STARTER CABLE | |
| REF # | 59101 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DETENT | |
| REF # | 59346 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CABLE-STRG | |
| REF # | 59406 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STRG,REVERSE | |
| REF # | 59406A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X8 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,7MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KNOB,FUEL TAP | |
| REF # | 92077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL,3MM | |
| REF # | 92140 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIM,8.5X18X0.15 | |
| REF # | 92180 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT-WP,6X12 | |
| REF # | 156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,5X16 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS,6X16 | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,8MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,8MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,11MM | |
| REF # | 670A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
