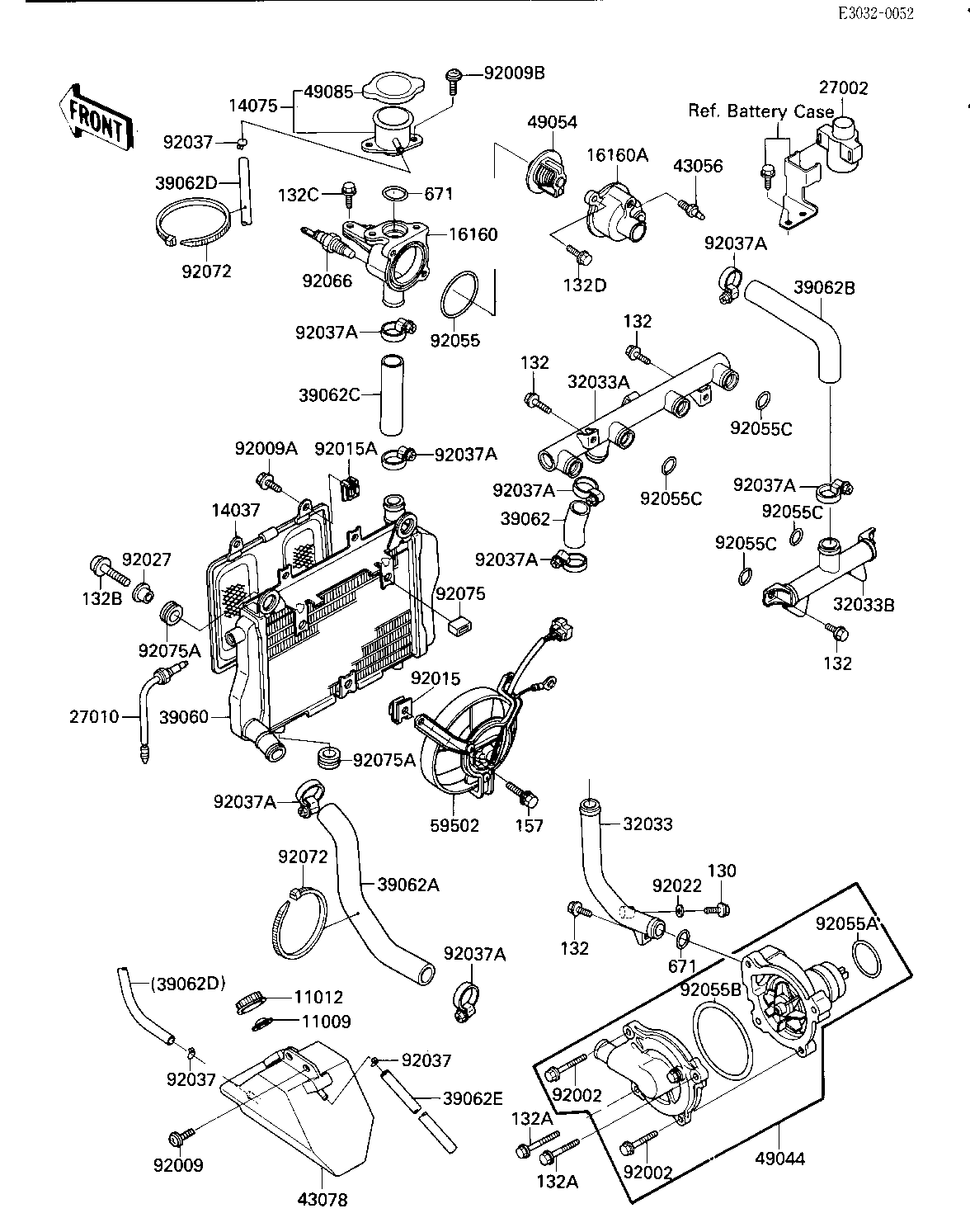

1986 Ninja® 1000R - RADIATOR/FAN/WATER PUMP (E/NO. 003102-)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVE TANK 11009 11009-1145 1
CAP,RESERVE TANK 11012 11012-1084 1
SCREEN,RADIATOR 14037 14037-1070 1
CAP-ASSY,RADIATOR 14075 14075-1062 1
BODY 16160 16160-1100 1
BODY 16160A 16160-1111 1
RELAY-ASSY 27002 27002-1054 1
SWITCH,FAN 27010 27010-1180 1
PIPE-WATER 32033 39192-1028 1
PIPE 32033A 32033-1262 1
PIPE 32033B 32033-1846 1
RADIATOR 39060 39060-1063 1
HOSE-COOLING 39062 39062-1072 1
HOSE-COOLING 39062A 39062-1117 1
HOSE-COOLING 39062B 39062-1118 1
HOSE-COOLING 39062C 39062-1119 1
HOSE-COOLING,5.5X10.5 39062D 39062-1121 1
HOSE-COOLING,5.5X10.5 39062E 39062-1144 1
BREEDER 43056 43056-003 1
RESERVOIR 43078 43078-1063 1
PUMP-WATER 49044 49044-1058 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1053 1
FAN-ASSY 59502 59502-1056 1
BOLT,6X22 92002 92002-1392 2
SCREW 92009 92009-1258 2
SCREW,TAPPING,6MM 92009A 92009-1261 4
SCREW,6X14 92009B 92009-1288 2
NUT 92015 92015-1487 3
NUT 92015A 92015-1582 4
WASHER,PLAIN 92022 92022-304 1
COLLAR,FUEL TANK FITT 92027 92027-1134 2
CLAMP,CHAIN OILER 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1985 8
"0" RING,53.5MM 92055 92055-112 1
RING-O,33MM 92055A 92055-1266 1
RING-O,WATER PUMP 92055B 92055-1271 1
RING-O,16MM 92055C 92055-1282 6
PLUG,SENSOR WATER 92066 92066-1183 1
BAND 92072 92072-1197 2
DAMPER,SIDE COVER 92075 92075-1446 2
DAMPER 92075A 92160-1007 4
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED-SMALL 132 132J0612 5
BOLT-FLANGED-SMALL 132A 132J0640 2
BOLT-FLANGED-SMALL 132B 132J0825 2
BOLT-FLANGED-SMALL 132C 132Y0616 2
BOLT-FLANGED-SMALL 132D 132Y0620 2
BOLT-WSP 157 157J0616 3
"0" RING,25MM 671 671B2525 2
