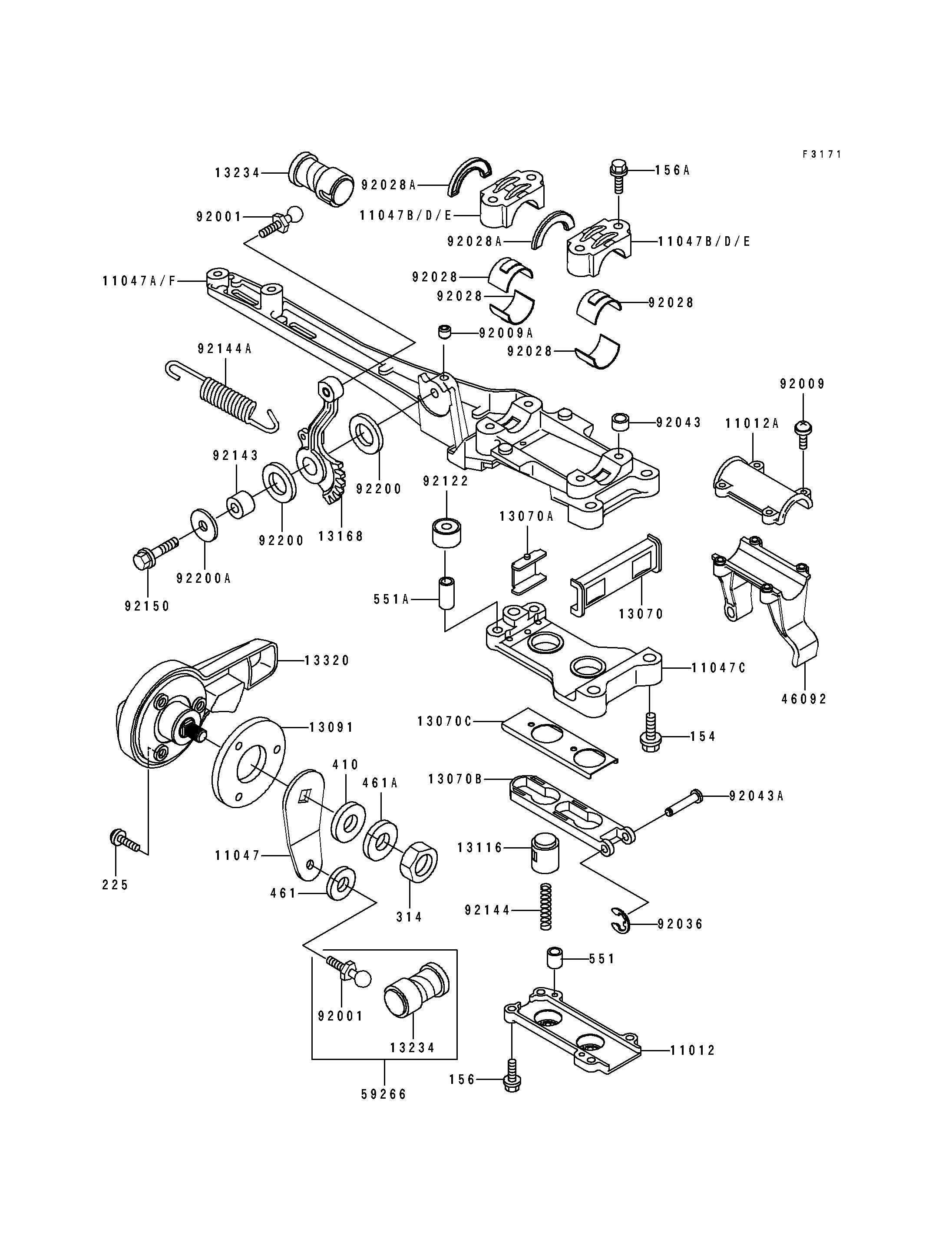

1993 SC - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BRACKET,LWR 11012 11012-3751 1
CAP,LEVER GRIP 11012A 11012-3755 1
BRACKET,CABLE JOINT 11047 11047-3723 1
BRACKET,STEERING,LWR 11047C 11047-3729 1
BRACKET,STEERING SHAFT 11047D 11047-3771 2
BRACKET,STEERING BASE 11047F 11047-3782 1
GUIDE,SLIDE 13070 13070-3703 1
GUIDE,SLIDE 13070A 13070-3704 1
GUIDE,SLIDE STOPPER 13070B 13070-3706 1
GUIDE,SLIDE STOPPER 13070C 13070-3707 1
HOLDER,REVERSE LEVER 13091 13091-3756 1
ROD-PUSH 13116 13116-3703 2
LEVER,STEERING 13168 13168-3716 1
SHAFT-COMP,JOINT 13234 13234-3708 2
LEVER-ASSY,REVERSE 13320 13320-3704 1
LEVER-GRIP,HANDLE STOPPER 46092 46092-3702 1
JOINT-BALL 59266 59266-3707 2
BOLT,BALL,6MM 92001 92001-3703 2
SCREW,TAPPING,4X14 92009 92009-3762 4
SCREW 92009A 92009-3780 1
BUSHING,BUA 12.5 13.5 19 92028 92028-3746 4
BUSHING,BUA 26.2 41.8 3.5 92028A 92028-3747 2
RING-SNAP 92036 92036-518 1
PIN 92043 92043-3715 4
PIN,6X27.5 92043A 92043-3732 1
ROLLER 92122 92122-3701 2
COLLAR,8.2X14X11.2 92143 92143-3724 1
SPRING 92144 92144-3729 2
SPRING 92144A 92144-3734 1
BOLT,FLANGED,8X30 92150 92150-3803 1
WASHER,14.1X25X2 92200 92200-3710 2
WASHER,8.5X25X1.5 92200A 92200-3717 1
BOLT-WP-SMALL,8X35 154 154R0835 3
BOLT-WP,5X20 156 156R0520 4
BOLT-WP 156A 156R0635 4
SCREW-PAN-WSP-CROS,6X16 225 225R0616 3
NUT-HEX-FINE,10MM 314 314R1000 1
W-PLAIN-S,10MM 410 410S1000 1
WASHER-SPRING,6MM 461 461S0600 1
WASHER-SPRING,10MM 461A 461S1000 1
PIN-DOWEL 551 551R0408 2
PIN-DOWEL,6X25 551A 551R0625 2
