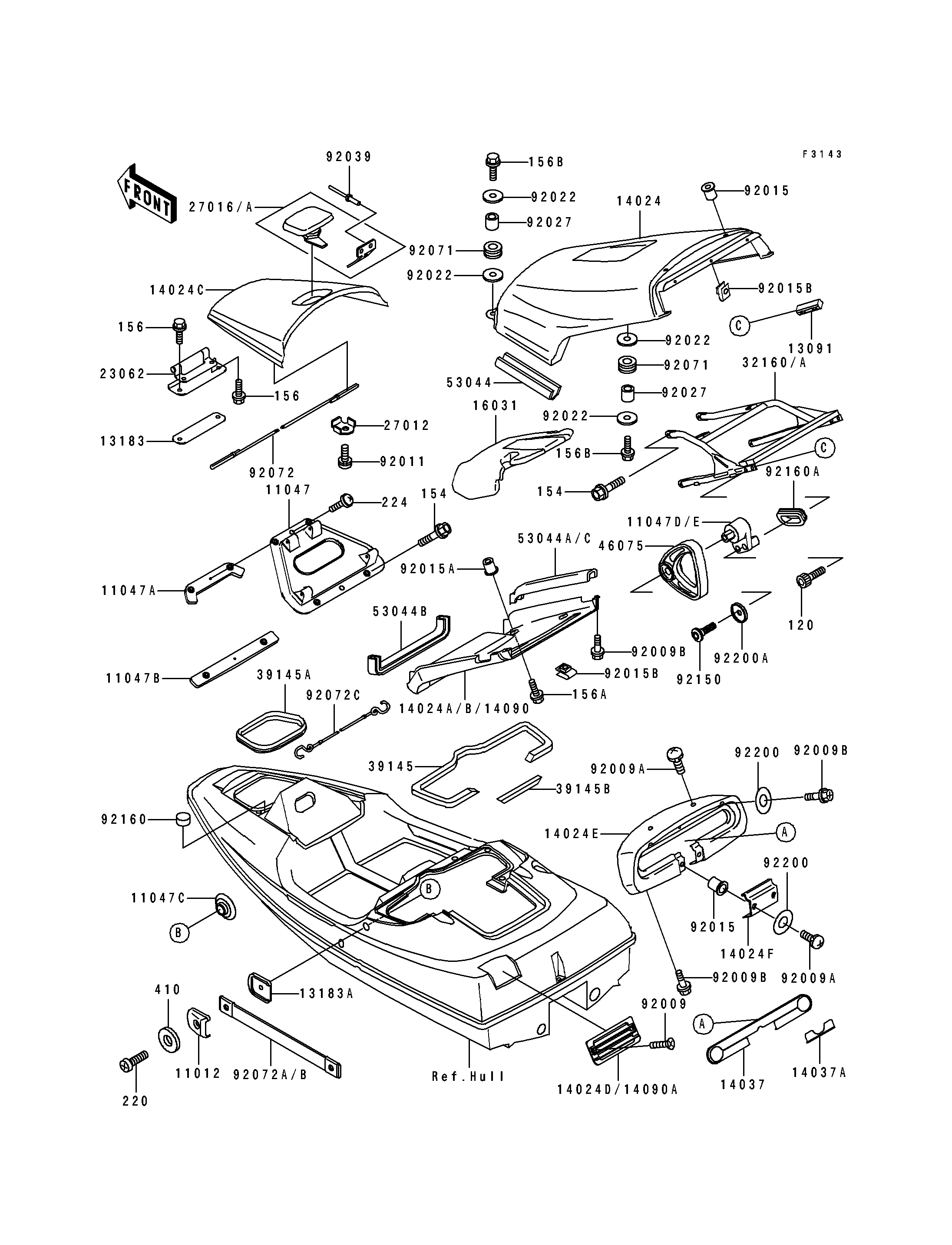

1993 SC - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SIDE BAND,J.WHITE 11012 11012-3756-8C 4
BRACKET,HANDLE FRAME 11047 11047-3735 1
BRACKET,HANDLE FRAME,UNDER,FR 11047A 11047-3736 1
BRACKET,HANDLE FRAME,UNDER,RR 11047B 11047-3737 1
BRACKET,SIDE BAND 11047C 11047-3751 4
BRACKET,PASSENGER GRIP,LH 11047D 11047-3785 1
BRACKET,PASSENGER GRIP,RH 11047E 11047-3786 1
HOLDER 13091 13091-3772 2
PLATE,HINGE BRACKET 13183 13183-3781 1
PLATE,SIDE BAND 13183A 13183-3796 4
COVER,HANDLE TOWER,UPP,J.WHITE 14024 14024-3790-8C 1
COVER,HATCH,J.WHITE 14024C 14024-3792-8C 1
COVER,HANDLE TOWER,TOP,GRAY 14024E 14024-3802-JH 1
COVER,HANDLE TOWER,TOP,GRAY 14024F 14024-3803-JH 1
SCREEN,HANDLE TOWER,TOP 14037 14037-3703 1
SCREEN,HANDLE TOWER,TOP 14037A 14037-3704 1
COVER,HANDLE TOWER,LWR,GRAY 14090 14090-3720-JH 1
COVER,REAR DUCT 14090A 14090-3726 1
FLOAT,HANDLE,UPP 16031 16031-3806 1
BRACKET-COMP,HATCH COVER 23062 23062-3703 1
HOOK 27012 27012-501 1
LOCK-ASSY,HATCH 27016A 27016-3719 1
FRAME-COMP,HANDLE 32160A 32160-3702 1
TRIM-SEAL,L=1058 39145A 39145-3730 1
TRIM-SEAL,SEAT,L=1600 39145B 39145-3738 1
GRIP,PASSENGER 46075 46075-3727 2
TRIM,L=250 53044 53044-3709 2
TRIM,L=550 53044B 53044-3716 1
TRIM,L=390 53044C 53044-3726 2
SCREW,TAPPING,4X14 92009 92009-3755 2
SCREW,6X20 92009A 92009-3781 4
SCREW,5X16 92009B 92009-3789 7
SCREW,TAPPING 92011 92011-561 1
NUT 92015 92015-1700 4
NUT,POP,6MM 92015A 92015-3762 4
NUT,5MM 92015B 92015-3799 7
WASHER,6.2X20X2 92022 92022-3714 8
COLLAR,6.2X10X10 92027 92027-3705 4
RIVET,4MM 92039 92039-3703 3
GROMMET 92071 92071-3716 4
BAND,STORAGE COVER 92072 92072-3756 1
BAND,SIDE,GREEN 92072A 92072-3758-LH 2
BAND,SEAT STOPPER 92072C 92072-3762 1
BOLT,SOCKET,8X30 92150 92150-3805 2
DAMPER 92160 92160-3775 2
DAMPER 92160A 92160-3796 2
WASHER,NYLON,5.2X12X1 92200 92200-1011 5
WASHER 92200A 92200-3726 2
BOLT-SOCKET,6X40 120 120R0640 4
BOLT-WP-SMALL,8X30 154 154R0830 8
BOLT-WP,6X18 156 156R0618 4
BOLT-WP,6X20 156A 156R0620 4
BOLT-WP,6X25 156B 156R0625 4
SCREW-PAN-CROS,6X25 220 220R0625 4
SCREW-PAN-WP-CROS,5X14 224 224R0514 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
