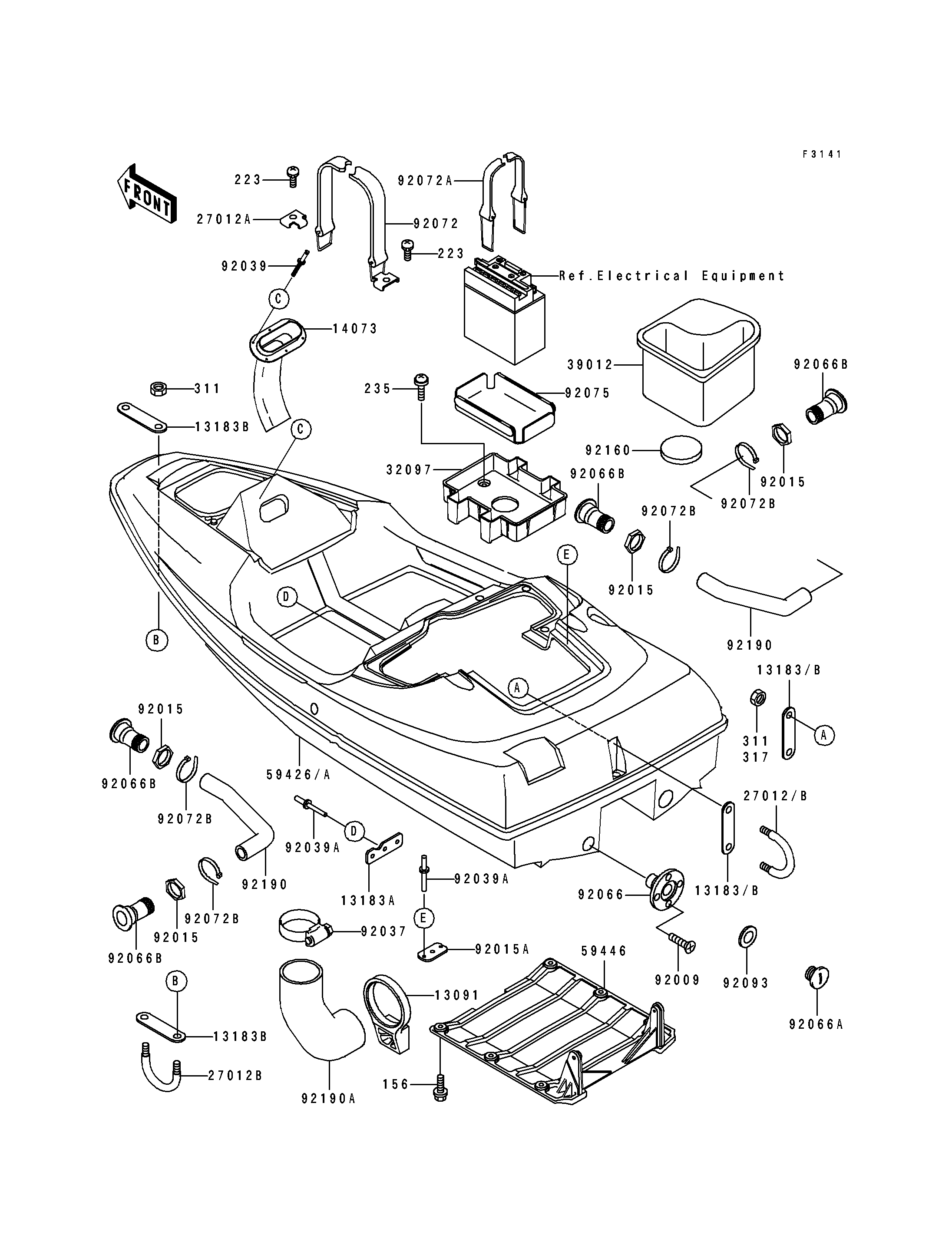

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3765 | 1 | ||
| PLATE | 13183 | 13183-3742 | 2 | ||
| PLATE | 13183A | 13183-3777 | 2 | ||
| DUCT | 14073 | 14073-3732 | 1 | ||
| HOOK | 27012 | 27012-3741 | 1 | ||
| HOOK | 27012A | 27012-3751 | 2 | ||
| CASE-BATTERY | 32097 | 32097-3703 | 1 | ||
| CASE-STORAGE | 39012 | 39012-3709 | 1 | ||
| HULL-COMP,J.WHITE | 59426A | 59426-5522-8C | 1 | US | |
| COVER-JET PUMP | 59446 | 59446-3717 | 1 | ||
| SCREW,TAPPING,4X14 | 92009 | 92009-3755 | 4 | ||
| NUT | 92015 | 92015-3772 | 4 | ||
| NUT | 92015A | 92015-3815 | 7 | ||
| CLAMP | 92037 | 92037-541 | 1 | ||
| RIVET | 92039 | 92039-3701 | 6 | ||
| RIVET,4MM | 92039A | 92039-3703 | 16 | ||
| PLUG,RR,DRAIN | 92066 | 92066-3724 | 1 | ||
| PLUG,RR,DRAIN | 92066A | 92066-3725 | 1 | ||
| PLUG,DRAIN | 92066B | 92066-3736 | 4 | ||
| BAND,FIRE EXTINGUISHER | 92072 | 92072-3752 | 2 | ||
| BAND,BATTERY | 92072A | 92072-3753 | 2 | ||
| BAND | 92072B | 92072-3778 | 4 | ||
| DAMPER,BATTERY | 92075 | 92075-3714 | 1 | ||
| SEAL | 92093 | 92093-3720 | 1 | ||
| DAMPER | 92160 | 92160-1267 | 1 | ||
| TUBE,DRAIN | 92190 | 92190-3792 | 2 | ||
| TUBE,DUCT | 92190A | 92190-3839 | 1 | ||
| BOLT-WP,6X20 | 156 | 156R0620 | 6 | ||
| SCREW-PAN-WS-CROS,6X14 | 223 | 223R0614 | 4 | ||
| SCREW-PAN-WP-CROS,6X16 | 235 | 235R0616 | 4 | ||
| NUT-HEX-SMALL | 317 | 317R0800 | 2 |
