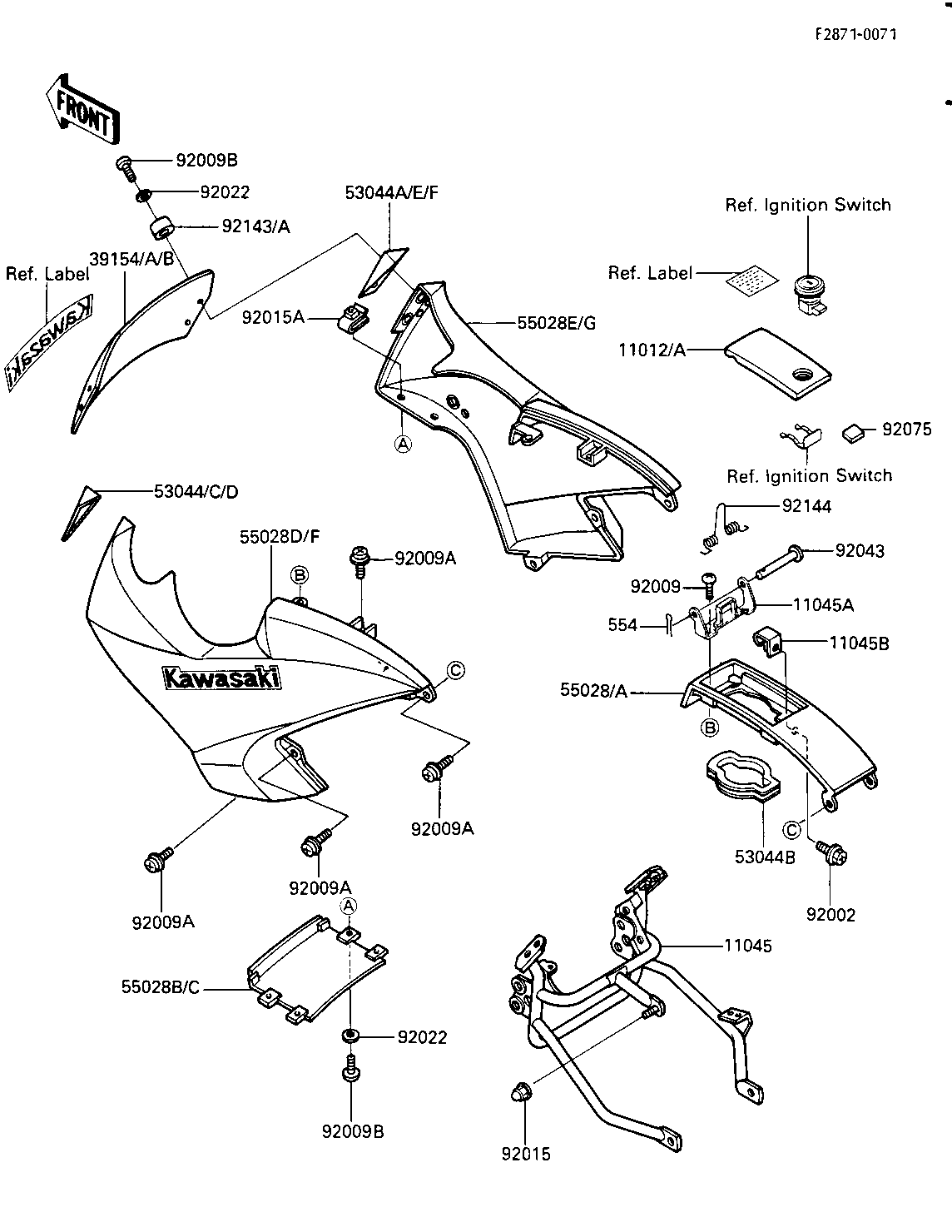

1987 Ninja® 250R - FAIRING

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,TANK CAP COVER,P. 11012 11012-1511-F1 1
CAP,TANK CAP COVER,EB 11012A 11012-1511-H8 1
BRACKET,COWLING STAY 11045 11044-1841 1
BRACKET,CAP 11045A 11044-1842 1
BRACKET,CAP LOCK 11045B 11044-1843 1
WINDSHIELD 39154 39154-1060 1 CA,US
WINDSHIELD 39154A 39154-1072 1
WINDSHIELD 39154B 39154-1072 1 CA,US
TRIM,LH 53044 53044-1153 1 CA,US
TRIM,RH 53044A 53044-1154 1 CA,US
TRIM 53044B 53044-1170 1
TRIM,MAIN COWLING,LH 53044C 53044-1187 1
TRIM,MAIN COWLING,LH 53044D 53044-1187 1 CA,US
TRIM,MAIN COWLING,RH 53044E 53044-1188 1
TRIM,MAIN COWLING,RH 53044F 53044-1188 1 CA,US
COWLING,CNT,P.WHITE 55028 55028-1115-F1 1
COWLING,LWR,P.WHITE 55028B 55028-1116-F1 1
COWLING,LWR,EBONY 55028C 55028-1116-H8 1
COWLING,MAIN,LH,EBONY 55028D 55028-5249-H8 1
COWLING,MAIN,RH,EBONY 55028E 55028-5250-H8 1
COWLING,MAIN,LH,P.WHI 55028F 55028-5303-F1 1
COWLING,MAIN,RH,P.WHI 55028G 55028-5304-F1 1
BOLT,5X12 92002 92002-1749 1
SCREW 92009 92009-1653 2
SCREW,5X14 92009A 92009-1427 8
SCREW 92009B 92009-1445 8
NUT,CAP,8MM,BLACK 92015 92015-1174 1
NUT 92015A 92015-1710 4
WASHER,NYLON,5.3X11.5 92022 92022-1521 8
PIN,4MM 92043 92043-1314 1
DAMPER 92075 92075-1865 1
COLLAR 92143 92143-1068 4
COLLAR 92143A 92143-1068 4 CA,US
SPRING,CAP RETURN 92144 92081-1986 1
PIN-SNAP 554 554A0400 1
