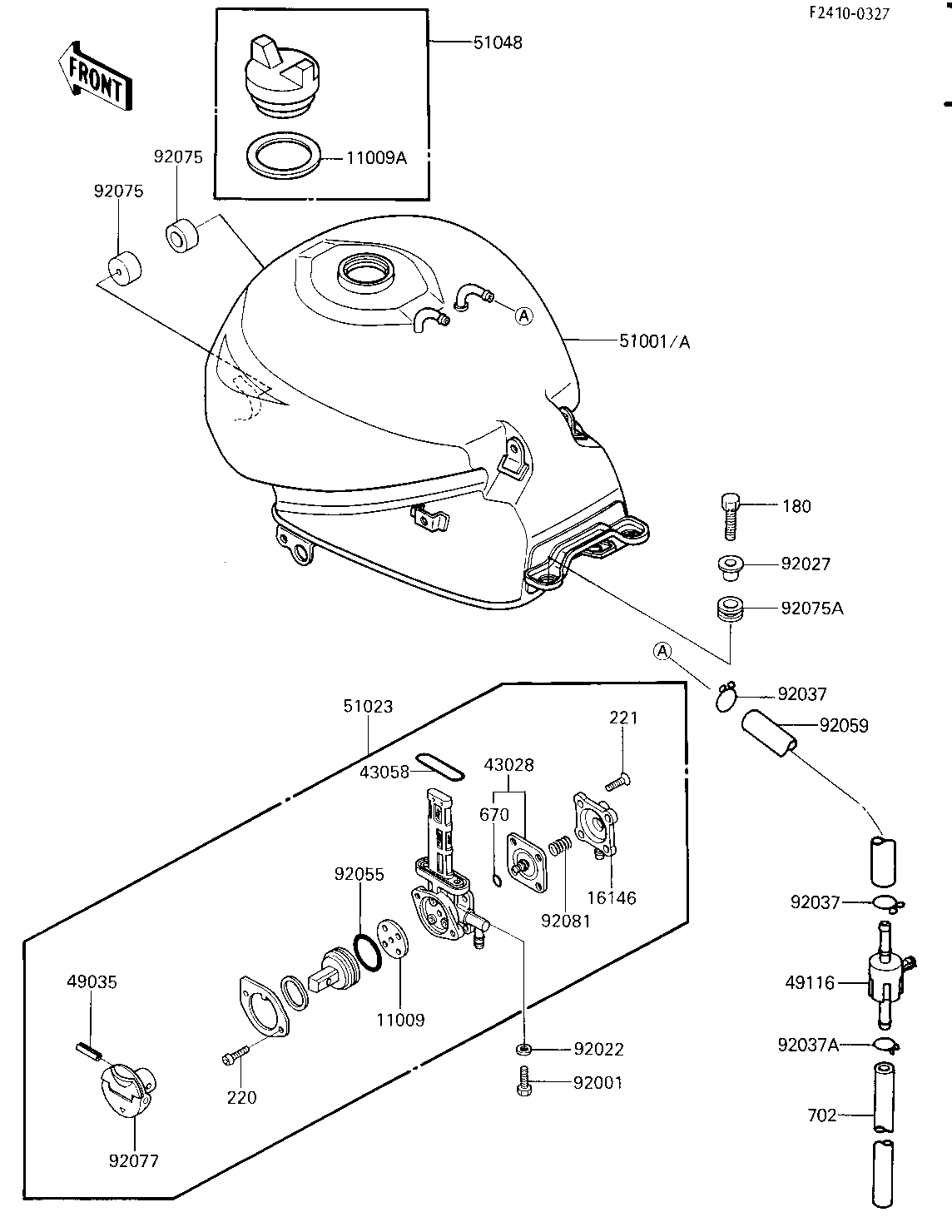

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL TAP | 11009 | 11009-1188 | 1 | ||
| COVER-ASSY,TAP DIAPHR | 16146 | 16146-1010 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1033 | 1 | ||
| "O" RING | 43058 | 51039-003 | 1 | ||
| PIN-SPRING,3.1X14 | 49035 | 49035-1053 | 1 | ||
| VALVE-ASSY,BREATHER | 49116 | 49116-1063 | 1 | US | |
| TANK-COMP-FUEL | 51001A | 51001-1252 | 1 | US | |
| TAP-ASSY,FUEL | 51023 | 51023-1125 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-1070 | 1 | ||
| BOLT,6X20,FUEL TAP | 92001 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 92022 | 92022-183 | 2 | ||
| COLLAR | 92027 | 92027-251 | 2 | ||
| CLAMP,CHAIN OILER | 92037 | 92037-147 | 2 | US | |
| CLAMP | 92037A | 92037-1610 | 1 | US | |
| "0" RING,FUEL TAP LEV | 92055 | 92055-1085 | 1 | ||
| TUBE | 92059 | 92059-1589 | 1 | US | |
| DAMPER,FUEL TANK,FRON | 92075 | 92075-1115 | 2 | ||
| DAMPER | 92075A | 92075-1690 | 2 | ||
| KNOB,FUEL TAP | 92077 | 92077-1074 | 1 | ||
| SPRING,DIAPHRAGM VALV | 92081 | 92081-1240 | 1 | ||
| BOLT-UPSET-WS,6X25 | 180 | 180B0625 | 2 | ||
| SCREW PAN HEAD 3X8 | 220 | 220B0308 | 4 | ||
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
| TUBE-RUBBER 5X400 | 702 | 702A05400 | 1 | US |
| GASKET,FUEL TAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-ASSY,TAP DIAPHR | |
| REF # | 16146 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-SPRING,3.1X14 | |
| REF # | 49035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY,BREATHER | |
| REF # | 49116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TANK-COMP-FUEL | |
| REF # | 51001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TAP-ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-TANK,FUEL | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CHAIN OILER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| "0" RING,FUEL TAP LEV | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| DAMPER,FUEL TANK,FRON | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KNOB,FUEL TAP | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,DIAPHRAGM VALV | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS,6X25 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 3X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER 5X400 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
