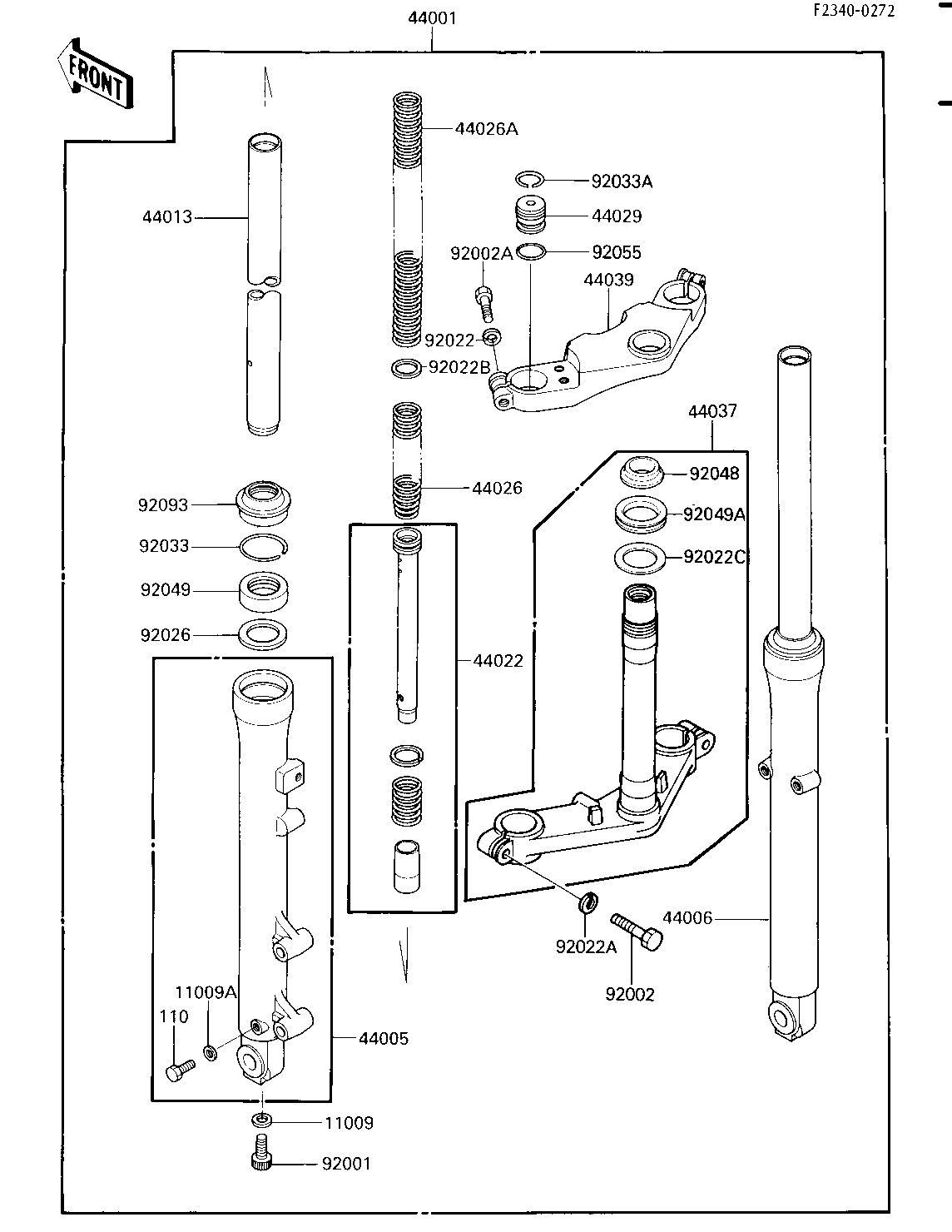

1987 Ninja® 250R - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYL BOLT 11009 44045-051 2
GASKET,DRAIN PLUG 11009A 44045-047 2
FORK-FRONT 44001 44001-1621 1
PIPE-LEFT FORK OUTER 44005 44005-1247 1
PIPE-RIGHT FORK OUTER 44006 44006-1246 1
PIPE-FORK INNER 44013 44013-1250 2
CYLINDER-FORK 44022 44022-1194 2
SPRING-FRONT FORK,LWR 44026 44026-1334 2
SPRING-FRONT FORK,UPP 44026A 44026-1335 2
SEAT-FORK SPRING 44029 44029-1124 2
HOLDER-FORK UNDER 44037 44037-1223 1
HOLDER-FORK UPPER 44039 44039-1136 1
BOLT,FORK DRAIN 92001 92001-1464 2
BOLT,10X32 92002 92002-1811 2
BOLT 92002A 92002-1812 2
WASHER,SPRING,8MM 92022 92022-1703 2
WASHER,SPRING,10MM 92022A 92022-1704 2
WASHER,SPRING JOINT 92022B 92022-1821 2
WASHER,PLAIN 92022C 92022-231 1
SPACER,OUTER TUBE 92026 92026-1275 2
RING-SNAP,FORK 92033 92033-1219 2
RING-SNAP,FORK TOP 92033A 92033-1220 2
CONE,STEERING STEM 92048 92047-012 1
SEAL-OIL,FORK 92049 92049-1268 2
OIL SEAL,STEERING STM 92049A 92056-003 1
RING-O,FORK SPRING SE 92055 92055-1359 2
SEAL,FORK 92093 92093-1230 2
BOLT HEX HEAD 6X8 110 110B0608 2
