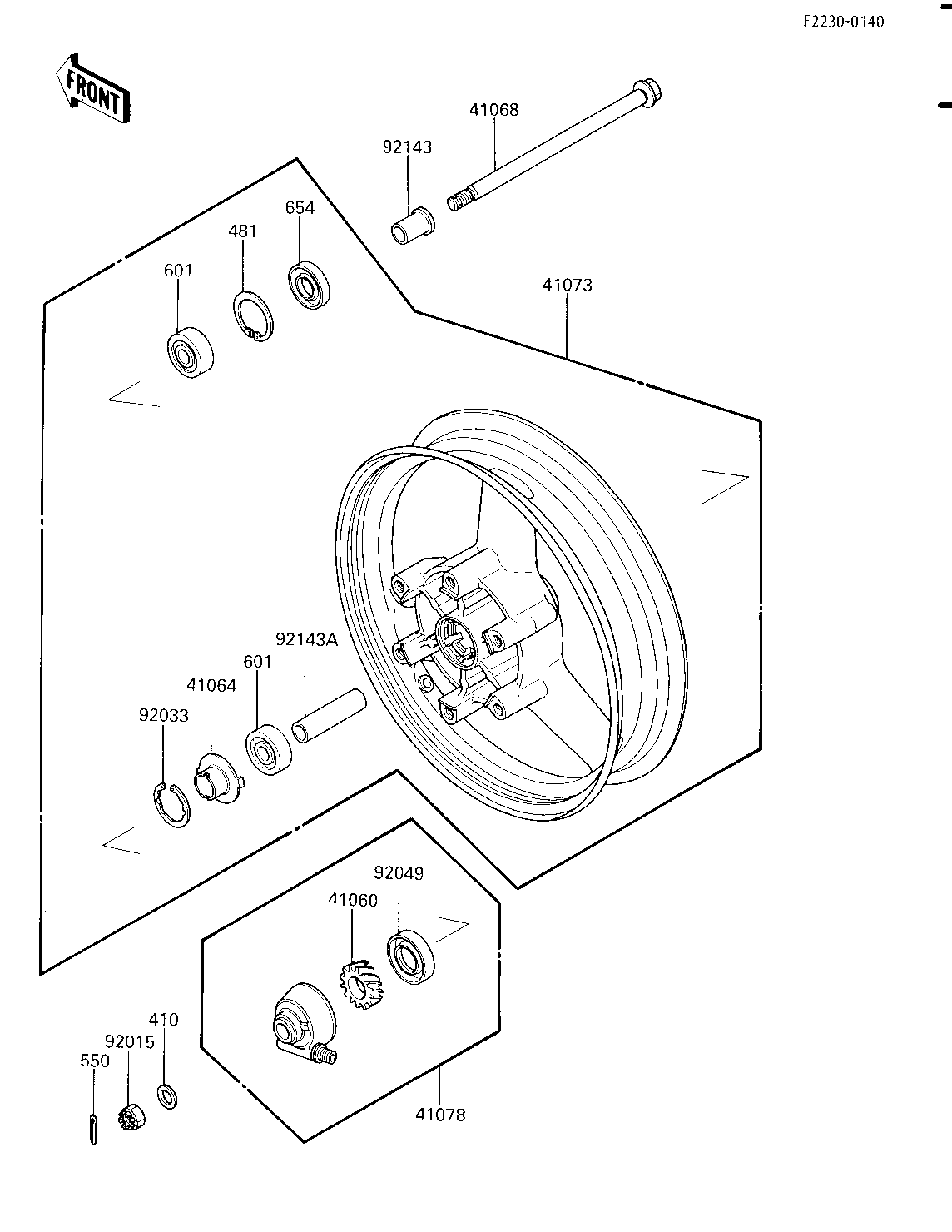

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GEAR-METER SCREW,23T | 41060 | 41060-1107 | 1 | ||
| RECEIVER,SPEEDOMETER | 41064 | 41064-1006 | 1 | ||
| AXLE,FR | 41068 | 41068-1220 | 1 | ||
| WHEEL-ASSY,FR,WHITE N | 41073 | 41073-1332-T6 | 1 | ||
| CASE-ASSY-METER GEAR | 41078 | 41078-1055 | 1 | ||
| NUT,14MM | 92015 | 42045-020 | 1 | ||
| CIRCLIP,42MM | 92033 | 92033-1041 | 1 | ||
| OIL SEAL,BJN30427-C3 | 92049 | 92049-1057 | 1 | ||
| COLLAR,L=36.5 | 92143 | 92027-1979 | 1 | ||
| COLLAR,15.2X22X60 | 92143A | 92027-1980 | 1 | ||
| WASHER PLAIN 14MM | 410 | 410B1400 | 1 | ||
| CIRCLIP,35MM | 481 | 481J3500 | 1 | ||
| PIN COTTER 3.0X25 | 550 | 550D3025 | 1 | ||
| BEARING-BALL | 601 | 601B6202UU | 2 | ||
| OIL SEAL,TCY22358 | 654 | 654A223508 | 1 |
