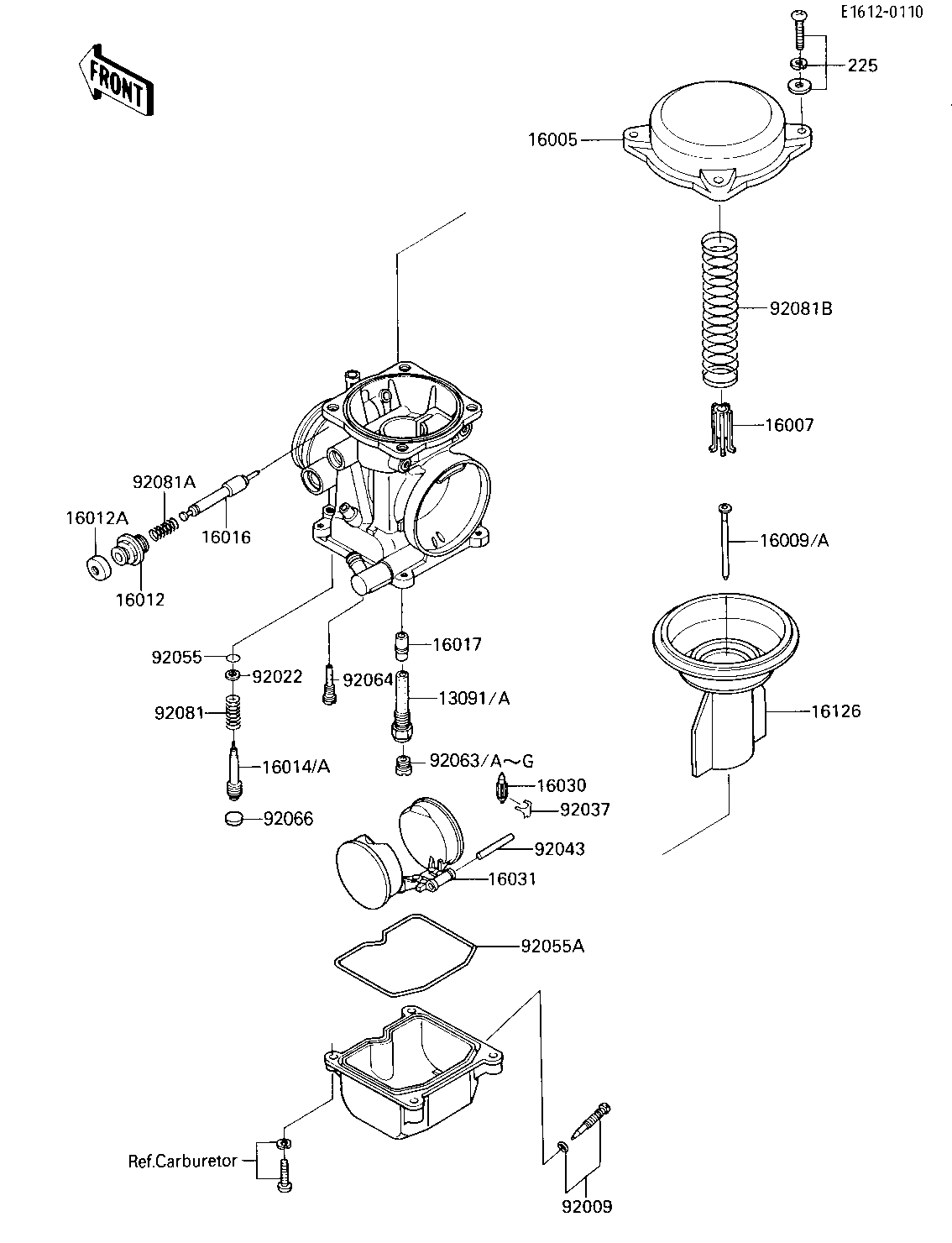

1987 Ninja® 250R - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1406 2 US
HOLDER,NEEDLE JET 13091A 13091-1425 2 CA
TOP-CHAMBER 16005 16005-1056 2
SEAT-SPRING 16007 16007-1120 2
NEEDLE-JET,LH,N52H 16009 16009-1318 1
NEEDLE-JET,RH,N52I 16009A 16009-1319 1
CAP-STARTER PLUNGER 16012 16012-1051 2
CAP-STARTER PLUNGER 16012A 16012-1052 2
SCREW,PILOT ADJUST 16014 16014-1029 2 US
SCREW-PILOT AIR 16014A 16014-1054 2 CA
PLUNGER,STARTER 16016 16016-1061 2
JET-NEEDLE 16017 16017-1286 2
FLOAT VALVE 16030 16030-1007 2
FLOAT 16031 16031-1056 2
VALVE,VACUUM 16126 16126-1160 2
SCREW,DRAIN 92009 92009-1095 2
WASHER,PLAIN 92022 92022-1003 2
CLIP,FLOAT VALVE 92037 16044-007 2
PIN,FLOAT 92043 92043-1148 2
O RING,PILOT ADJ 92055 92055-1002 2
RING-O,FLOAT CHAMBER 92055A 92055-1222 2
JET-MAIN #110 92063 92063-1114 2 US
JET-MAIN #110 92063A 92063-1114 2 CA
MAIN JET,#105 92063B 92063-1009 2 (RACING USE ONLY)
JET-MAIN,#102 92063C 92063-1115 2 CA
JET-MAIN #108 92063D 92063-1116 2 CA
JET-MAIN #112 92063F 92063-1117 2 (RACING USE ONLY)
JET-MAIN #115 92063G 92063-1118 2 US
JET-PILOT,#35 92064 92064-1101 2
PLUG,PILOT SCREW 92066 92066-1051 2
SPRING,PIROT ADJ SCRW 92081 92081-1002 2
SPRING,STARTER PLUNGE 92081A 92081-1761 2
SPRING,VACUUM VALVE 92081B 92081-1912 2
SCREW-PAN-WSP-CROS 225 225C0418 5
