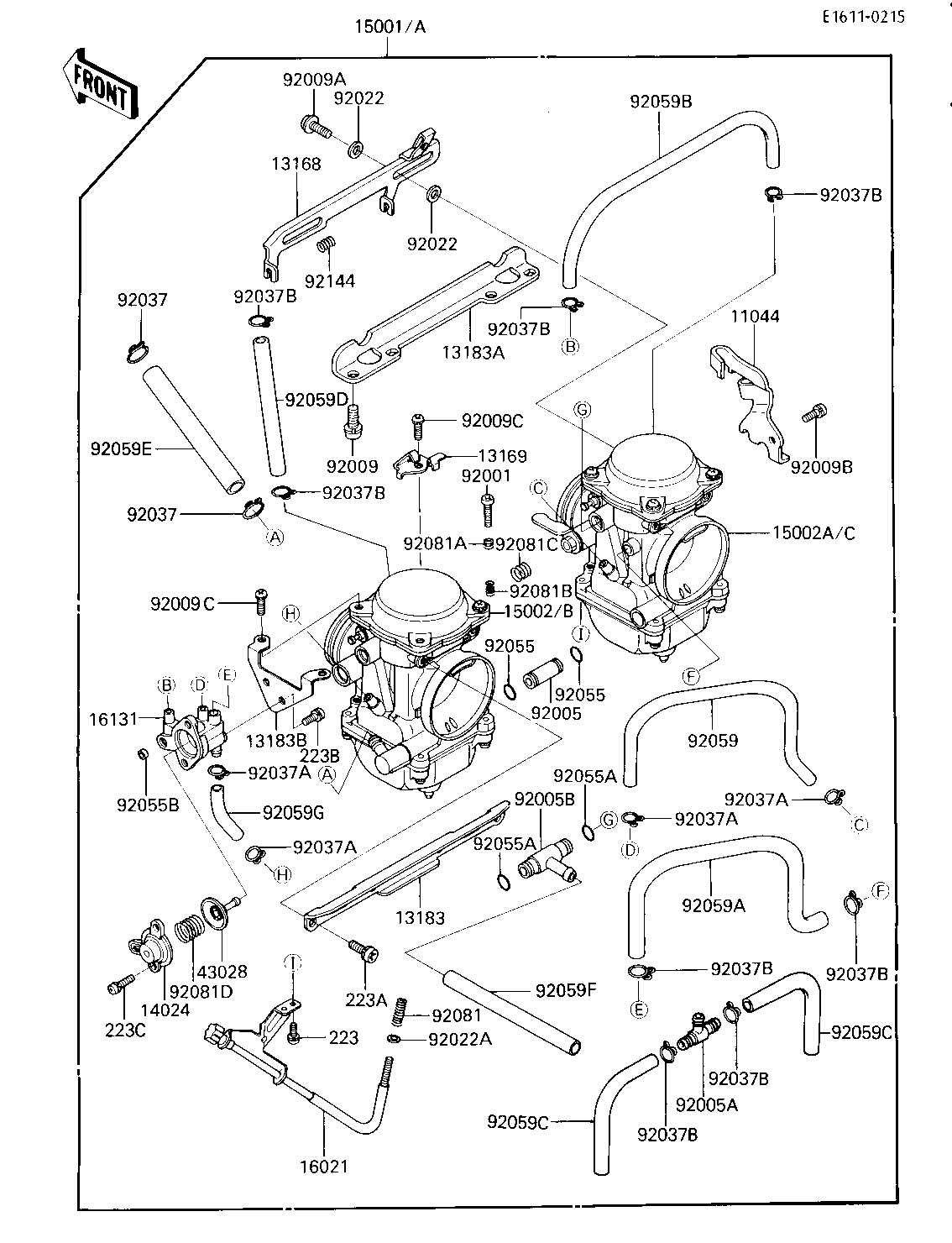

1987 Ninja® 250R - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABL 11044 11044-1061 1
LEVER,STARTER 13168 13168-1330 1
PLATE,STARTER CABLE 13169 13169-1965 1
PLATE 13183 13183-1029 1
PLATE 13183A 13183-1030 1
PLATE,AIR CUT VALVE 13183B 13183-1031 1
COVER,AIR CUT VALVE 14024 14024-1327 1
CARBURETOR-ASSY 15001 15001-1262 1 CA
CARBURETOR-ASSY 15001A 15001-1263 1 US
CARBURETOR,LH 15002 15002-1382 1 US
CARBURETOR,RH 15002A 15002-1383 1 US
CARBURETOR,LH 15002B 15002-1384 1 CA
CARBURETOR,RH 15002C 15002-1385 1 CA
SCREW-THROTTLE STOP 16021 16021-1114 1
BODY-VALVE,DIAPHRAGM 16131 16131-1062 1
DIAPHRAGM,AIR CUT VAL 43028 43028-1053 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING,FUEL,I-TYPE 92005 92005-1109 1
FITTING,FUEL,T-TYPE 92005A 92005-1112 1 CA
FITTING,T-TYPE 92005B 92005-1125 1
SCREW,6X16 92009 92009-1129 4
SCREW 92009A 92009-1262 2
SCREW 92009B 92009-1365 1
SCREW,4X18 92009C 92009-1446 3
WASHER,6.1X11X0.8,POL 92022 92022-1199 4
WASHER,PLAIN,STOP SPR 92022A 92022-1480 1
CLAMP,FUEL INLET TUBE 92037 92037-1075 2
CLAMP,TUBE,OVERFLOW 92037A 92037-1142 4
CLAMP,TUBE,OVERFLOW 92037B 92037-1142 8 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1142 6 CN,US
"O" RING 92055 92055-1004 2
RING-O,FUEL FITTING 92055A 92055-1223 2
RING-O 92055B 92055-1245 1
TUBE,3.5X6.5X180 92059 92059-1140 1
TUBE,5X9X160 92059A 92059-1201 1
TUBE,5X9X180 92059B 92059-1377 1 US
TUBE,5X9X90 92059C 92059-1627 2 CA
TUBE,5X9X120 92059D 92059-1713 1
TUBE,7.3X12.5X170 92059E 92059-1719 1
TUBE,6.5X9.5X230 92059F 92059-1720 1
TUBE 92059G 92059-1722 1
SPRING,THROTTLE STOP 92081 92081-1617 1
SPRING,THROTTLE ADJUS 92081A 92081-1620 1
SPRING,THROTTLE ADJUS 92081B 92081-1621 1
SPRING,THROTTLE ADJUS 92081C 92081-1622 1
SPRING,AIR CUT VALVE 92081D 92081-1719 1
SPRING,STARTER LEVER 92144 92144-1048 1
SCREW-PAN-WS-CROS 223 223C0416 8
SCREW-PAN-WS-CROS 223A 223C0510 4
SCREW-PAN-WS-CROS 223B 223D0408 2
SCREW-PAN-WS-CROS 223C 223D0410 2
