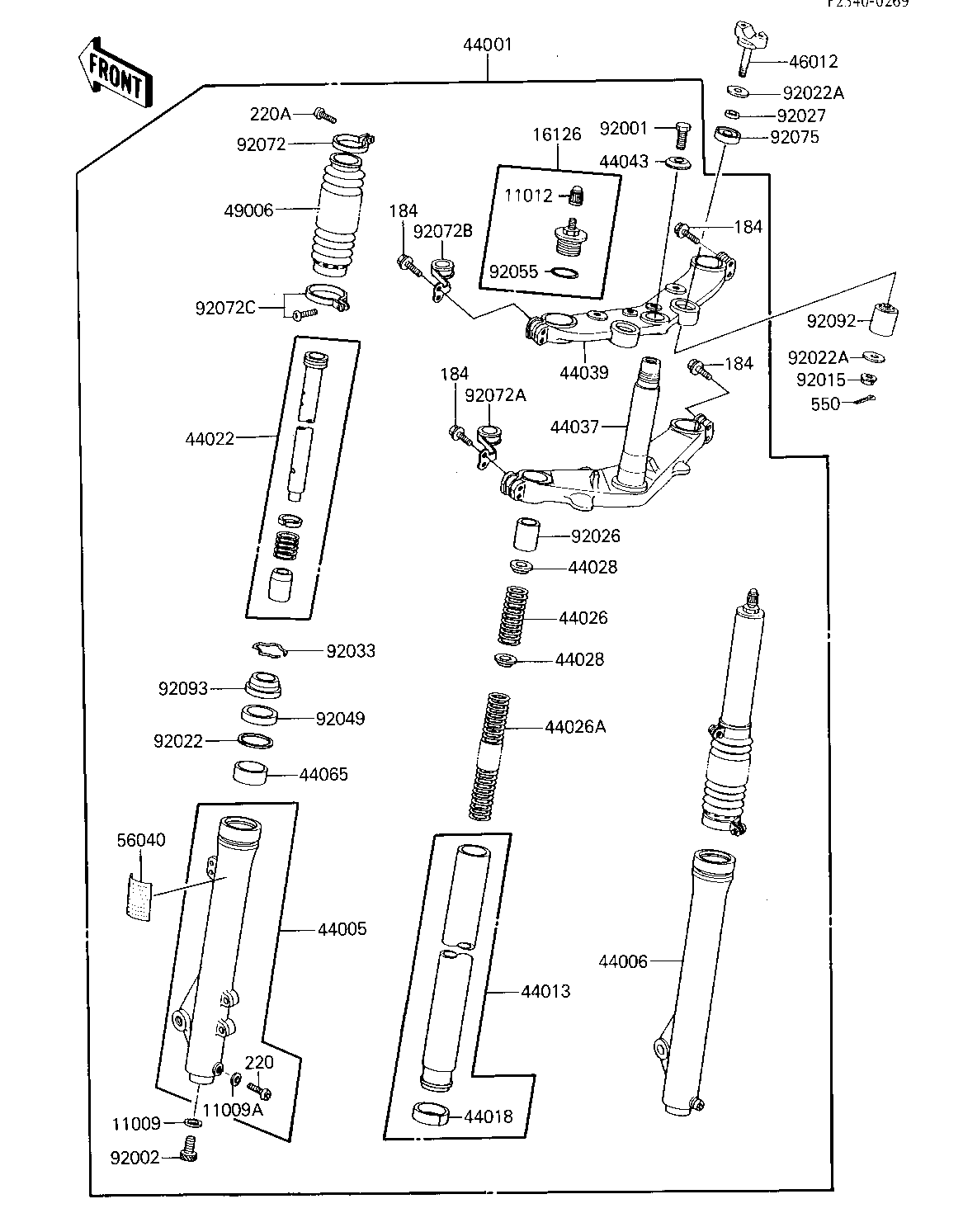

1986 Tecate - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLU 11009 11009-1553 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
CAP,VALVE AIR 11012 11012-1391 2
VALVE 16126 16126-1147 2
FORK-FRONT 44001 44001-1602 1
PIPE-LEFT FORK OUTER 44005 44005-1237 1
PIPE-RIGHT FORK OUTER 44006 44006-1237 1
PIPE-FORK INNER 44013 44013-1235 2
PISTON-FORK,INNER PIP 44018 44018-1051 2
CYLINDER-FORK 44022 44022-1184 2
SPRING-FRONT FORK,UPP 44026 44026-1310 2
SPRING-FRONT FORK,LWR 44026A 44026-1311 2
GUIDE-FORK SPRING 44028 44028-1056 4
HOLDER-FORK UNDER 44037 44037-1190 1
HOLDER-FORK UPPER 44039 44039-1128 1
WASHER 44043 44043-052 1
BUSHING,FRONT FORK 44065 44065-1064 2
HOLDER-HANDLE,LWR 46012 46012-1124 2
BOOT,FORK 49006 49006-1182 2
LABEL,FRONT FORK 56040 56040-1120 1
BOLT,FORK TOP 92001 44041-065 1
BOLT,FORK DRAIN 92002 92002-1650 2
NUT,LOCK,10MM 92015 92019-021 2
WASHER,FORK OUTER TUB 92022 92022-1298 2
WASHER-HANDLEBAR FIT 92022A 92022-196 4
SPACER 92026 92026-1262 2
COLLAR,10.5X15.1X6 92027 92027-1850 2
CIRCLIP 92033 92033-1036 2
SEAL-OIL,FORK 92049 92049-1245 2
RING-O 92055 92055-1321 2
BAND,BOOT 92072 92072-1077 2
BAND 92072A 92072-1166 1
BAND 92072B 92072-1204 1
BAND 92072C 92072-1206 2
DAMPER,HANDLE HOLDER 92075 92075-1725 2
BUSHING-RUBBER 92092 92092-1053 2
SEAL,FORK 92093 92093-1206 2
BOLT-UPSET-WP-SMALL 184 184G0840 8
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW PAN HEAD 4X16 220A 220B0416 2
PIN COTTER 2.0X20 550 550D2020 2
