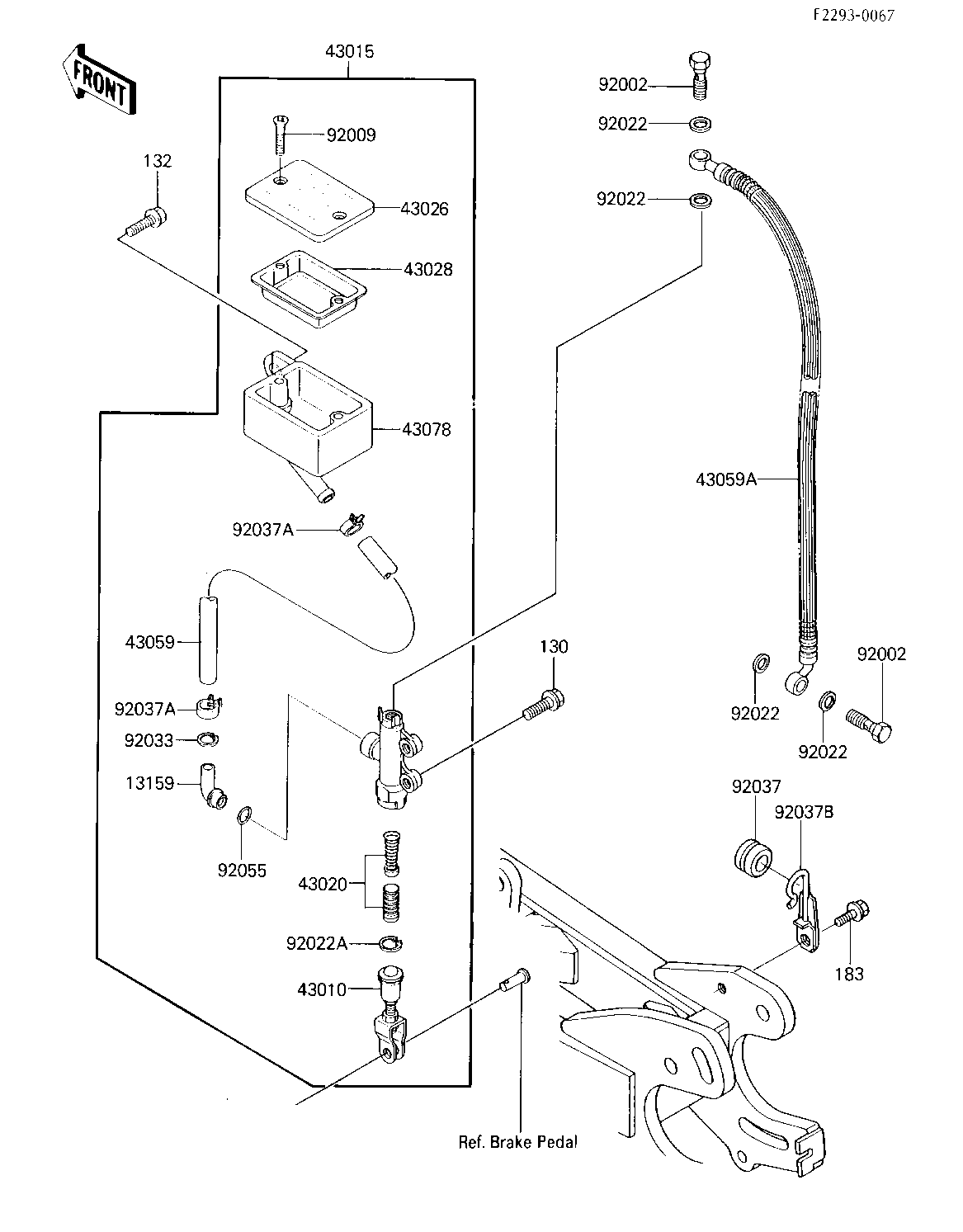

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CONNECTOR,RR MASTER C | 13159 | 13159-1052 | 1 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-1057 | 1 | ||
| CYLINDER-ASSY-MASTER, | 43015 | 43015-1305 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1061 | 1 | ||
| CAP-BRAKE,MASTER CYLI | 43026 | 43026-1021 | 1 | ||
| DIAPHRAGM,MASTER CYLI | 43028 | 43028-1035 | 1 | ||
| HOSE-BRAKE,RR MASTER | 43059 | 43059-1322 | 1 | ||
| HOSE-BRAKE,RR | 43059A | 43059-1351 | 1 | ||
| RESERVOIR | 43078 | 43078-1066 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| SCREW | 92009 | 92009-1409 | 2 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
| WASHER | 92022A | 92022-1601 | 1 | ||
| RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
| DAMPER RUBBER | 92037 | 43064-007 | 1 | ||
| CLAMP | 92037A | 92037-1547 | 2 | ||
| CLAMP,BRAKE HOSE | 92037B | 92037-4014 | 1 | ||
| RING-O | 92055 | 92055-1251 | 1 | ||
| BOLT,FLANGED,8X20 | 130 | 130G0820 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0620 | 1 | ||
| BOLT-UPSET-WS-SMALL | 183 | 183B0816 | 1 |
| CONNECTOR,RR MASTER C | |
| REF # | 13159 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-BRAKE | |
| REF # | 43010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ASSY-MASTER, | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BRAKE,MASTER CYLI | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,MASTER CYLI | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,RR MASTER | |
| REF # | 43059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,RR | |
| REF # | 43059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-OIL BOLT | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20.5MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS-SMALL | |
| REF # | 183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
