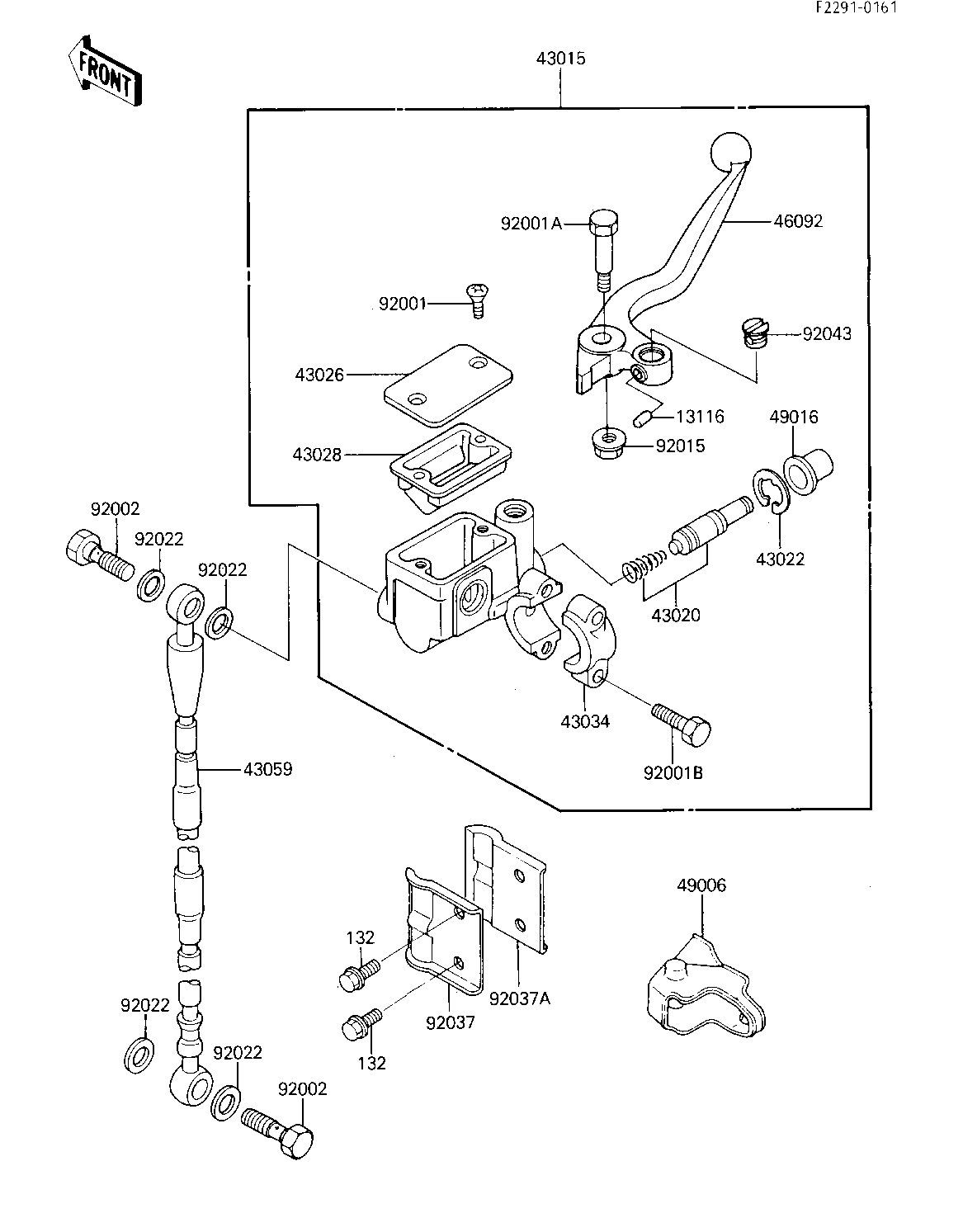

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROD-PUSH | 13116 | 13116-1116 | 1 | ||
| CYLINDER-ASSY-MASTER, | 43015 | 43015-1287 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1060 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE,MASTER CYLI | 43026 | 43026-1021 | 1 | ||
| DIAPHRAGM,MASTER CYLI | 43028 | 43028-1035 | 1 | ||
| HOLDER-BRAKE,MASTER C | 43034 | 43034-1016 | 1 | ||
| HOSE-BRAKE,FR | 43059 | 43059-1337 | 1 | ||
| LEVER-GRIP,FR BRAKE | 46092 | 46092-1118 | 1 | ||
| BOOT,BRAKE LEVER | 49006 | 49006-1090 | 1 | ||
| COVER-SEAL,MASTER CYL | 49016 | 49016-1044 | 1 | ||
| BOLT,MASTER CYLINDER | 92001 | 92001-1727 | 2 | ||
| BOLT,FRONT BRAKE LEVE | 92001A | 92001-1728 | 1 | ||
| BOLT,6X25,BLACK | 92001B | 92001-1729 | 2 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
| WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
| CLAMP,BRAKE HOSE,OUTS | 92037 | 92037-1362 | 1 | ||
| CLAMP,BRAKE HOSE,INSI | 92037A | 92037-1363 | 1 | ||
| PIN | 92043 | 92043-1286 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0614 | 2 |
