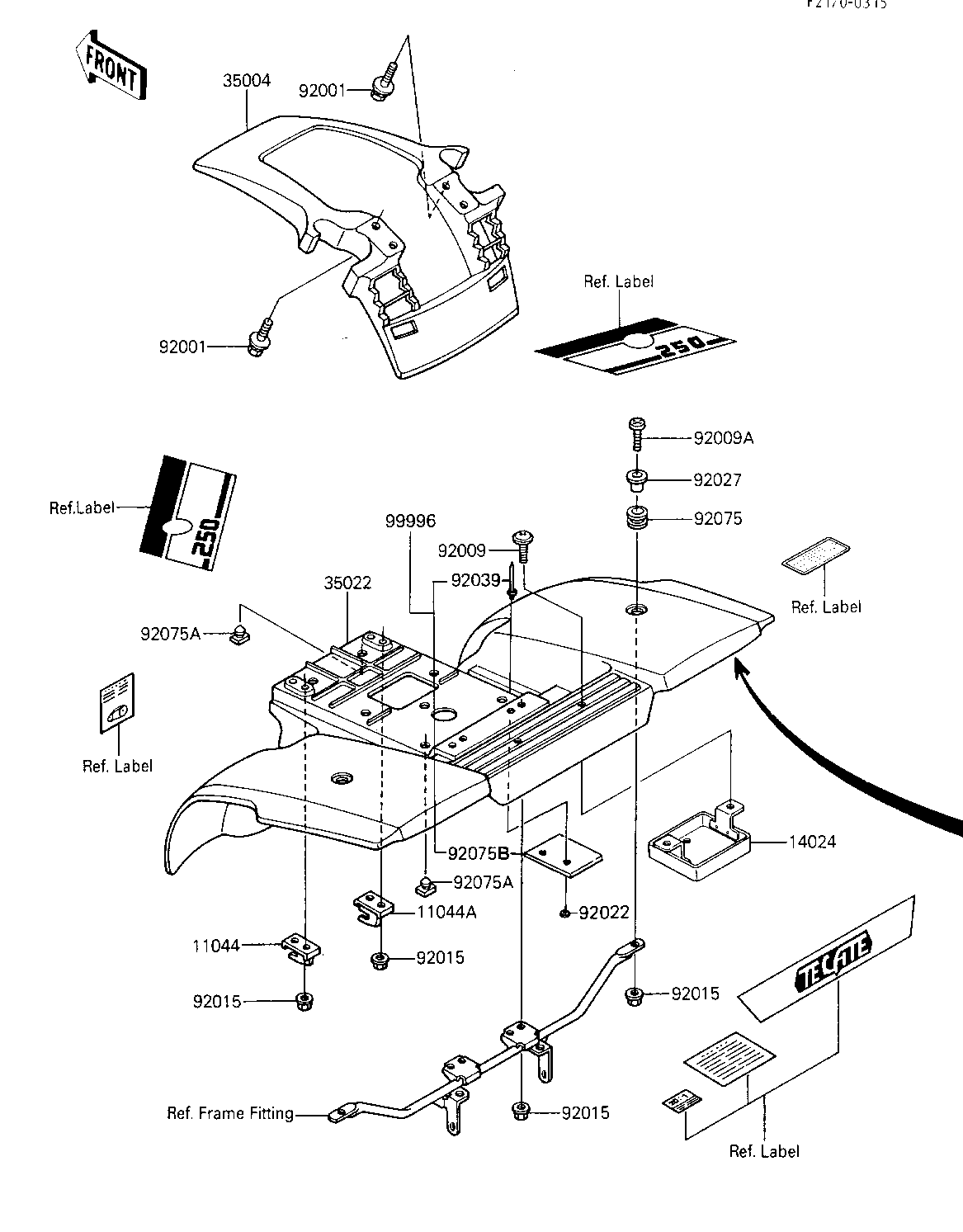

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REAR FENDER,F | 11044 | 11044-1798 | 1 | ||
| BRACKET,REAR FENDER,F | 11044A | 11044-1809 | 1 | ||
| COVER | 14024 | 14024-1287 | 1 | ||
| FENDER-FRONT | 35004 | 35004-1181-6W | 1 | ||
| FENDER-COMP RR L GREN | 35022 | 35022-1230-6W | 1 | ||
| BOLT,W/SP,6X16 | 92001 | 92001-1763 | 4 | ||
| SCREW,6X14 | 92009 | 92009-1287 | 2 | ||
| SCREW,6X22 | 92009A | 92009-1347 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 10 | ||
| WASHER | 92022 | 92022-4017 | 2 | ( JKAXTMB1 GB500938 - ) | |
| COLLAR | 92027 | 92027-1045 | 2 | ||
| RIVET | 92039 | 92039-4006 | 2 | ( JKAXTMB1 GB500938 - ) | |
| DAMPER RUBBER,CASE | 92075 | 92075-222 | 2 | ||
| DAMPER,SEAT | 92075A | 92075-1153 | 7 | ||
| DAMPER | 92075B | 92075-1868 | 1 | ( JKAXTMB1 GB500938 - ) | |
| KIT,DAMPER,KXT250B1 | 99996 | 99996-1093 | 1 | ( - JKAXTMB1 BG500937 ) |
