Parts Diagrams |

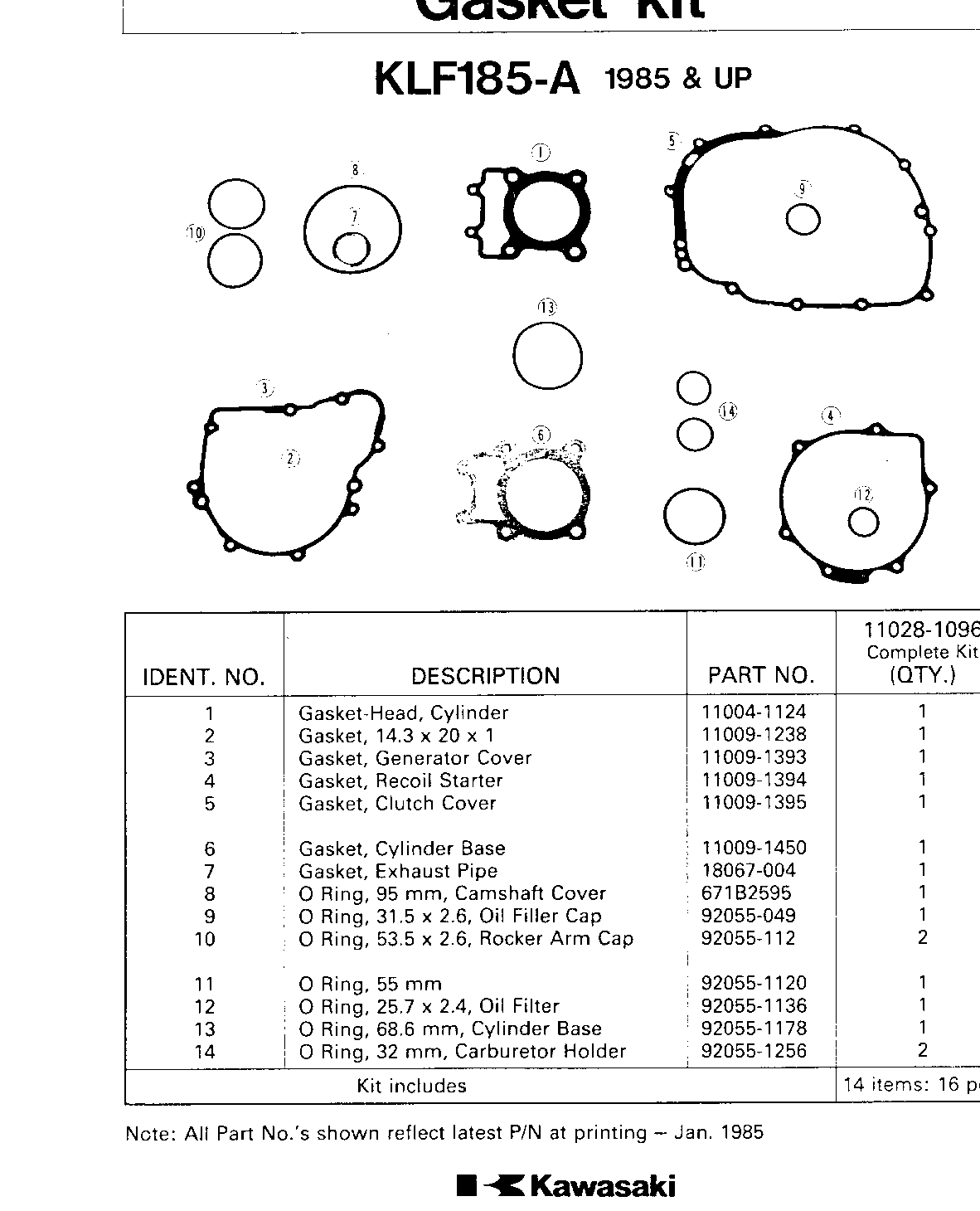

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 1 | 11004-1124 | 1 | ||
| GASKET,TENSIONER | 2 | 11009-1238 | 1 | ||
| GASKET,GENERATOR COVE | 3 | 11009-1393 | 1 | ||
| GASKET,RECOIL STARTER | 4 | 11009-1394 | 1 | ||
| GASKET,CLUTCH COVER | 5 | 11009-1395 | 1 | ||
| GASKET,CYLINDER BASE | 6 | 11009-1450 | 1 | ||
| GASKET,EXHAUST PIPE H | 7 | 11009-1866 | 1 | ||
| "0" RING,95MM | 8 | 671B2595 | 1 | ||
| "0" RING,31MM | 9 | 92055-049 | 1 | ||
| "0" RING,53.5MM | 10 | 92055-112 | 1 | ||
| RING-0,55MM | 11 | 92055-1120 | 1 | ||
| RING-O,25.7X2.4 | 12 | 92055-1136 | 1 | ||
| RING-O,68.6MM | 13 | 92055-1178 | 1 | ||
| RING-O,32MM | 14 | 92055-1256 | 1 |
| GASKET-HEAD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TENSIONER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COVE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,RECOIL STARTER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH COVER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE H | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,95MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,31MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,53.5MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-0,55MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,25.7X2.4 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,68.6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,32MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
