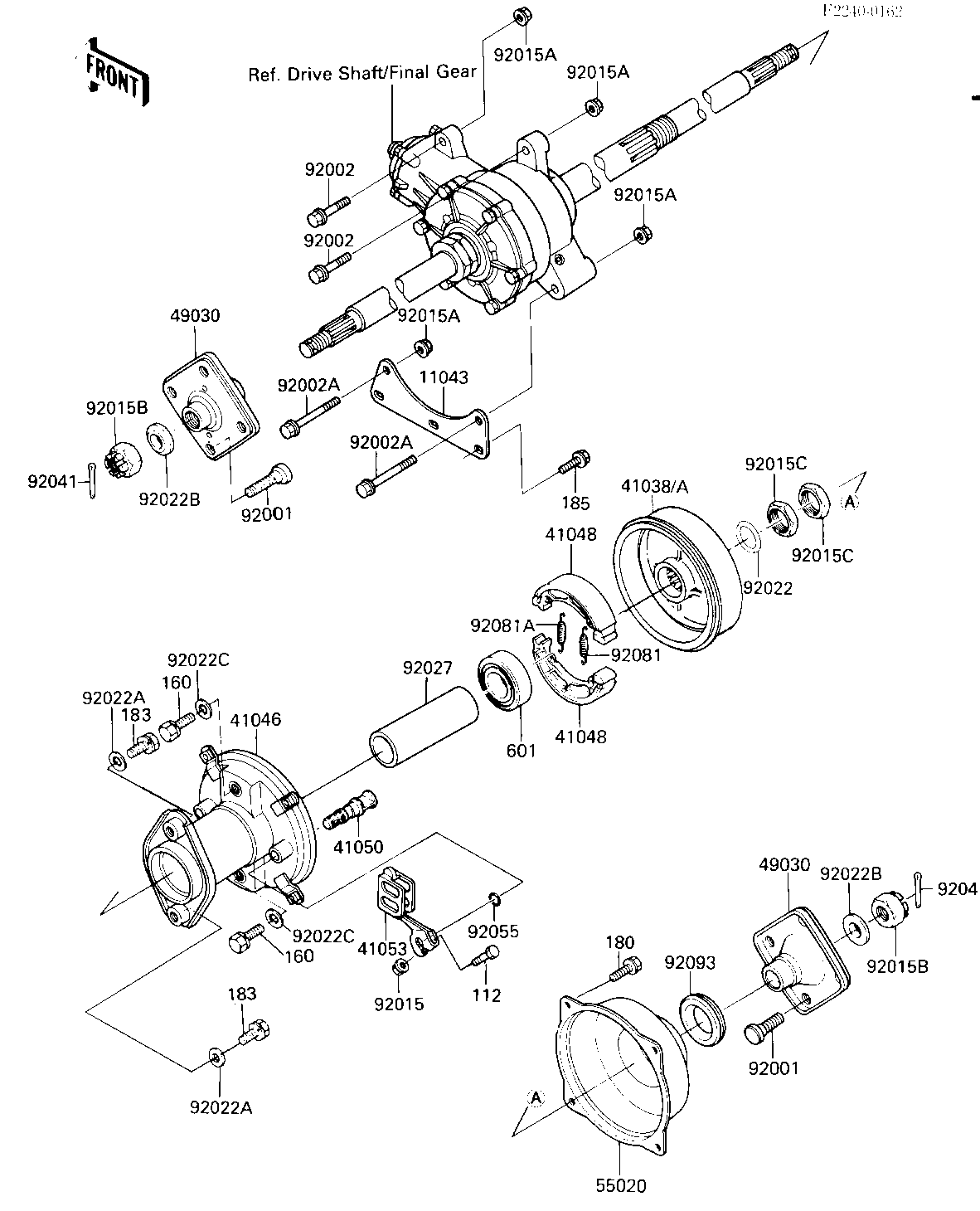

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11043 | 11043-1550 | 1 | ||
| DRUM,REAR BRAKE | 41038A | 41038-1174 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-1056 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1088 | 2 | ||
| CAM SHAFT,REAR BRAKE | 41050 | 42026-026 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-4004 | 1 | ||
| HUB-RR.G.SILVER | 49030 | 49030-1075-F2 | 2 | ||
| GUARD,RR-BRAKE-DRUM | 55020 | 55020-4036 | 1 | ||
| BOLT,LUG | 92001 | 92001-4006 | 8 | ||
| BOLT,FLANGED,10X38 | 92002 | 92002-1313 | 2 | ||
| BOLT,FLANGED,10X70 | 92002A | 92002-1315 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 1 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1428 | 4 | ||
| NUT CASTLE,18MM | 92015B | 42045-018 | 2 | ||
| NUT,LOCK,32MM | 92015C | 92015-1493 | 2 | ||
| WASHER,32.5X43X2.3 | 92022 | 92022-1225 | 1 | ||
| WASHER,9X24X3.2 | 92022A | 92022-1295 | 2 | ||
| WASHER,18.3X34X4.5 | 92022B | 92022-1658 | 2 | ||
| WASHER,12.5X28X4.5 | 92022C | 92022-4037 | 2 | ||
| COLLAR,RR HUB,L=124.5 | 92027 | 92027-1758 | 1 | ||
| COTTER,4.0X35 | 92041 | 92041-1053 | 2 | ||
| "0" RING,11MM | 92055 | 92055-004 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1550 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1766 | 1 | ||
| SEAL | 92093 | 92093-4008 | 1 | ||
| BOLT-UPSET | 112 | 112H0640 | 1 | ||
| BOLT-FINE-WS | 160 | 160H1225 | 2 | ||
| BOLT-UPSET-WS | 180 | 180D0612 | 4 | ||
| BOLT-UPSET-WS-SMALL | 183 | 183H0814 | 2 | ||
| BOLT-UPSET-WSP-SMALL | 185 | 185H0818 | 3 | ||
| BEARING-BALL | 601 | 601A6007UU | 1 |
