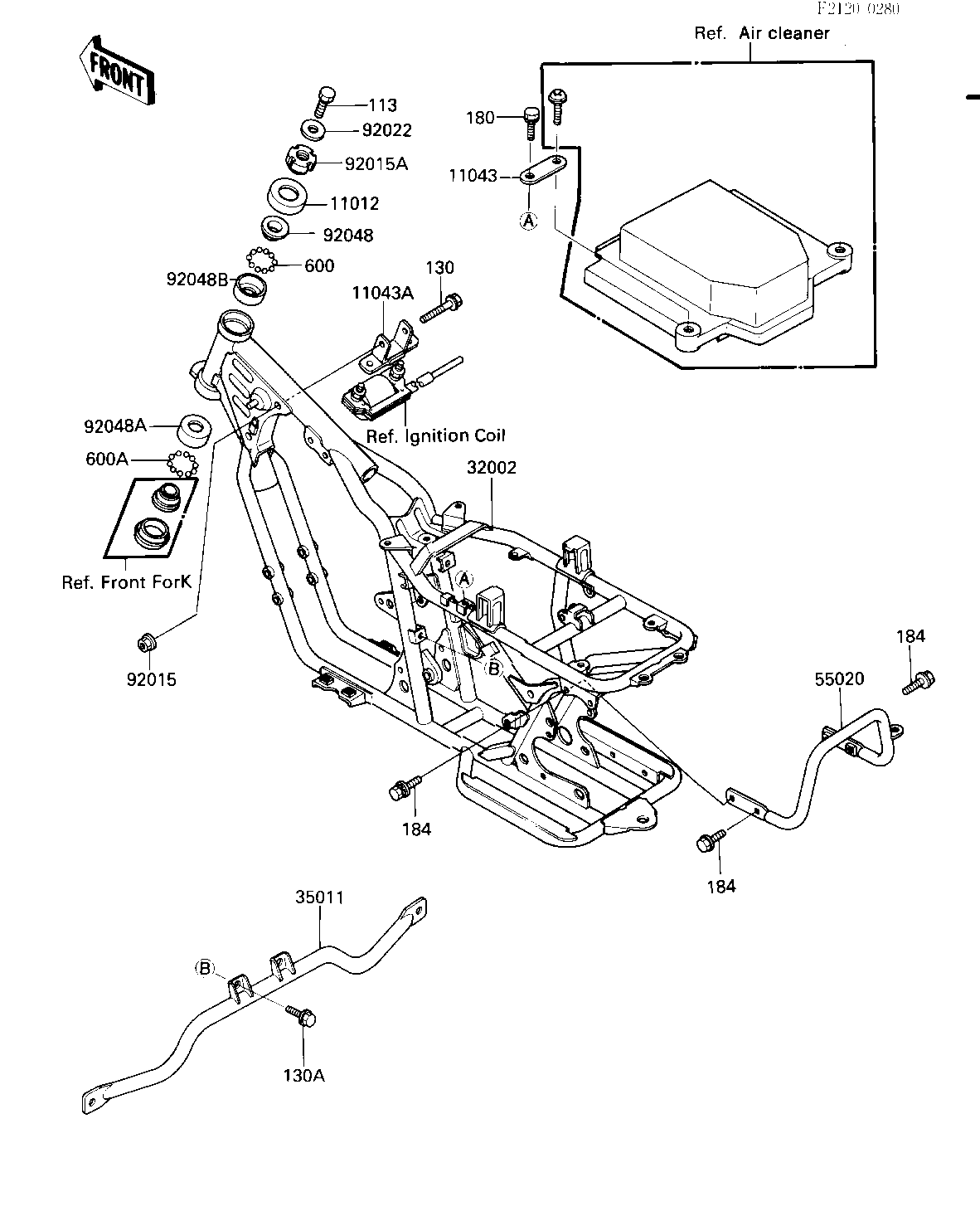

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 46098-012 | 1 | ||
| BRACKET,AIR FILTER,LH | 11043 | 11043-1540 | 1 | ||
| BRACKET,IGNITION COIL | 11043A | 11043-1773 | 1 | ||
| FRAME-COMP | 32002 | 32002-1848 | 1 | ||
| STAY,REAR FENDER | 35011 | 35011-1281 | 1 | ||
| GUARD | 55020 | 55020-4017 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 1 | ||
| NUT,STEERING STEM | 92015A | 92015-4007 | 1 | ||
| WASHER,10.5X35X4,BLAC | 92022 | 92022-4028 | 1 | ||
| CONE,STRG STM BRG,UP | 92048 | 92047-014 | 1 | ||
| RACE STEERING BEARING | 92048A | 92048-005 | 1 | ||
| RACE,STRG STM BEARING | 92048B | 92048-009 | 1 | ||
| BOLT-SMALL-FINE,12X25 | 113 | 113J1225 | 1 | ||
| BOLT-FLANGED,6X45 | 130 | 130B0645 | 1 | ||
| BOLT-FLANGED,6X10,BLA | 130A | 130C0610 | 2 | ||
| BOLT 6X12 | 180 | 180B0612 | 1 | ||
| BOLT-UPSET-WP-SMALL | 184 | 184J0820 | 4 | ||
| BALL STEEL 3/16' | 600 | 600A0600 | 23 | ||
| BALL STEEL 1/4' | 600A | 600A0800 | 19 |
| CAP,STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR FILTER,LH | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IGNITION COIL | |
| REF # | 11043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X35X4,BLAC | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONE,STRG STM BRG,UP | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE STEERING BEARING | |
| REF # | 92048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STRG STM BEARING | |
| REF # | 92048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-FINE,12X25 | |
| REF # | 113 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X45 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10,BLA | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X12 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP-SMALL | |
| REF # | 184 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/16' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 23 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 600A |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
