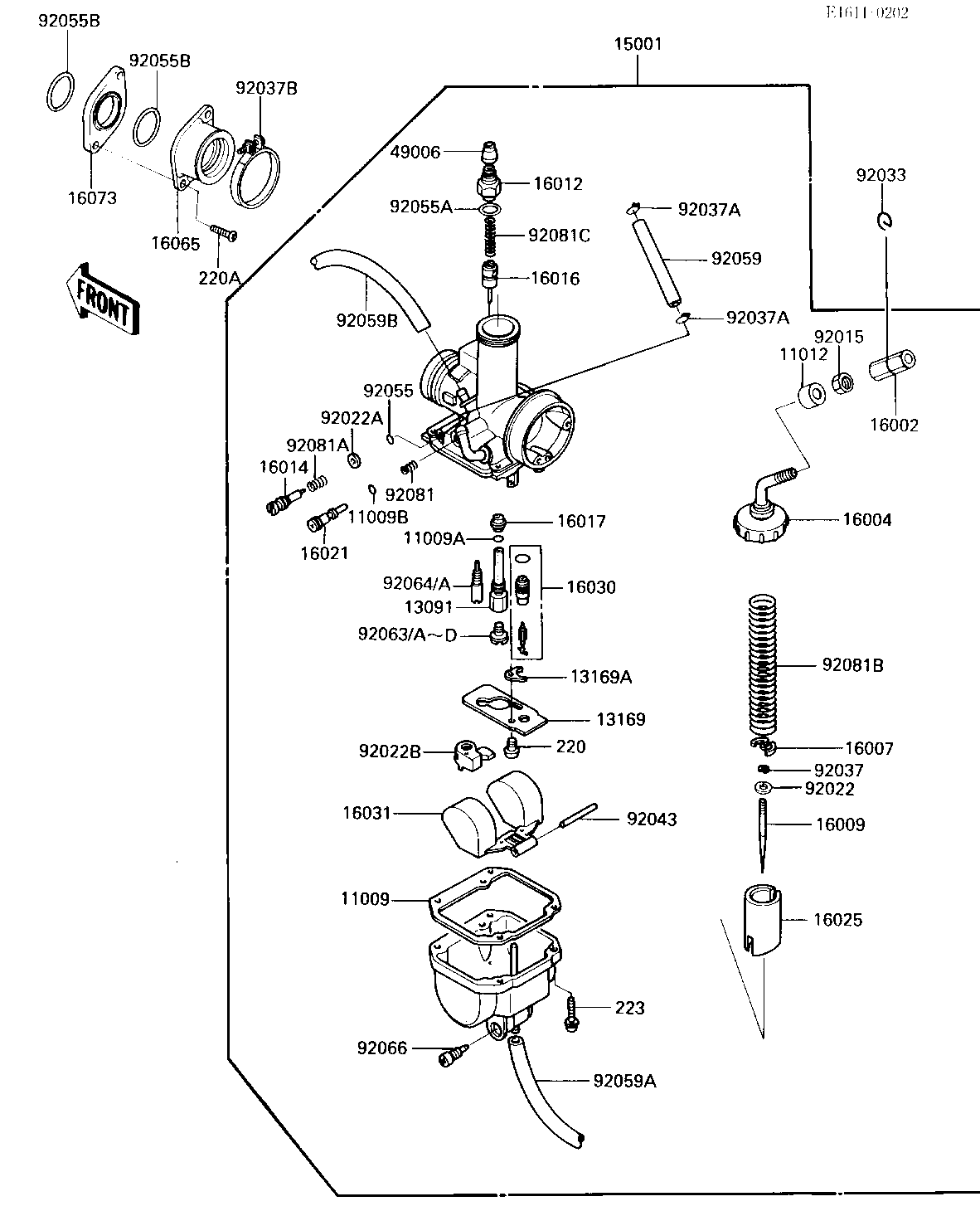

1987 KLT185 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1409 1
"0" RING,MAIN JET COV 11009A 16038-016 1
"O" RING 11009B 16038-022 1
CAP,CHAMBER CAP 11012 11012-1389 1
HOLDER,NEEDLE JET 13091 13091-1348 1
PLATE,FLOAT CHAMBER 13169 13169-1808 1
PLATE,LOCK 13169A 13169-1809 1
CARBURETOR-ASSY 15001 15001-1192 1
ADJUSTER,CABLE 16002 16002-1006 1
CAP-CHAMBER 16004 16004-1052 1
SEAT-SPRING,THROTTLE 16007 16007-1111 1
NEEDLE-JET,5J16-3 16009 16009-1288 1
CAP-STARTER PLUNGER 16012 16012-1056 1
SCREW-PILOT AIR 16014 16014-1052 1
PLUNGER,STARTER 16016 16016-1056 1
JET-NEEDLE,0-2 16017 16017-1244 1
SCREW-THROTTLE STOP 16021 16021-1111 1
VALVE-THROTTLE,CA3.5 16025 16025-1117 1
VALVE-FLOAT,#1.6 16030 16030-1062 1
FLOAT 16031 16031-1055 1
HOLDER-CARBURETOR 16065 16065-1109 1
INSULATOR 16073 16073-1053 1
BOOT,STARTER PLUNGER 49006 49006-1164 1
NUT,CABLE ADJUST LOCK 92015 92015-1575 1
WASHER,THROTTLE VALVE 92022 92022-1024 1
WASHER,PILOT SCREW 92022A 92022-1187 1
WASHER,NEEDLE JET 92022B 92022-1530 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CLAMP-PIPE 92037A 92037-072 2
CLAMP 92037B 92037-1326 1
FLOAT PIN 92043 16032-003 1
"0" RING,PILOT SCREW 92055 92055-1078 1
RING-O,STARTER PLUNGE 92055A 92055-1252 1
RING-O,32MM 92055B 92055-1256 2
TUBE,5.3X10.5X120 92059 92059-1489 1
TUBE,3X5X400 92059A 92059-1653 1
TUBE,5X8X270 92059B 92059-1491 1
JET-MAIN NO 112.5R 92063 92063-075 1
JET-MAIN NO 115R 92063A 92063-076 1 (RACING USE ONLY)
JET-MAIN NO 117.5R 92063B 92063-077 1
MAIN JET NO 120R 92063C 92063-078 1 (RACING USE ONLY)
JET-MAIN,#A122.5 92063D 92063-1101 1 (RACING USE ONLY)
JET-PILOT,#22.5 92064 92064-1114 1
(RACING USE ONLY)JET-PILOT,#20 92064A 92064-1121 1
PLUG,DRAIN 92066 92066-1171 1
SPRING,AIR SCREW 92081 92081-1153 1
SPRING,PILOT AIR SCRE 92081A 92081-1690 1
SPRING,THROTTLE VALVE 92081B 92081-1691 1
SPRING,STARTER PLUNGE 92081C 92081-1705 1
SCREW-PAN-HEAD 3X6 220 220B0306 1
SCREW-PAN-CROS, 6X20 220A 220C0620 2
SCREW PAN WS CROS 223 223B0416 4
