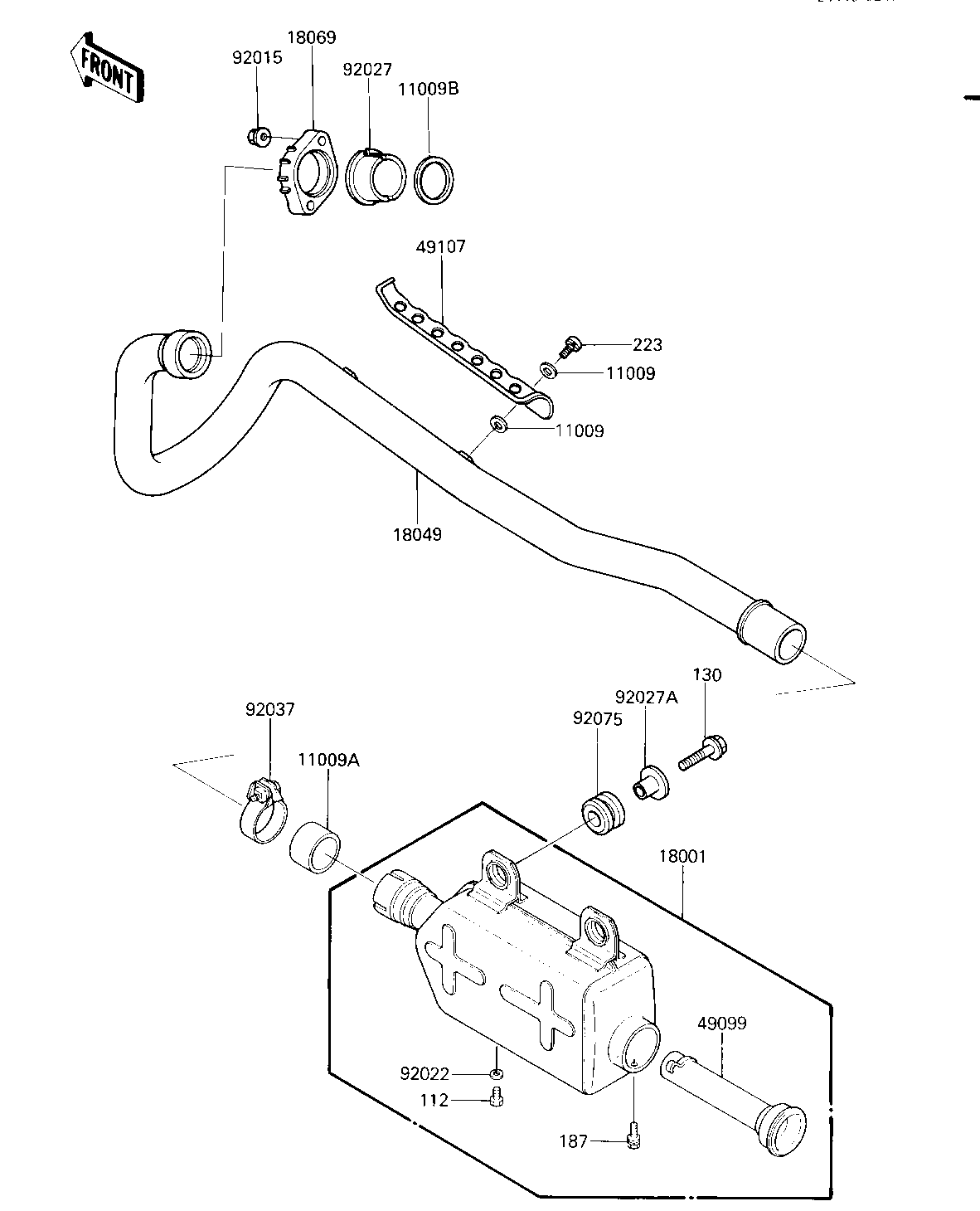

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,6.2X11.5X1.5 | 11009 | 11060-1109 | 4 | ||
| GASKET,EXHAUST PIPE C | 11009A | 11009-1667 | 1 | ||
| GASKET,EXHAUST PIPE H | 11009B | 11009-1866 | 1 | ||
| MUFFLER | 18001 | 18001-1593 | 1 | ||
| PIPE-EXAUST | 18049 | 18049-1351 | 1 | ||
| HOLDER,EXHAUST PIPE | 18069 | 18069-1006 | 1 | ||
| BAFFLE-PIPE MUFFLER | 49099 | 49099-1200 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1055 | 1 | ||
| NUT,6MM | 92015 | 92015-1365 | 2 | ||
| WASHER,PLAIN | 92022 | 92022-304 | 1 | ||
| COLLAR,EXHAUST PIPE | 92027 | 92027-1142 | 2 | ||
| COLLAR,MUFFLER | 92027A | 92027-1981 | 2 | ||
| CLAMP,42MM,BLACK | 92037 | 92037-1350 | 1 | ||
| DAMPER,MUFFLER | 92075 | 92075-1809 | 2 | ||
| BOLT-UPSET,6X8 | 112 | 112B0608 | 1 | ||
| BOLT-FLANGED,8X30 | 130 | 130J0830 | 2 | ||
| BOLT 6X12 | 187 | 187B0612 | 1 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0610 | 2 |
