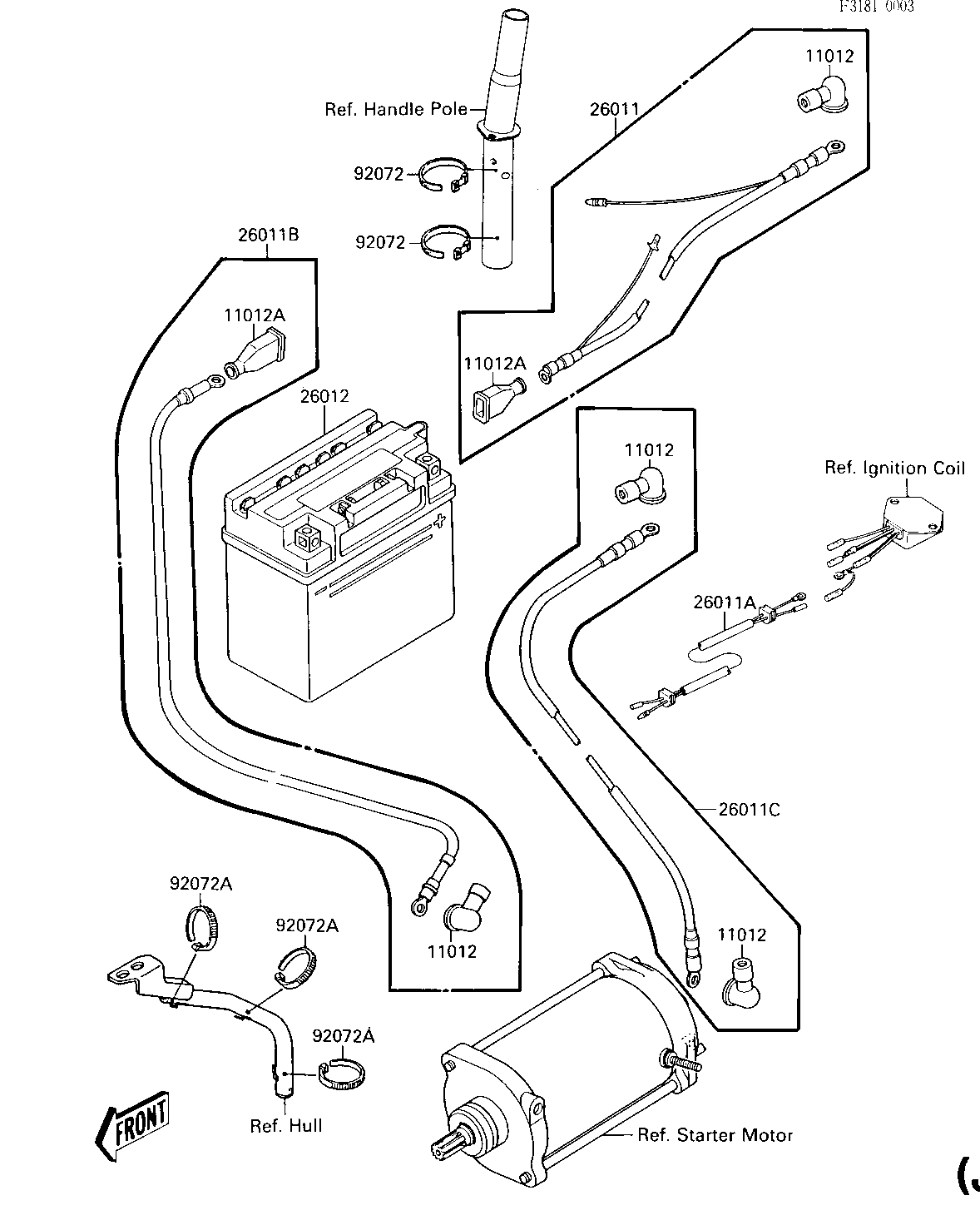

1987 X2 - ELECTRICAL EQUIPMENT (JF650-A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3004 | 4 | ||
| CAP-BATTERY TERMINAL | 11012A | 59176-501 | 2 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-3722 | 1 | ||
| WIRE-LEAD | 26011A | 26011-3723 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011B | 26011-3724 | 1 | ||
| WIRE-LEAD,STARTER | 26011C | 26011-3725 | 1 | ||
| YUA BAT YB16CL-B | 26012 | K26012-3704 | 1 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 2 | ||
| BAND | 92072A | 92072-3505 | 3 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP-BATTERY TERMINAL | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(+) | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(-) | |
| REF # | 26011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,STARTER | |
| REF # | 26011C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT YB16CL-B | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,MIDDLE | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
