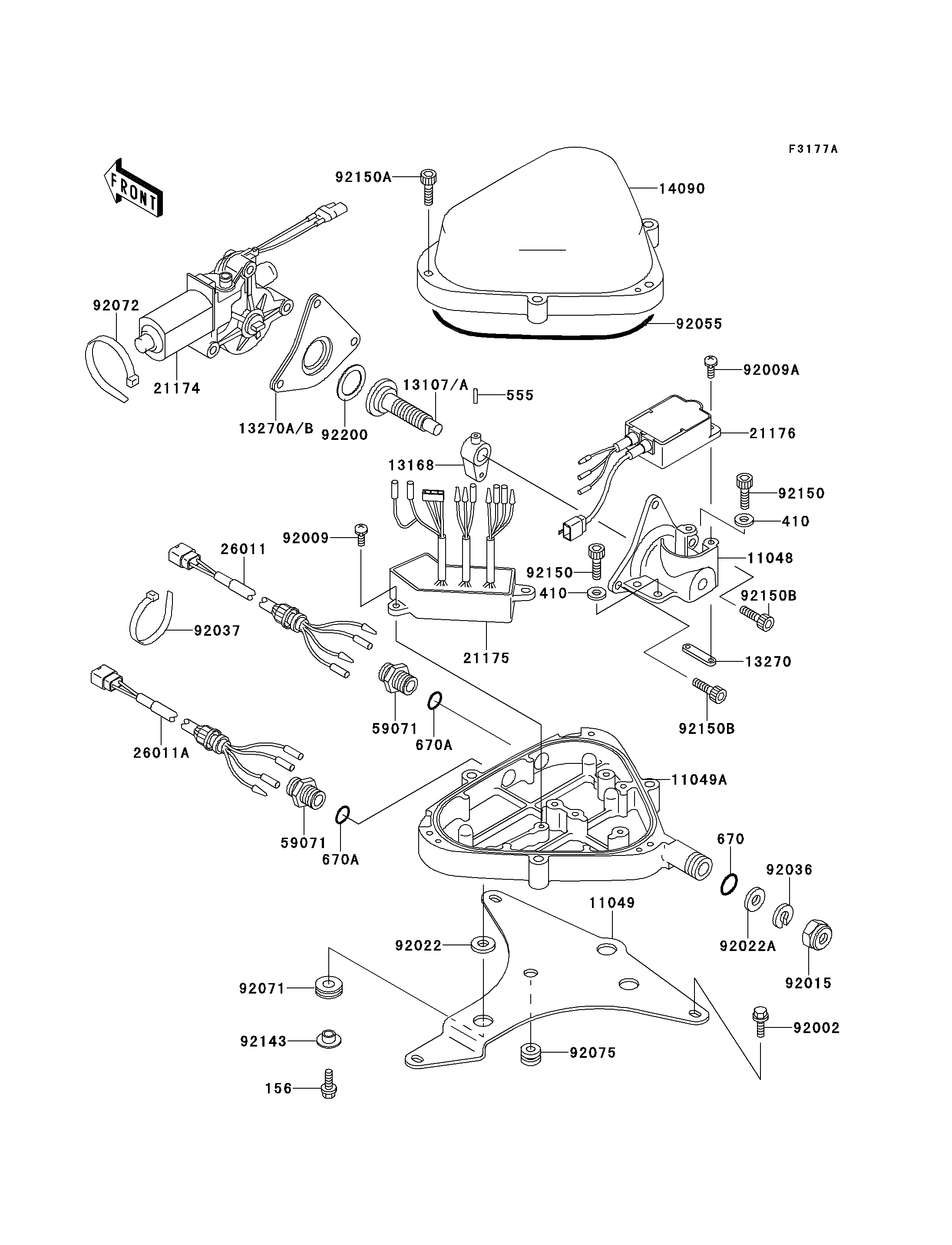

1996 900 ZXi - Control(JH900-A2)

DOWNLOAD PDF
SELECT A NEW PART
156
156
410
410
410
410
11048
11048
11049
11049
11049A
11049A
13107
13107
13107A
13107A
13168
13168
13270
13270
13270A
13270A
13270B
13270B
14090
14090
21174
21174
21175
21175
21176
21176
26011
26011
26011A
26011A
59071
59071
59071
59071
92002
92002
92009
92009
92009A
92009A
92015
92015
92022
92022
92022A
92022A
92036
92036
92037
92037
92055
92055
92071
92071
92072
92072
92075
92075
92143
92143
92150
92150
92150
92150
92150A
92150A
92150B
92150B
92150B
92150B
92200
92200
555
555
670
670
670A
670A
670A
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP,6X22 156 156R0622 3
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
BRACKET,MOTOR MOUNT 11048 11048-3738 1
BRACKET,TILT BOX 11049 11049-3712 1
BRACKET,MOTOR BOX,LWR 11049A 11049-3715 1
SHAFT 13107 13107-3744 1 ( - KAW45742 96 )
SHAFT 13107A 13107-3748 1 (KAW45743 96 - )
LEVER,SLIDE 13168 13168-3730 1
PLATE,TRIM SENSOR 13270 13270-3744 1
PLATE,MOTOR MOUNT 13270A 13270-3750 1 ( - KAW45742 96 )
PLATE,MOTOR MOUNT 13270B 13270-3822 1 (KAW45743 96 - )
COVER,MOTOR BOX,UPP 14090 14090-3768 1
MOTOR-ELECTRIC 21174 21174-3703 1
CONTROL UNIT-ELECTRONIC 21175 21175-3702 1
SENSOR,TRIM METER 21176 21176-3714 1
WIRE-LEAD,TRIM SWITCH 26011 26011-3830 1
WIRE-LEAD,TRIM METER 26011A 26011-3831 1
JOINT 59071 59071-3001 2
BOLT,6X16 92002 92002-3728 3
SCREW,5X12 92009 92009-3740 3
SCREW,4X12 92009A 92009-3807 2
NUT,20MM 92015 92015-526 1
WASHER,6.2X20X2 92022 92022-3714 3
WASHER 92022A 92022-535 1
RING-SNAP 92036 92036-501 1
CLAMP 92037 92037-1173 3
RING-O,ID=171 92055 92055-3737 1
GROMMET 92071 92071-3737 3
BAND 92072 92072-3778 1
DAMPER,METER BRACKET 92075 92075-1435 1
COLLAR 92143 92143-3749 3
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,SOCKET,6X30 92150A 92150-3822 6
BOLT,SOCKET,6X25 92150B 92150-3823 3
WASHER,22.5X32X1 92200 92200-3742 1 (KAW45743 96 - )
PIN-SPRING,3X14 555 555B0314 1
O RING,11MM 670 670B2011 1
O RING,16MM 670A 670B2016 2
