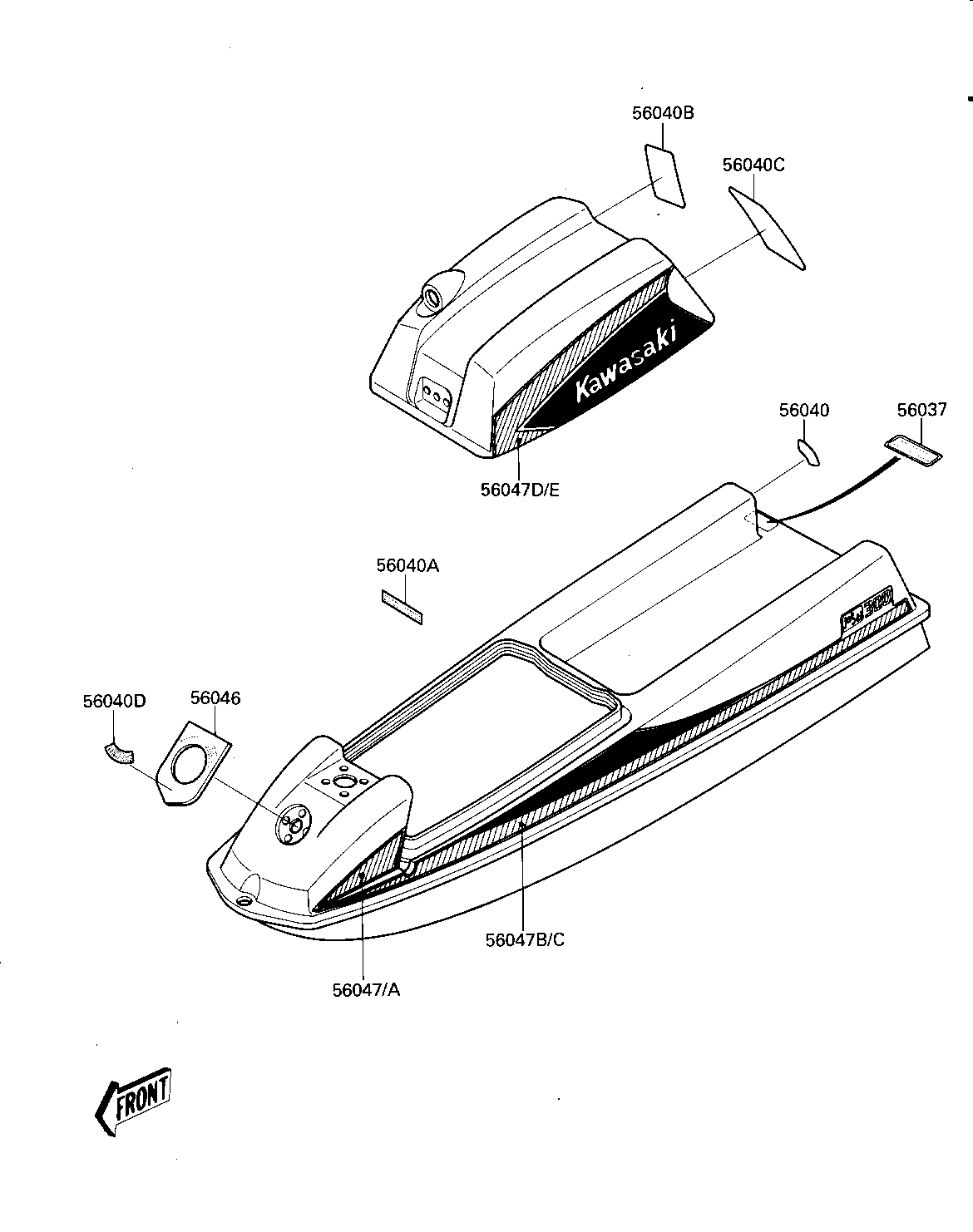

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL FIRE EXT | 56037 | 56022-506 | 1 | ||
| LABEL-WARNING | 56040 | 56040-3705 | 1 | ||
| LABEL-WARNING | 56040A | 56040-3709 | 1 | ||
| LABEL-WARNING,MAINTEN | 56040B | 56040-3731 | 1 | ||
| LABEL-WARNING,SAFETY | 56040C | 56040-3732 | 1 | ||
| LABEL-WARNING,BREAKIN | 56040D | 56040-3733 | 1 | ||
| PATTERN,FR DECK,UPPER | 56046 | 56046-1925 | 1 | ||
| PATTERN,FRONT DECK LH | 56047 | 56047-1209 | 1 | ||
| PATTERN,FRONT DECK | 56047A | 56047-1210 | 1 | ||
| PATTER REAR DECK LH | 56047B | 56047-1211 | 1 | ||
| PATTERN,REAR DECK RH | 56047C | 56047-1212 | 1 | ||
| PATTERN ENG HOOD LH | 56047D | 56047-1213 | 1 | ||
| PATTERN ENG HOOD RH | 56047E | 56047-1214 | 1 |
