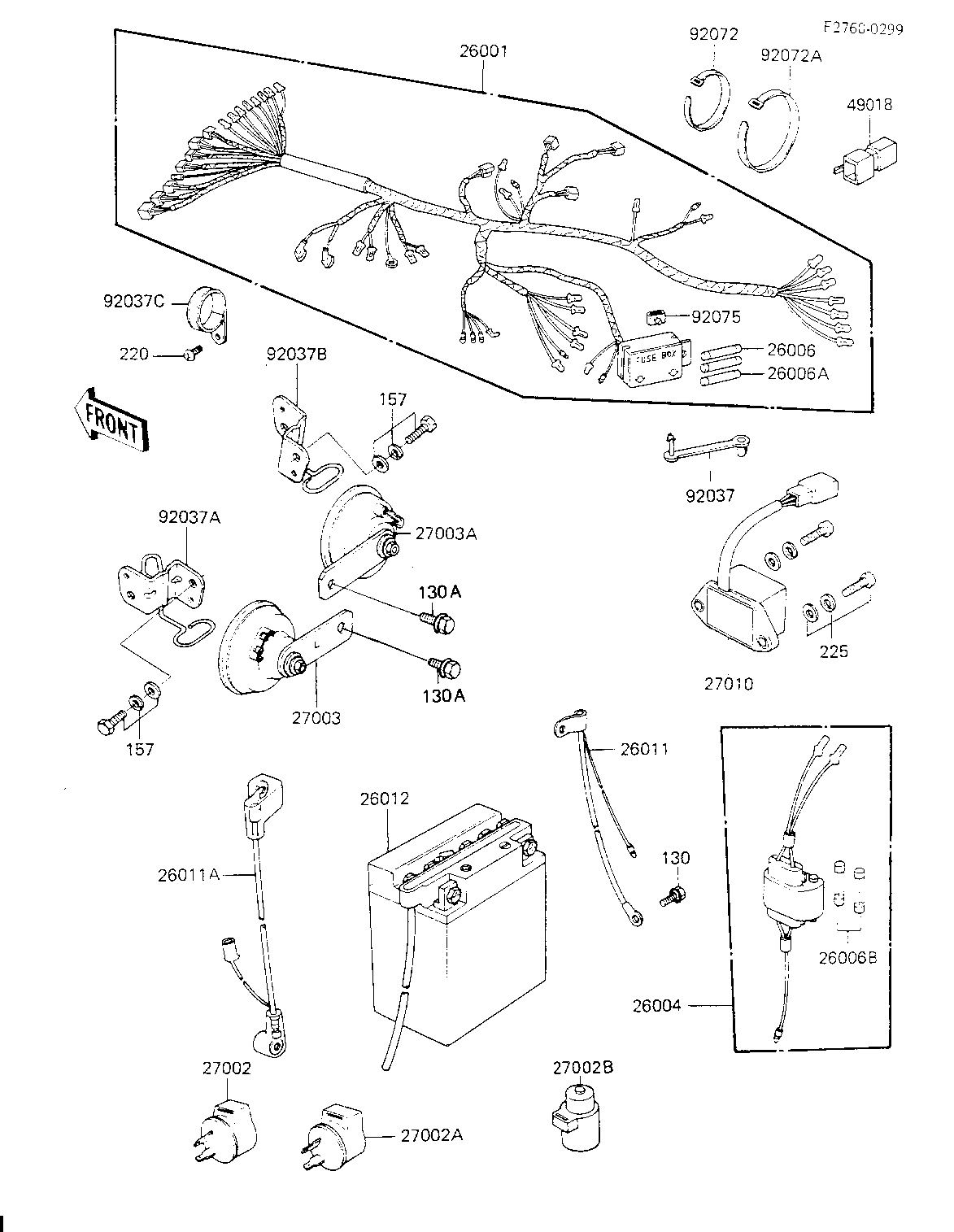

1984 KZ700-A1 - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HARNESS,MAIN | 26001 | 26001-1657 | 1 | ||
| FUSE-ASSY,ACCESSORY | 26004 | 26004-1014 | 1 | ||
| FUSE 10A | 26006 | 26006-003 | 3 | ||
| FUSE-20A | 26006A | 26006-005 | 2 | ||
| FUSE,10A,L=30M/M | 26006B | 26006-1002 | 3 | ||
| WIRE-LEAD,BATTERY GR | 26011 | 26011-1159 | 1 | ||
| WIRE-LEAD | 26011A | 26011-1174 | 1 | ||
| FB BAT FB12A-A | 26012 | 26012-1004 | 1 | ||
| RELAY-TURN SIGNAL | 27002 | 27002-011 | 1 | ||
| RELAY,TURN SIGNAL | 27002A | 27002-016 | 1 | ||
| RELAY-ASSY | 27002B | 27002-1051 | 1 | ||
| HORN,LH | 27003 | 27003-1057 | 1 | ||
| HORN,RH | 27003A | 27003-1058 | 1 | ||
| SWITCH,RESERVE LIGHT | 27010 | 27010-1069 | 1 | ||
| DIODE | 49018 | 49018-1053 | 1 | ||
| CLAMP | 92037 | 92037-1290 | 1 | ||
| CLAMP,HORN LEAD WIRE | 92037A | 92037-1322 | 1 | ||
| CLAMP,HORN LEAD WIRE | 92037B | 92037-1323 | 1 | ||
| CLAMP,WIRING HARNESS | 92037C | 92037-1330 | 1 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 2 | ||
| BAND,WIRING HARNESS | 92072A | 92072-056 | 2 | ||
| DAMPER RUBBER,FUSE | 92075 | 92075-279 | 1 | ||
| BOLT,FLANGED,6X8 | 130 | 130B0608 | 1 | ||
| BOLT-FLANGED,8X12,BL | 130A | 130C0812 | 2 | ||
| BOLT-WSP | 157 | 157C0514 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0510 | 2 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0620 | 2 |
