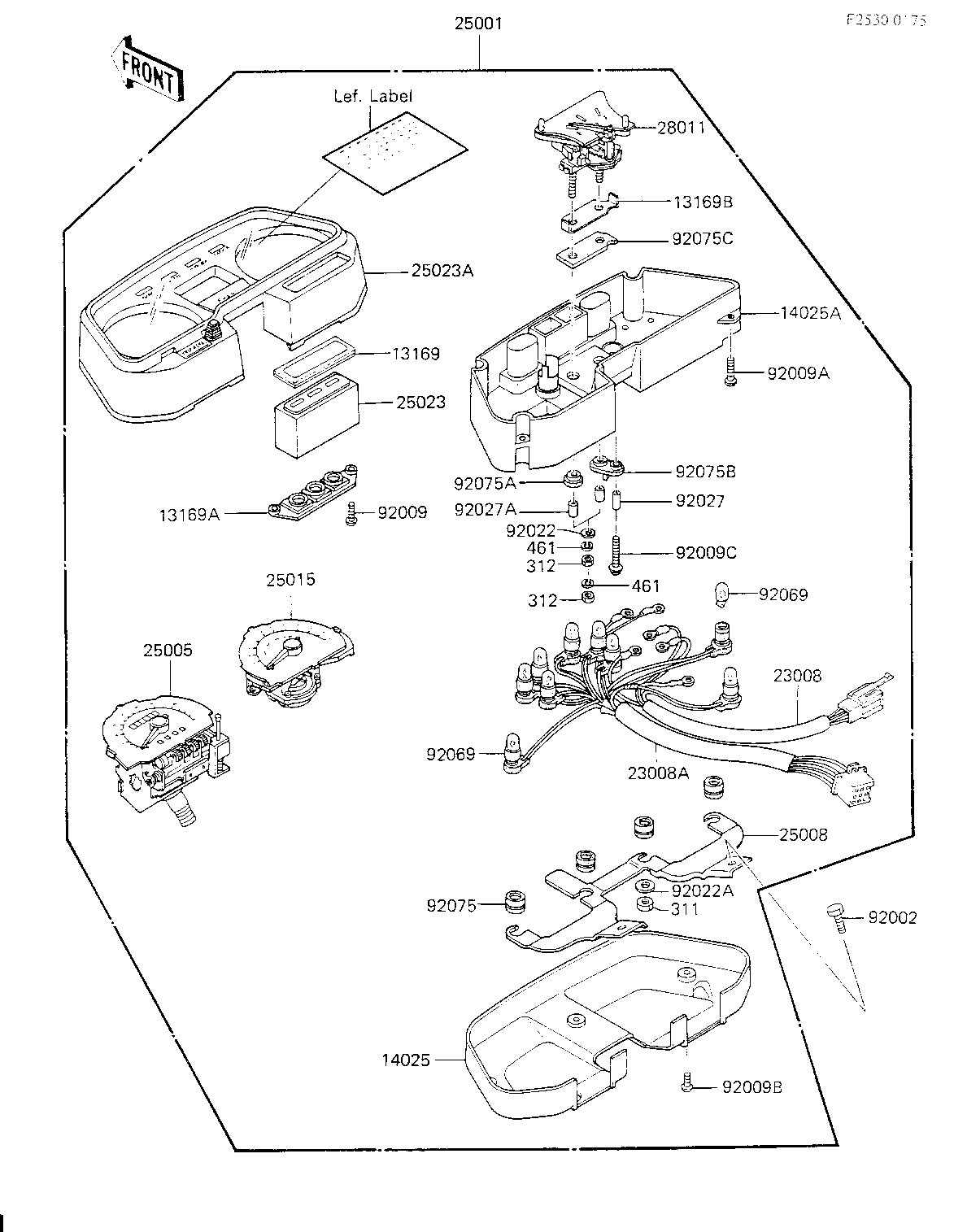

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,PILOT BOX | 13169 | 13169-1508 | 1 | ||
| PLATE,BULB SOCKET | 13169A | 13169-1556 | 1 | ||
| PLATE,FUEL METER | 13169B | 13169-1593 | 1 | ||
| COVER,METER,LWR | 14025 | 14025-1473 | 1 | ||
| COVER,METER UNIT | 14025A | 14025-1600 | 1 | ||
| SOCKET-ASSY,FUEL&OIL | 23008 | 23008-1178 | 1 | ||
| SOCKET-ASSY,METER | 23008A | 23008-1181 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1554 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1268 | 1 | ||
| BRACKET-METER | 25008 | 25008-1058 | 1 | ||
| TACHOMETER,X1000R/MI | 25015 | 25015-1135 | 1 | ||
| COVER-METER CASE.PIL | 25023 | 25023-1051 | 1 | ||
| COVER-METER CASE,UPP | 25023A | 25023-1056 | 1 | ||
| METER,FUEL | 28011 | 28011-1032 | 1 | ||
| BOLT,6X14 | 92002 | 92002-1133 | 2 | ||
| SCREW,TAPPING,4X14 | 92009 | 92009-1140 | 2 | ||
| SCREW,TAPPING,4X20 | 92009A | 92009-1141 | 4 | ||
| SCREW,TAPPING,4X12 | 92009B | 92009-1142 | 3 | ||
| SCREW,3X16 | 92009C | 92009-1190 | 1 | ||
| WASHER,4.5X10X0.8 | 92022 | 92022-1394 | 2 | ||
| WASHER,PLAIN,6MM | 92022A | 92022-263 | 2 | ||
| COLLAR,5.5X11 | 92027 | 92027-1563 | 1 | ||
| COLLAR,6X8.5 | 92027A | 92027-1564 | 2 | ||
| BULB,12V3.4W | 92069 | 92069-1007 | 10 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1385 | 4 | ||
| DAMPER,FUEL METER | 92075A | 92075-1453 | 1 | ||
| DAMPER,FUEL METER | 92075B | 92075-1454 | 1 | ||
| DAMPER,FUEL METER | 92075C | 92075-1455 | 1 | ||
| NUT,5MM | 311 | 311B0500 | 2 | ||
| NUT-HEX | 312 | 312B0400 | 4 | ||
| WASHER SPRING 4MM | 461 | 461F0400 | 4 |
