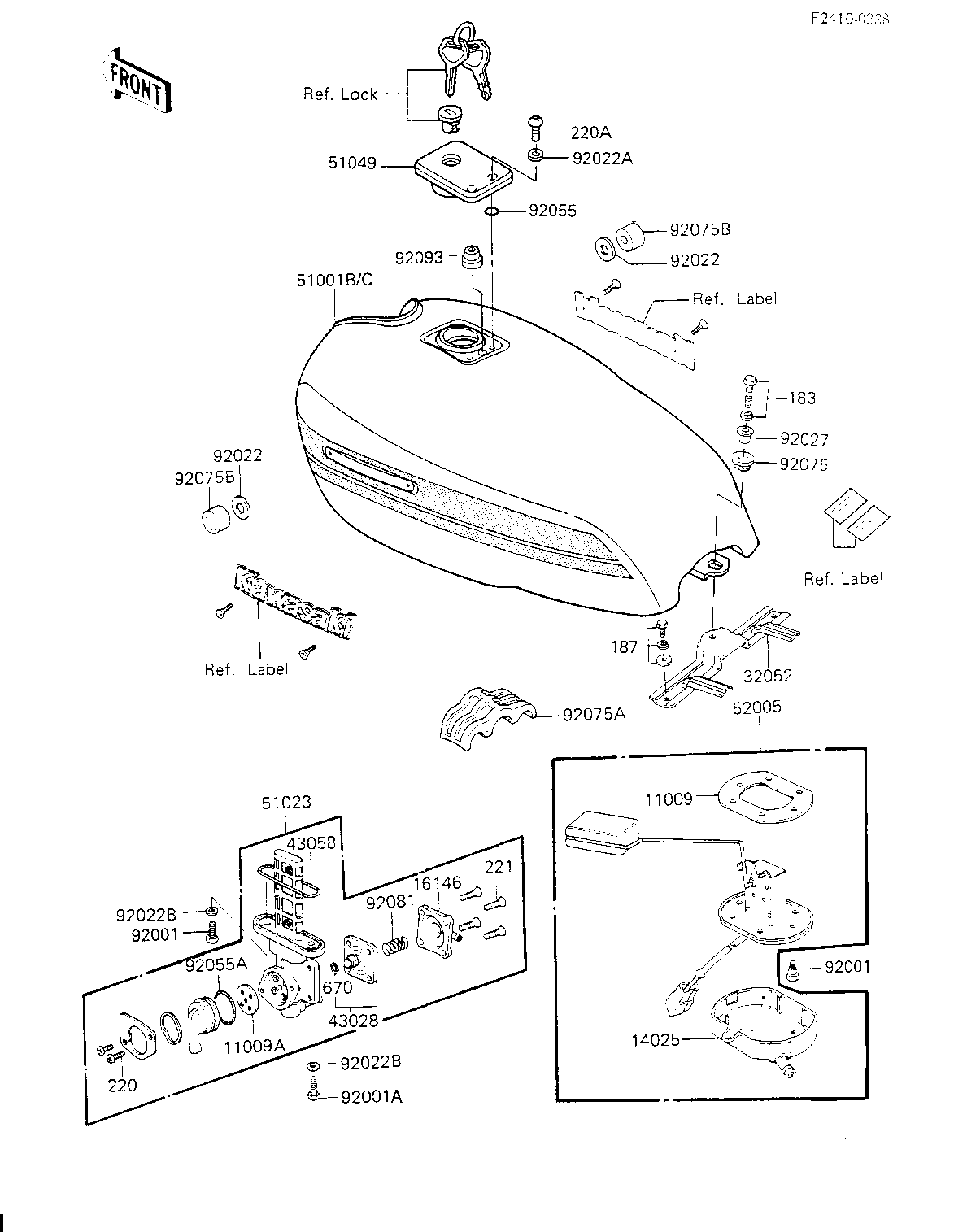

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11009 | 11009-1037 | 1 | ||
| GASKET,TAP VALVE | 11009A | 11009-1194 | 1 | ||
| COVER,FUEL GAUGE | 14025 | 14024-1434 | 1 | ||
| COVER ASSY,TAP | 16146 | 16146-1005 | 1 | ||
| BRACKET-TANK,RR | 32052 | 32052-1078 | 1 | ||
| DIAPHRAGM ASSY,TAP | 43028 | 43028-1015 | 1 | ||
| "0" RING | 43058 | 51039-010 | 1 | ||
| TANK-COMP-FUEL,EBONY | 51001B | 51001-5432-H8 | 1 | US | |
| TANK-COMP-FUEL,EBONY | 51001C | 51001-5434-H8 | 1 | CA | |
| TAP ASSY,FUEL | 51023 | 51023-1031 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1084 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1028 | 1 | ||
| BOLT,FUEL GAUGE FIT | 92001 | 92001-1069 | 6 | ||
| BOLT,6X20,FUEL TAP | 92001A | 92001-1091 | 2 | ||
| WASHER-PL-10.5X26X2. | 92022 | 92022-044 | 2 | ||
| WASHER,PLAIN | 92022A | 92022-1038 | 2 | ||
| WASHER-PLAIN | 92022B | 92022-183 | 2 | ||
| COLLAR,FUEL TANK FIT | 92027 | 92027-1134 | 1 | ||
| "0" RING | 92055 | 92055-1023 | 2 | ||
| "0" RING,TAP LEVER | 92055A | 92055-1027 | 1 | ||
| DAMPER,FUEL TANK,FIT | 92075 | 92075-1116 | 1 | ||
| DAMPER,FUEL TANK | 92075A | 92075-1245 | 1 | ||
| DAMPER RUBBER,FL TAN | 92075B | 92075-125 | 2 | ||
| SPRING,TAP | 92081 | 92081-1171 | 1 | ||
| OIL SEAL,FUEL TANK | 92093 | 92093-1030 | 1 | CA | |
| BOLT-UPSET-WS-SMALL | 183 | 183B0830 | 1 | ||
| BOLT 6X12 | 187 | 187B0612 | 2 | ||
| SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
| SCREW PAN HEAD 5X10 | 220A | 220B0510 | 2 | ||
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
| "O" RING,4MM | 670 | 670B1504 | 1 |
| GASKET | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TAP VALVE | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FUEL GAUGE | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER ASSY,TAP | |
| REF # | 16146 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-TANK,RR | |
| REF # | 32052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM ASSY,TAP | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,EBONY | |
| REF # | 51001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TANK-COMP-FUEL,EBONY | |
| REF # | 51001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TAP ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,FUEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FUEL GAUGE FIT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PL-10.5X26X2. | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FUEL TANK FIT | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,TAP LEVER | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,FIT | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FL TAN | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,TAP | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,FUEL TANK | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| BOLT-UPSET-WS-SMALL | |
| REF # | 183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X12 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 3X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X10 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "O" RING,4MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
