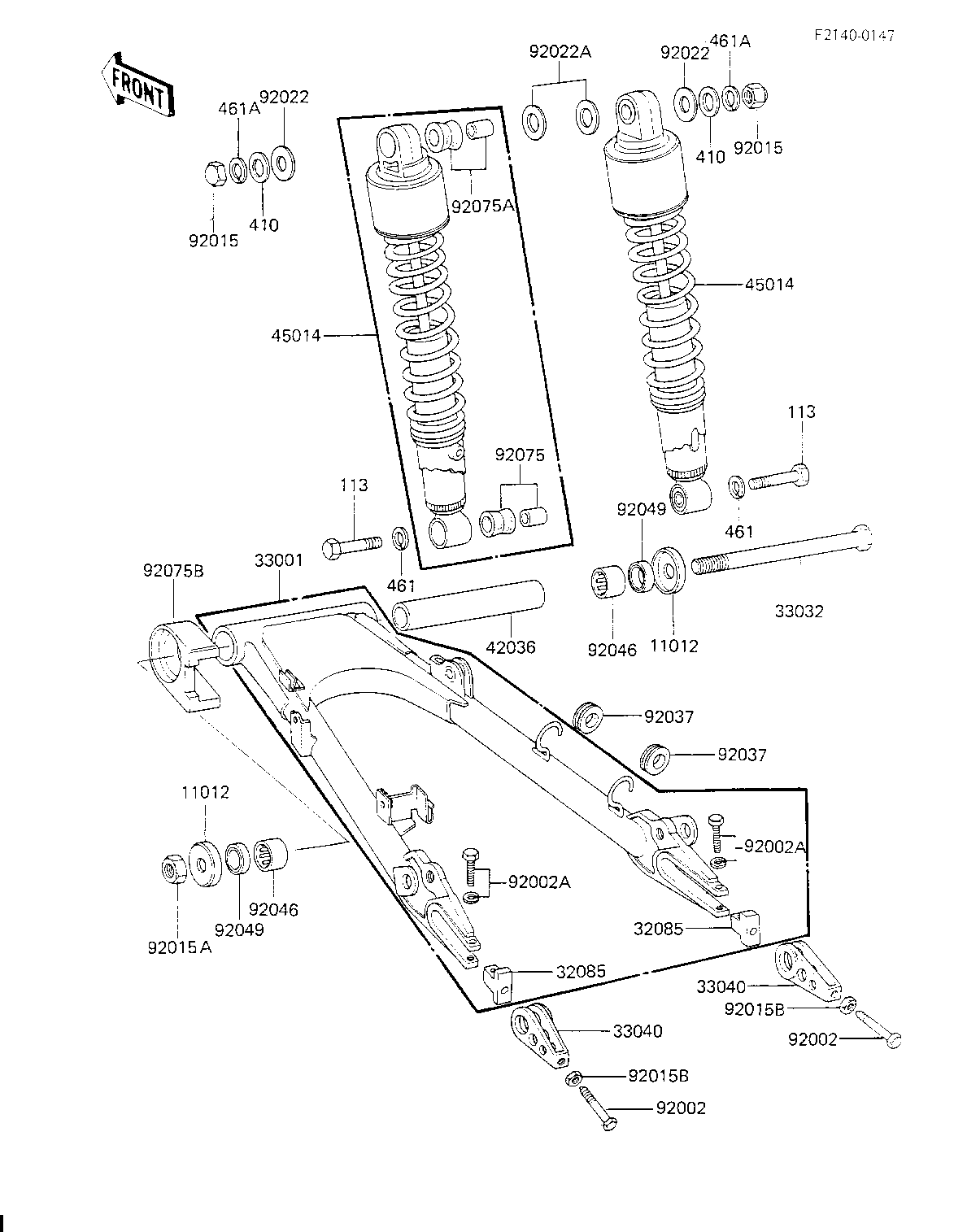

1984 KZ700-A1 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 33035-009 2
STOPPER,CHAIN ADJUST 32085 33044-002 2
ARM-COMP-SWING 33001 33001-1159 1
SHAFT-SWING ARM,16X3 33032 33032-1028 1
ADJUSTER,CHAIN 33040 33040-056 2
SLEEVE,SWING ARM 42036 42036-1012 1
SHOCKABSORBER,RR,BLA 45014 45014-1225-10 2
BOLT,8X50 92002 92002-1076 2
BOLT,8X35 92002A 92002-1230 2
NUT,LOCK,CAP,12MM,BL 92015 92015-1192 2
NUT,LOCK,16MM,BLACK 92015A 92015-1207 1
NUT,8MM 92015B 92015-1364 2
WASHER,12.4X28X2.3,B 92022 92022-1303 2
WASHER PLAIN 14MM 92022A 410B1400 2
DAMPER RUBBER 92037 43064-007 2
BEARING-NEEDLE,HK221 92046 92046-1115 2
OIL SEAL,MHA22284 92049 92049-1059 2
BUSHING,SHOCK ABSORB 92075 45017-019 2
BUSHING,SHOCK ABSORB 92075A 92075-1141 2
DAMPER, 92075B 92075-1144 1
BOLT-SMALL-FINE,10X3 113 112C1035 2
WASHER-PLANE-SMALL 410 410F1200 2
WASHER-SPRING,10MM 461 461K1000 2
WASHER-SPRING,12MM,B 461A 461K1200 2
