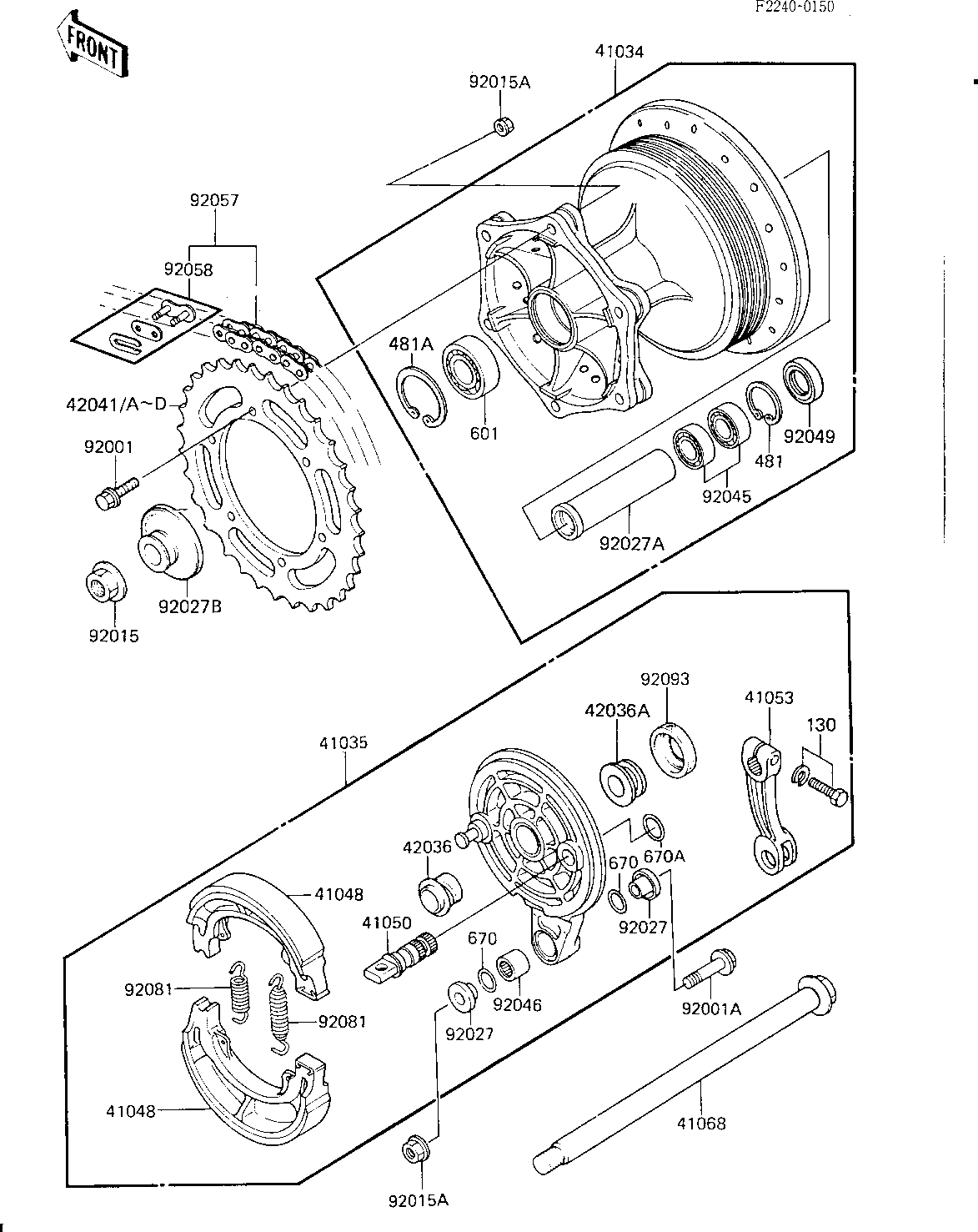

1984 KX125 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1108 1
PANEL-ASSY-BRAKE,RR 41035 41035-1161 1
SHOE-BRAKE 41048 42019-013 2
CAM-BRAKE,REAR 41050 41050-1022 1
LEVER-BRAKE CAM,REAR 41053 41053-1029 1
AXLE,RR,L=283 41068 41068-1166 1
SLEEVE,RR BRAKE,LH,L= 42036 42036-1070 1
SLEEVE,RR BRAKE,L=13. 42036A 42036-1110 1
REAR SPROCKET,52T 42041 42041-1044 1 (OPTION)
SPROCKET-HUB,51T 42041A 42041-1079 1 (OPTION)
SPROCKET-HUB,48T 42041B 42041-1125 1 (OPTION)
SPROCKET-HUB,50T 42041C 42041-1132 1
SPROCKET-HUB,49T 42041D 42041-1183 1 (OPTION)
BOLT,HEX HEAD,8X32 92001 92001-1040 6
BOLT 92001A 92001-1578 1
NUT,16M/M 92015 92015-1015 1
NUT-8MM 92015A 92015-1143 7
COLLAR 92027 92027-1040 2
COLLAR,REAR DRUM,L=10 92027A 92027-1459 1
COLLAR,AXLE 92027B 92027-1531 1
BEARING-BALL 92045 92045-1053 2
BEARING,NEEDLE 92046 92046-1009 1
SEAL-OIL,BJN22325 92049 92049-1103 1
CHAIN,DRIVE,DID520DS 92057 92057-1167 1
JOINT,DRIVE CHAIN 92058 92058-1013 1
SPRING,BRAKE SHOE 92081 92081-1766 2
OIL SEAL 92093 92093-1004 1
BOLT-FLANGED,6X22 130 130G0622 1
CIRCLIP 30MM 481 481J3000 1
CIRCLIP,42MM 481A 92033-1041 1
BEARING-BALL,#6004U 601 601B6004U 1
"O" RING 670 670B2011 2
"O" RING,12MM 670A 670B2012 1
