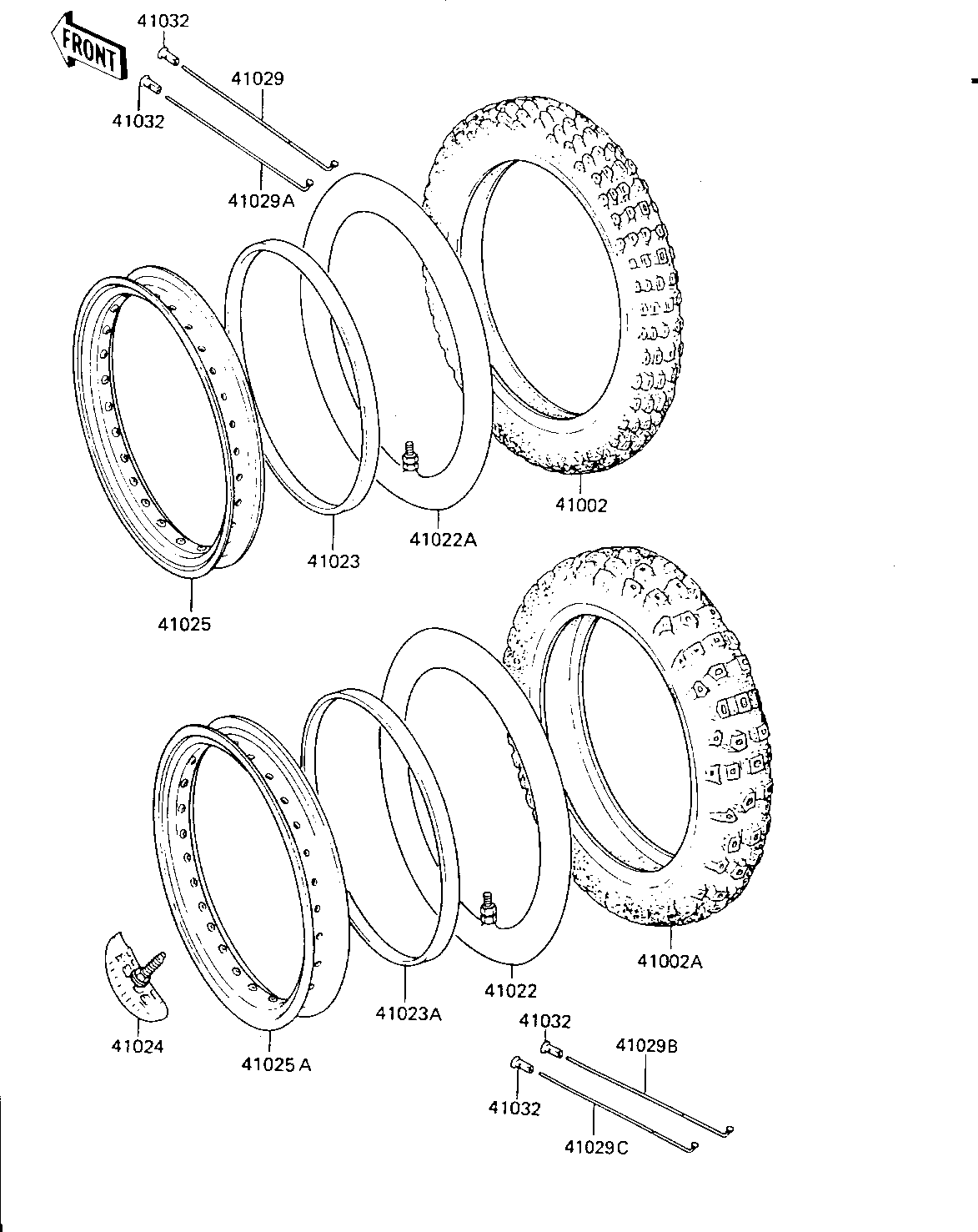

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 K790 F | 41002 | 41002-1454 | 1 | ||
| TIRE 400-18 K790 R | 41002A | 41002-1456 | 1 | ||
| TUBE 350/375/410-18 | 41022 | 41022-031 | 1 | ||
| TUBE,2.75/3.70-21 | 41022A | 41022-1021 | 1 | ||
| BAND,RIM,3.00-21 | 41023 | 41023-1001 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 41023A | 41023-1006 | 1 | ||
| PROTECTOR,BEAD,1.85B | 41024 | 41024-011 | 1 | ||
| RIM,FR,1.60X21 | 41025 | 41025-1117 | 1 | ||
| RIM,RR,1.85X18 | 41025A | 41025-1118 | 1 | ||
| SPOKE-INNER,FR,RH,225 | 41029 | 41029-1101 | 27 | ||
| SPOKE-INNER,FR,LH,232 | 41029A | 41029-1108 | 9 | ||
| SPOKE-INNER,RR,RH,180 | 41029B | 41029-1109 | 18 | ||
| SPOKE-INNER,RR,LH,192 | 41029C | 41029-1110 | 18 | ||
| NIPPLE-SPOKE | 41032 | 41032-1051 | 72 |
| TIRE 300-21 K790 F | |
| REF # | 41002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 400-18 K790 R | |
| REF # | 41002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 350/375/410-18 | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,2.75/3.70-21 | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,3.00-21 | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD,1.85B | |
| REF # | 41024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.60X21 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,1.85X18 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,RH,225 | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 27 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,LH,232 | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,RH,180 | |
| REF # | 41029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,LH,192 | |
| REF # | 41029C |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 72 |
| DESTINATION | |
| REMARKS | |
