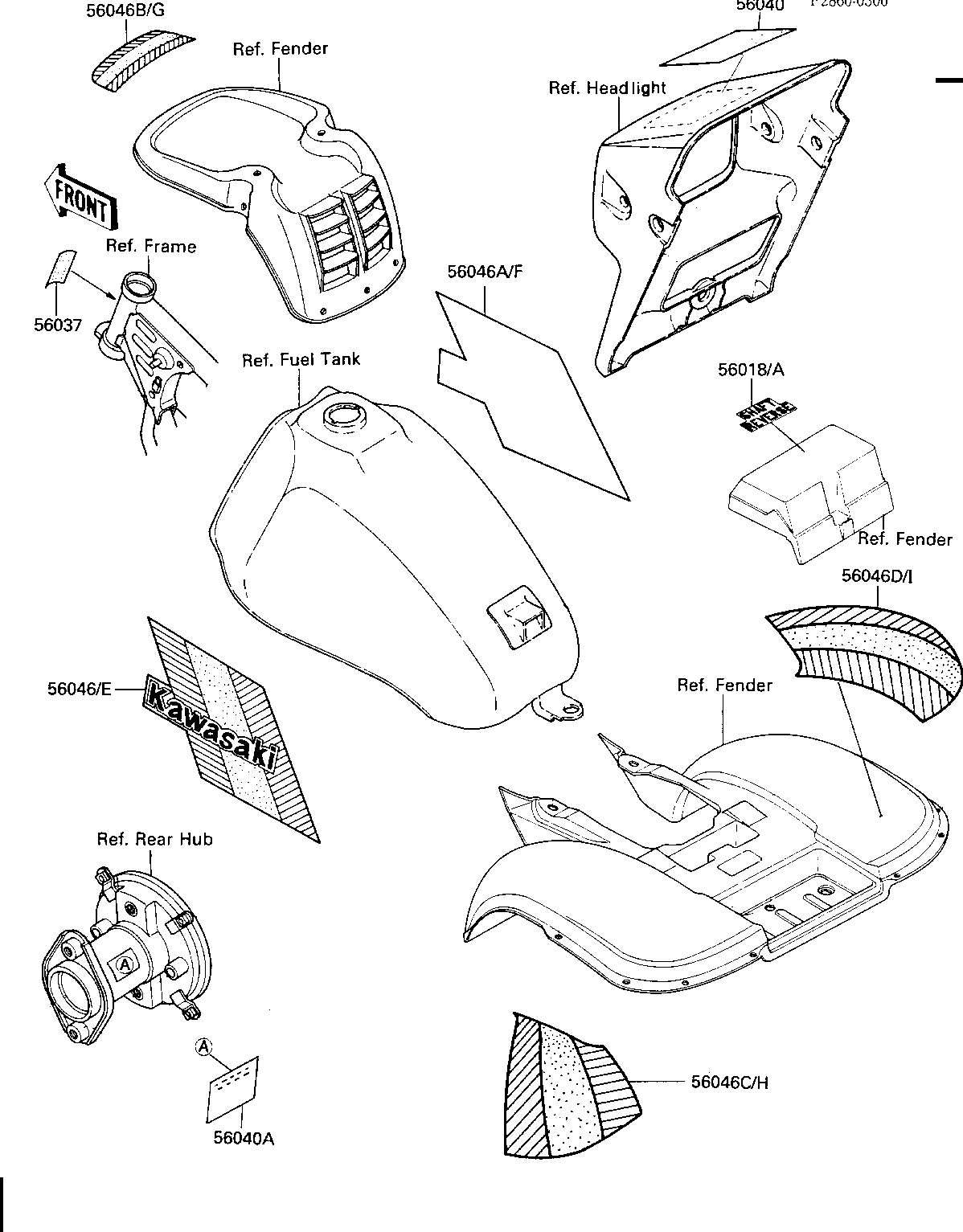

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SEAT-COVER,EBONY | 56018 | 56018-1513 | 1 | ||
| MARK,SEAT-COVER,RED | 56018A | 56018-1514 | 1 | ||
| LABEL-SPECIFICATION | 56037 | 56037-1284 | 1 | ||
| LABEL-WARNING,IMPORTA | 56040 | 56040-1127 | 1 | ||
| LABEL-DO NOT CARRY | 56040A | 56040-4009 | 1 | ||
| PATTERN,TANK,LH,EBONY | 56046 | 56046-1119 | 1 | ||
| PATTERN,TANK,RH,EBONY | 56046A | 56046-1120 | 1 | ||
| PATTERN,FR-FENDER,EBO | 56046B | 56046-1121 | 1 | ||
| PATTERN,RR-FENDER,LH | 56046C | 56046-1122 | 1 | ||
| PATTERN,RR-FENDER,RH | 56046D | 56046-1123 | 1 | ||
| PATTERN,TANK,LH,RED | 56046E | 56046-1124 | 1 | ||
| PATTERN,TANK,RH,RED | 56046F | 56046-1125 | 1 | ||
| PATTERN,FR-FENDER,RED | 56046G | 56046-1126 | 1 | ||
| PATTERN,RR-FENDER,LH | 56046H | 56046-1127 | 1 | ||
| PATTER,RR-FENDER,RH | 56046I | 56046-1128 | 1 |
