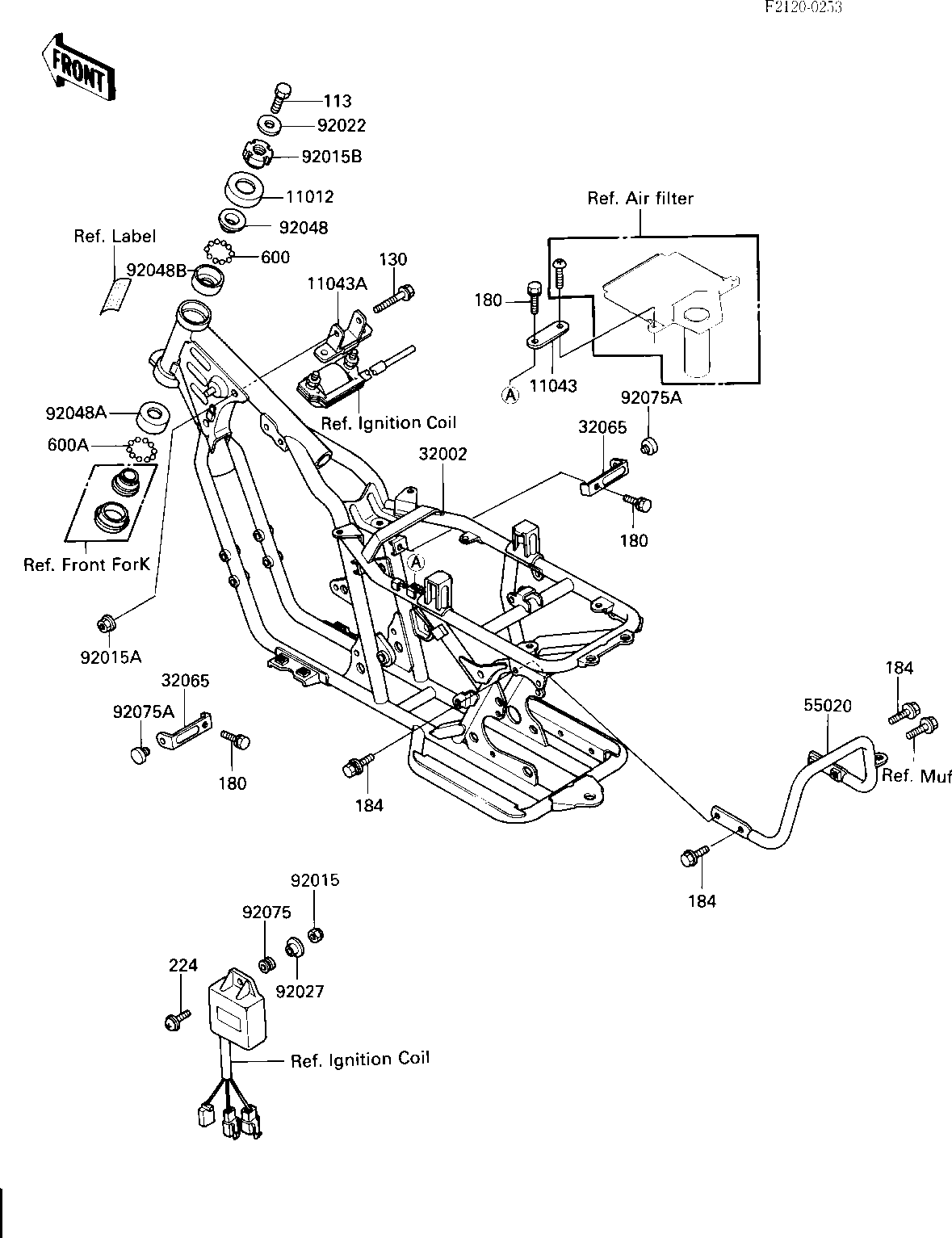

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 46098-012 | 1 | ||
| BRACKET,AIR FILTER,LH | 11043 | 11043-1540 | 1 | ||
| BRACKET,IGNITION COIL | 11043A | 11043-1773 | 1 | ||
| FRAME-COMP | 32002 | 32002-1735 | 1 | ||
| BRACKET,FENDER-RR | 32065 | 32065-4011 | 2 | ||
| GUARD | 55020 | 55020-4017 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
| NUT-6MM | 92015A | 92015-1078 | 1 | ||
| NUT,STEERING STEM | 92015B | 92015-4007 | 1 | ||
| WASHER,10.5X35X4,BLAC | 92022 | 92022-4028 | 1 | ||
| COLLAR | 92027 | 92027-1045 | 1 | ||
| CONE,STRG STM BRG,UP | 92048 | 92047-014 | 1 | ||
| RACE STEERING BEARING | 92048A | 92048-005 | 1 | ||
| RACE,STRG STM BEARING | 92048B | 92048-009 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-277 | 1 | ||
| DAMPER RUBBER | 92075A | 92075-281 | 2 | ||
| BOLT-SMALL-FINE,12X25 | 113 | 113J1225 | 1 | ||
| BOLT-FLANGED,6X45 | 130 | 130B0645 | 1 | ||
| BOLT 6X12 | 180 | 180B0612 | 3 | ||
| BOLT-UPSET-WP-SMALL | 184 | 184J0820 | 3 | ||
| SCREW-PAN-WP-CROS | 224 | 224D0625 | 1 | ||
| BALL STEEL 3/16' | 600 | 600A0600 | 23 | ||
| BALL STEEL 1/4' | 600A | 600A0800 | 19 |
