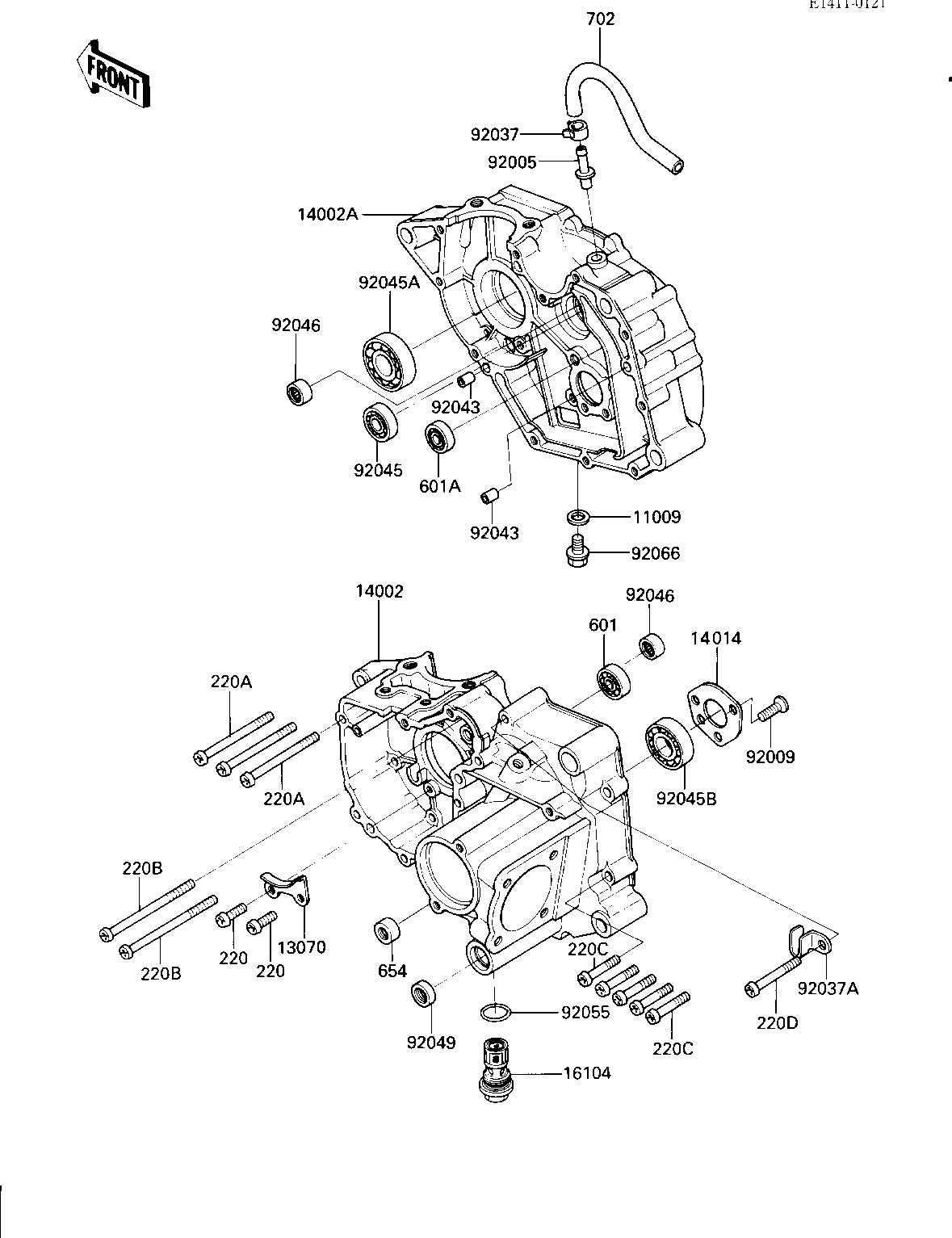

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,DRIN PLUG | 11009 | 92065-097 | 1 | ||
| GUIDE,CAM CHAIN | 13070 | 13070-1110 | 1 | ||
| CRANKCASE,LH | 14002 | 14002-1317 | 1 | ||
| CRANKCASE,RH | 14002A | 14002-1318 | 1 | ||
| PLATE-POSITION | 14014 | 14014-1055 | 1 | ||
| FILTER-COMP | 16104 | 16104-1055 | 1 | ||
| FITTING,BREATHER PIPE | 92005 | 92005-1124 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1349 | 4 | ||
| CLAMP | 92037 | 92037-1181 | 1 | ||
| CLAMP | 92037A | 92037-1724 | 1 | ||
| PIN-DOWEL | 92043 | 92042-007 | 2 | ||
| BEARING-BALL,#6204 | 92045 | 92045-1032 | 1 | ||
| BEARING-BALL,6305JR2C | 92045A | 92045-1120 | 1 | ||
| BEARING-BALL,TMB304CC | 92045B | 92045-1142 | 1 | ||
| BRG,NEEDLE,HMK1515B | 92046 | 92046-060 | 2 | ||
| OIL SEAL,TB13225.5 | 92049 | 92051-005 | 1 | ||
| RING-O,25.7X2.4 | 92055 | 92055-1136 | 1 | ||
| PLUG,OIL,DRAIN 12X15 | 92066 | 92066-1174 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 1 | ||
| SCREW PAN HEAD 6X60 | 220A | 220B0660 | 3 | ||
| SCREW PAN HEAD 6X70 | 220B | 220B0670 | 2 | ||
| SCREW-PAN-CROS | 220C | 220X0635 | 5 | ||
| SCREW-PAN-CROS | 220D | 220X0650 | 1 | ||
| BEARING BALL | 601 | 601A6202Z | 1 | ||
| BEARING BALL #6202 | 601A | 601B6202 | 1 | ||
| SEAL OIL | 654 | 654B14257 | 1 | ||
| TUBE-RUBBER | 702 | 702A08400 | 1 |
