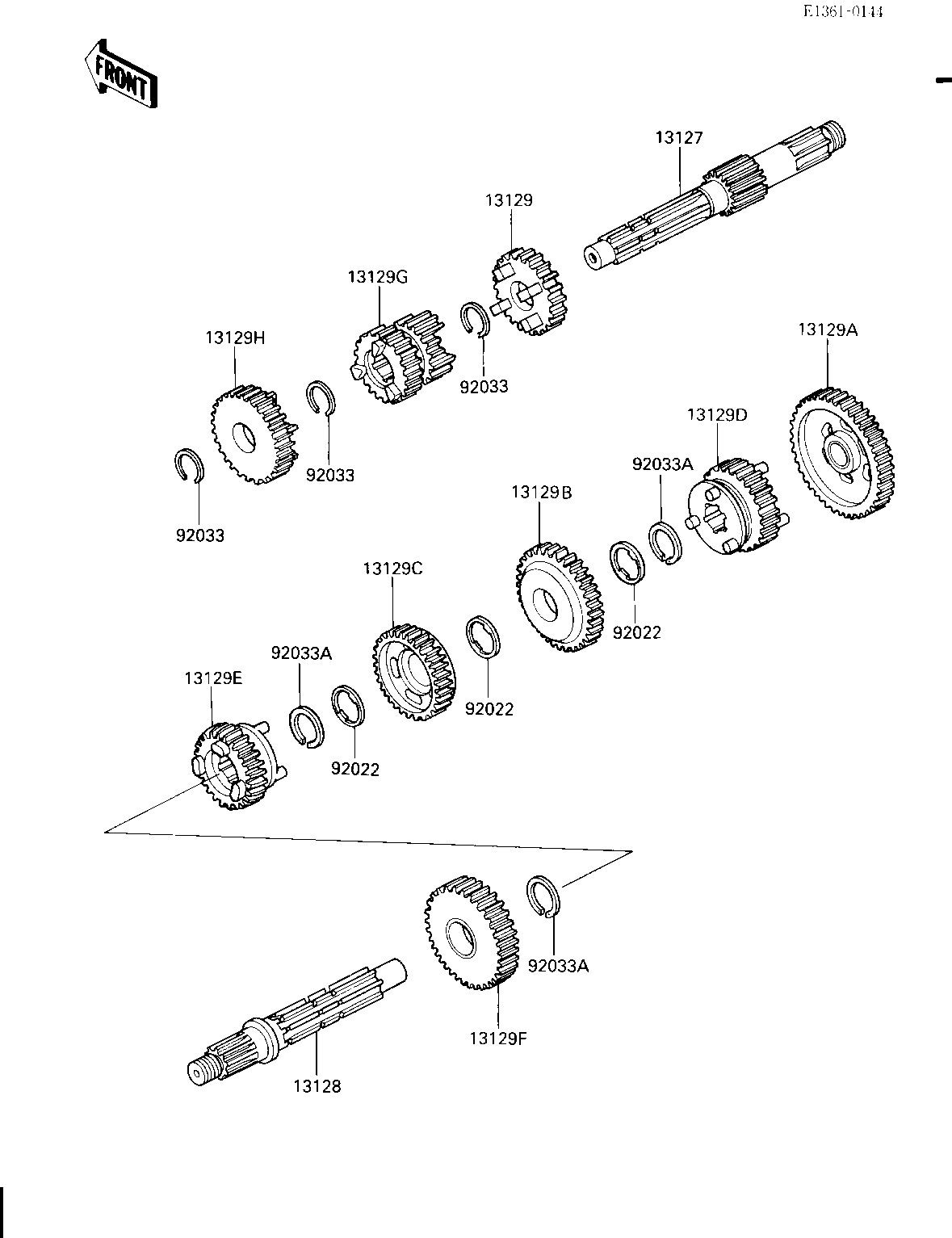

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1109 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1106 | 1 | ||
| GEAR,INPUT 4TH,26T | 13129 | 13129-1541 | 1 | ||
| GEAR,OUTPUT LOW,40T | 13129A | 13129-1543 | 1 | ||
| GEAR,OUTPUT 2ND,35T | 13129B | 13129-1544 | 1 | ||
| GEAR,OUTPUT 3RD,30T | 13129C | 13129-1545 | 1 | ||
| GEAR,OUTPUT 4TH,28T | 13129D | 13129-1546 | 1 | ||
| GEAR,OUTPUT TOP,26T | 13129E | 13129-1547 | 1 | ||
| GEAR,REVERSE,33T | 13129F | 13129-1548 | 1 | ||
| GEAR-INPUT 2ND,23T&19 | 13129G | 13129-1673 | 1 | ||
| GEAR,INPUT TOP,28T | 13129H | 13129-1674 | 1 | ||
| WASHER,LOCK | 92022 | 92024-059 | 3 | ||
| CIRCLIP | 92033 | 92033-028 | 3 | ||
| CIRCLIP,18MM | 92033A | 92033-029 | 3 |
| SHAFT-TRANSMISSION IN | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 4TH,26T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,40T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,35T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,30T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,28T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,26T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,REVERSE,33T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-INPUT 2ND,23T&19 | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,28T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
