Parts Diagrams |

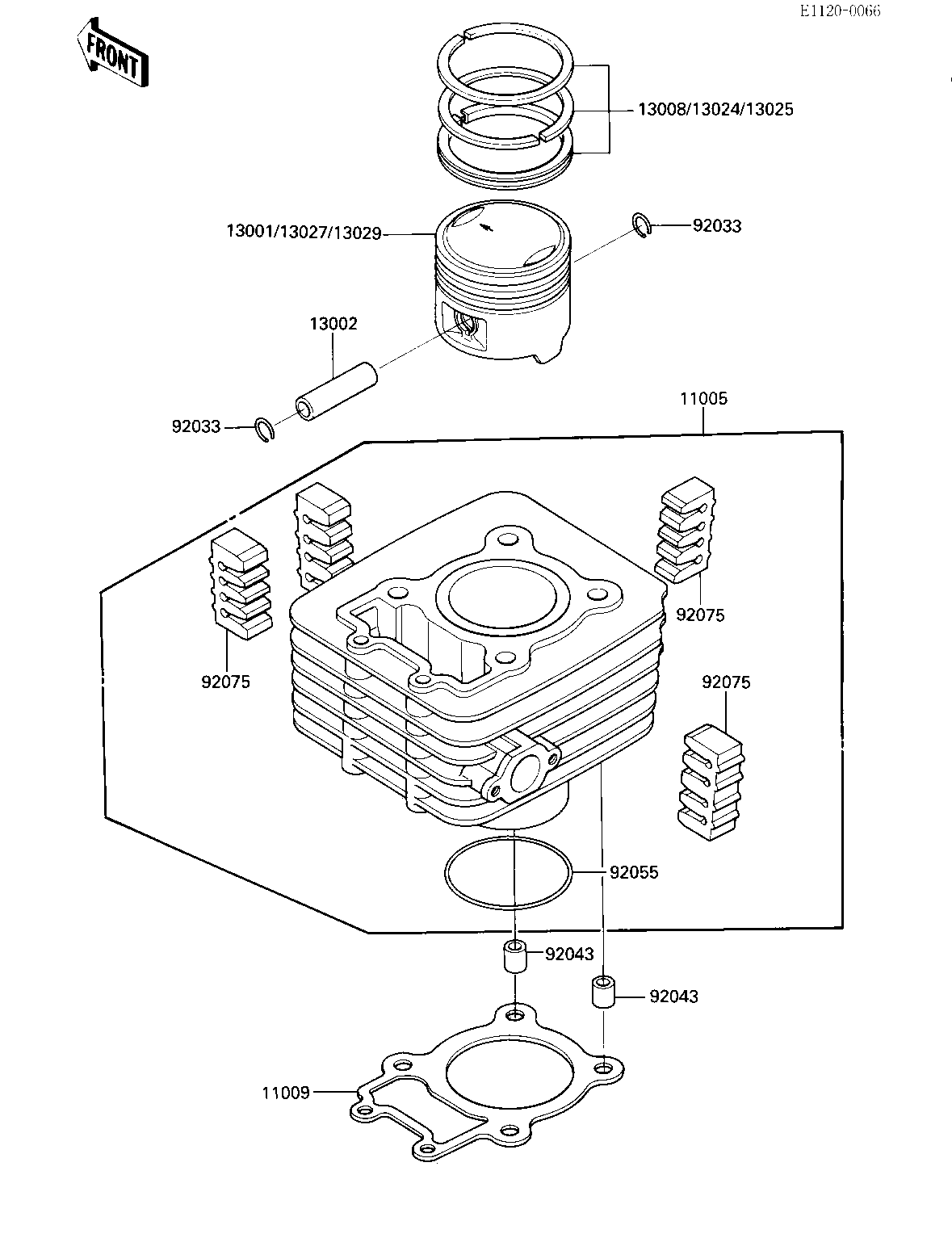

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE | 11005 | 11005-1354 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1392 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-1176 | 1 | ||
| PIN-PISTON | 13002 | 13002-1008 | 1 | ||
| RING-SET-PISTON,STD | 13008 | 13008-1057 | 1 | ||
| RING-SET PISTON LL,O/ | 13024 | 13024-1057 | 1 | ||
| RING-SET PISTON L,O/S | 13025 | 13025-1057 | 1 | ||
| PISTON-ENGINE LL,O/S, | 13027 | 13027-1122 | 1 | ||
| PISTON-ENGINE L,O/S,0 | 13029 | 13029-1121 | 1 | ||
| RING-SNAP,PISTON PIN | 92033 | 92033-1151 | 2 | ||
| PIN,DOWEL,10X8.2X14 | 92043 | 92043-1037 | 2 | ||
| "0" RING,67.5MM | 92055 | 92055-1035 | 1 | ||
| DAMPER | 92075 | 92075-1657 | 4 |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE,STD | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON,STD | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET PISTON LL,O/ | |
| REF # | 13024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET PISTON L,O/S | |
| REF # | 13025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE LL,O/S, | |
| REF # | 13027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE L,O/S,0 | |
| REF # | 13029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,PISTON PIN | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,67.5MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
