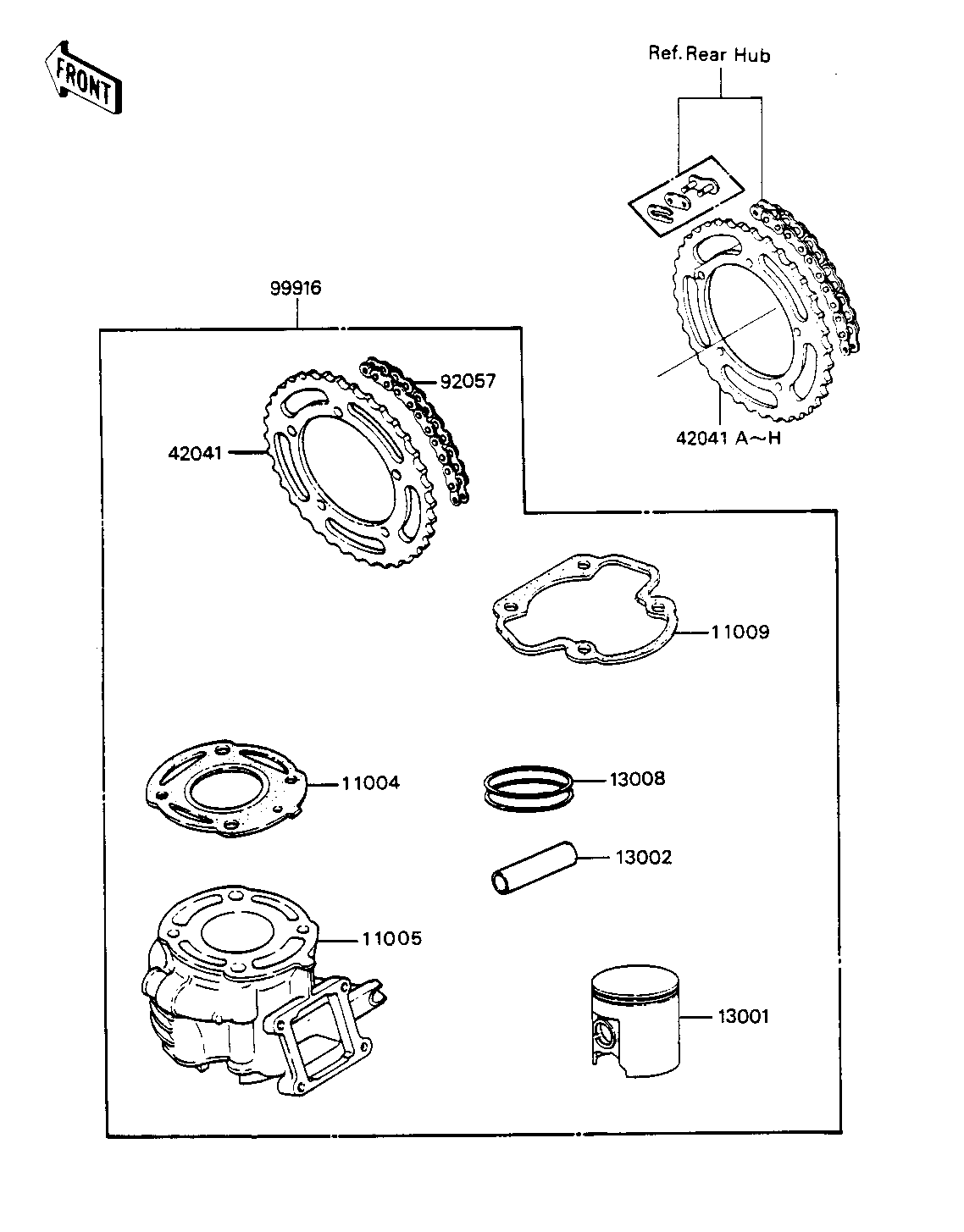

1985 KX80 - OPTIONAL PARTS ('85 KX80-E3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD,CYLINDER | 11004 | 11004-1060 | 1 | ||
| CYLINDER-ENGINE,BORE | 11005 | 11005-1449 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1975 | 1 | ||
| PISTON | 13001 | 13001-1081 | 1 | ||
| PIN-PISTON | 13002 | 13002-1018 | 1 | ||
| RING-SET-PISTON | 13008 | 13008-5041 | 1 | ||
| SPROCKET-HUB,49T | 42041 | 42041-1121 | 1 | ||
| SPROCKET-HUB,43T,AL | 42041A | 42041-1167 | (1 | ||
| SPROCKET-HUB,44T,AL | 42041B | 42041-1168 | (1 | ||
| SPROCKET-HUB,48T,AL | 42041C | 42041-1169 | (1 | ||
| SPROCKET-HUB,49T,AL | 42041D | 42041-1170 | (1 | ||
| SPROCKET-HUB,50T,AL | 42041E | 42041-1171 | (1 | ||
| SPROCKET-HUB,45T,AL | 42041F | 42041-1175 | (1 | ||
| SPROCKET-HUB,46T,AL | 42041G | 42041-1176 | (1 | ||
| SPROCKET-HUB,47T,AL | 42041H | 42041-1177 | (1 | ||
| SPROCKET-HUB,51T,AL | 42041I | 42041-1182 | (1 | ||
| CHAIN,EK420SH-G,118L | 92057 | 92057-1105 | 1 | ||
| KIT PARTS,BORE UP | 99916 | 99916-1052 | 1 |
