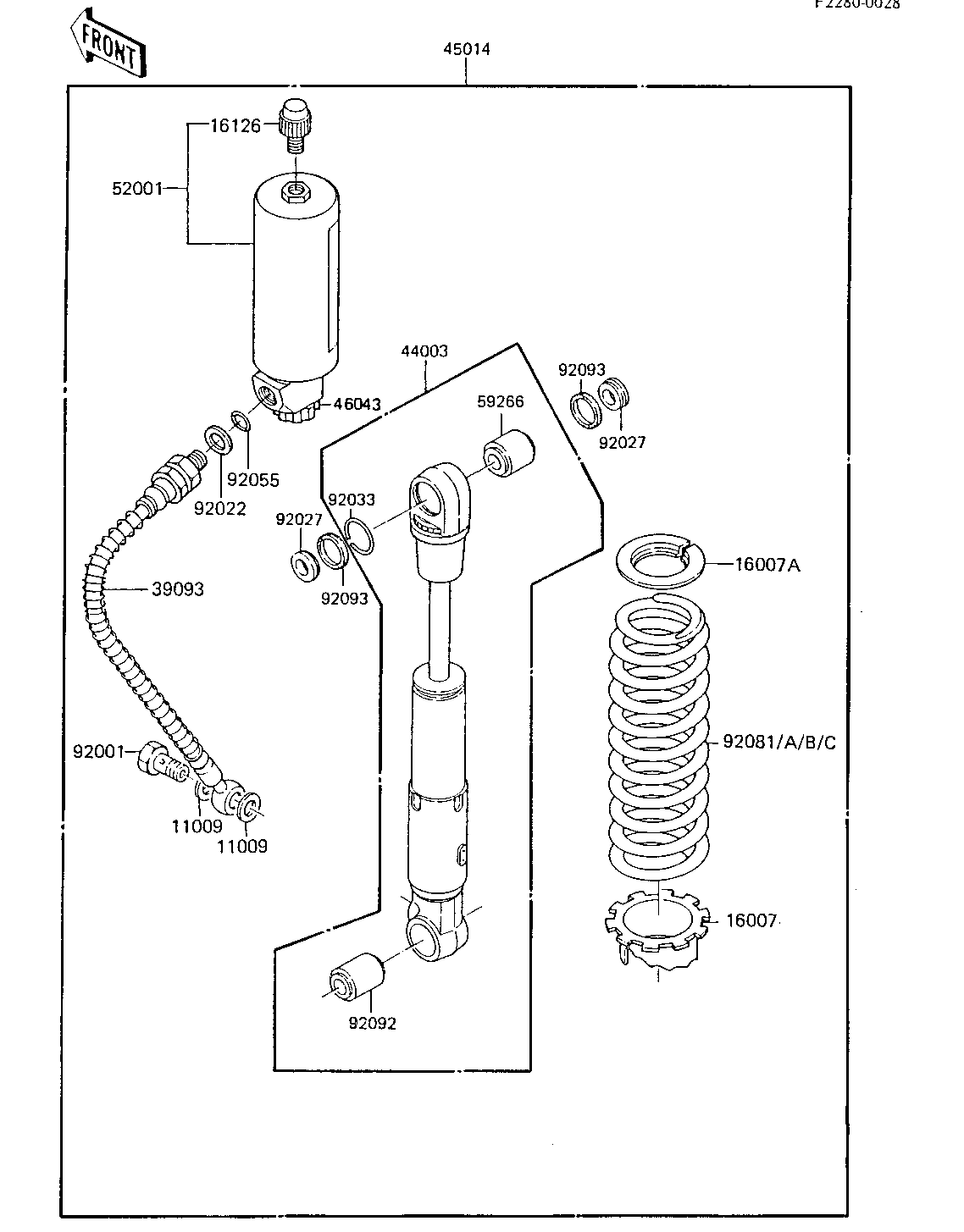

1985 KX80 - SHOCK ABSORBER ('85 KX80-E3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FORK CYLINDER | 11009 | 44045-057 | 2 | ||
| SEAT-SPRING,REAR SHOC | 16007 | 16007-1057 | 1 | ||
| SEAT-SPRING,REAR SHOC | 16007A | 16007-1121 | 1 | ||
| VALVE,AIR | 16126 | 16126-1118 | 1 | ||
| PIPE-COMP-SUSP,SHOCKA | 39093 | 39093-1104 | 1 | ||
| DAMPER-ASSY,REAR SHOC | 44003 | 44003-1562 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-1294 | 1 | ||
| KNOB-ASSY,OIL TANK | 46043 | 46043-1052 | 1 | ||
| TANK-OIL,REAR SHOCK | 52001 | 52001-1057 | 1 | ||
| JOINT-BALL,REAR SHOCK | 59266 | 59266-1053 | 1 | ||
| BOLT,PIPE-COMP-SUSP | 92001 | 92001-1752 | 1 | ||
| WASHER,REAR SHOCK | 92022 | 92022-1297 | 1 | ||
| COLLAR,REAR SHOCK | 92027 | 92027-1862 | 2 | ||
| RING-SNAP,REARSHOCK | 92033 | 92033-1090 | 1 | ||
| "0" RING | 92055 | 92055-1099 | 1 | ||
| SPRING,SHOCKABSORBER, | 92081 | 92081-1534 | 1 | ||
| SPRING,SHOCKABSORBER, | 92081A | 92081-1535 | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER, | 92081B | 92081-1815 | 1 | ||
| SPRING | 92081C | 92081-1832 | 1 | (OPTION) | |
| BUSHING-RUBBER,SHOCKA | 92092 | 92092-1016 | 1 | ||
| SEAL,REAR SHOCK | 92093 | 92093-1183 | 2 |
