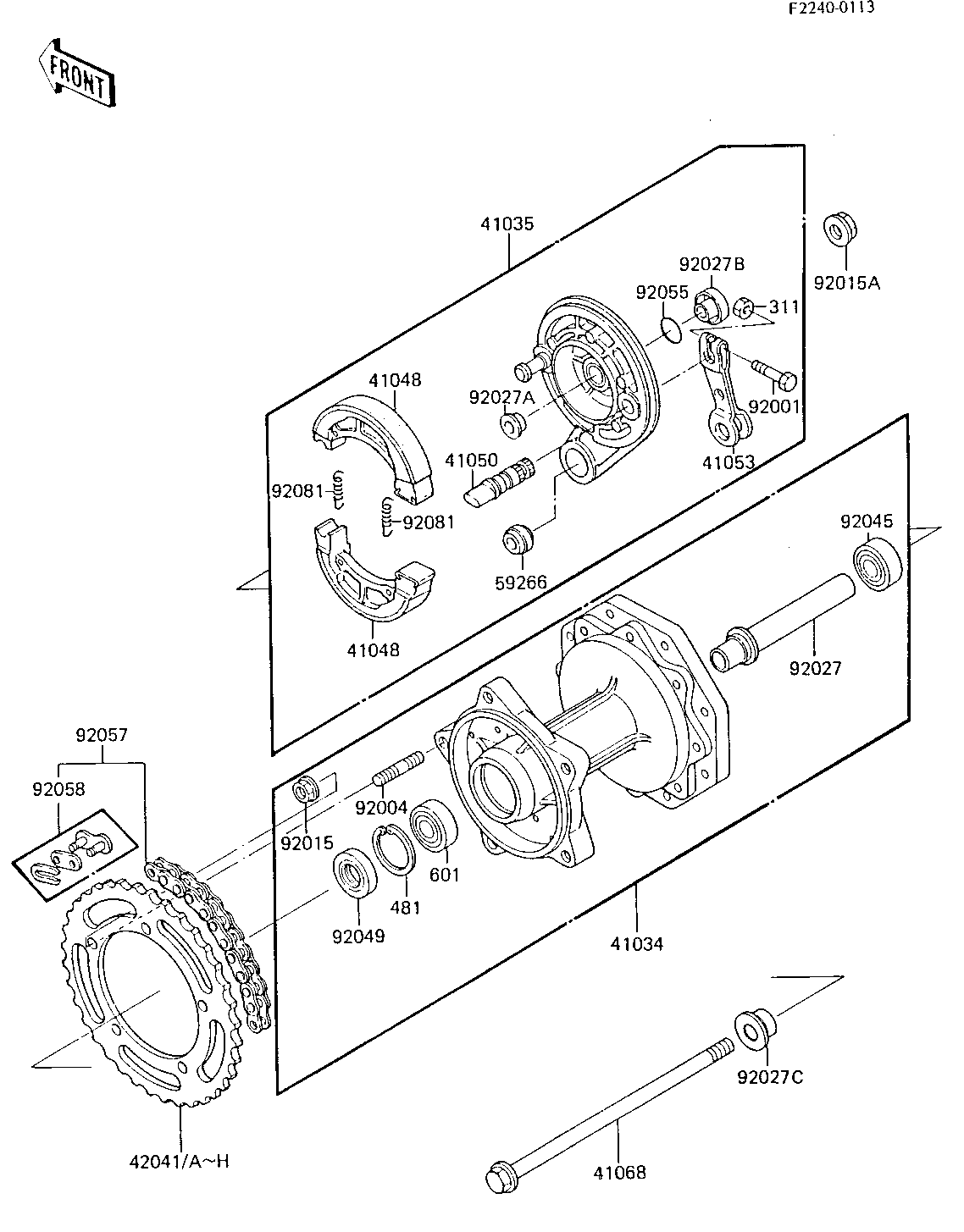

1985 KX80 - REAR HUB/BRAKE/CHAIN ('85 KX80-E3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1068 1
PANEL-ASSY-BRAKE,RR 41035 41035-1169 1
SHOE-BRAKE 41048 41048-1083 2
CAM-BRAKE,RR 41050 41050-1028 1
LEVER-BRAKE CAM,RR 41053 41053-1057 1
AXLE,RR 41068 41068-1177 1
SPROCKET-HUB,44T 42041 42041-1114 1 (OPTION)
SPROCKET-HUB,43T 42041A 42041-1116 1 (OPTION)
SPROCKET-HUB,45T 42041B 42041-1117 1 (OPTION)
SPROCKET-HUB,49T 42041C 42041-1121 1 (OPTION)
SPROCKET-HUB,48T 42041 42041-1122 1 (OPTION)
SPROCKET-HUB,50T 42041E 42041-1123 1
SPROCKET-HUB,47T 42041F 42041-1129 1 (OPTION)
SPROCKET-HUB,46T 42041G 42041-1178 1 (OPTION)
SPROCKET-HUB,51T 42041H 42041-1181 1 (OPTION)
JOINT-BALL,BRAKE PANE 59266 59266-1013 1
BOLT,5X25 92001 92001-1695 1
STUD,8X14 92004 92004-1053 5
NUT-8MM 92015 92015-1022 5
NUT-12MM 92015A 92015-1156 1
COLLAR,REAR DRUM,L=11 92027 92027-1471 1
COLLAR,BRAKE PANEL,LH 92027A 92027-1541 1
COLLAR,BRAKE PANEL,RH 92027B 92027-1542 1
COLLAR,REAR AXLE,14.5 92027C 92027-1813 1
BEARING-BALL,TMB201LL 92045 92045-1062 1
SEAL-OIL,DD20377 92049 92049-1096 1
"O" RING 92055 92055-104 1
CHAIN,DRIVE DID420MX1 92057 92057-1173 1
JOINT-CHAIN 92058 92058-1053 1
SPRING,BRAKE SHOE 92081 92081-1766 2
NUT-HEX 311 311G0500 1
CIRCLIP.37MM 481 481J3700 1
BEARING-BALL, #6201 601 601B6301UU 1
