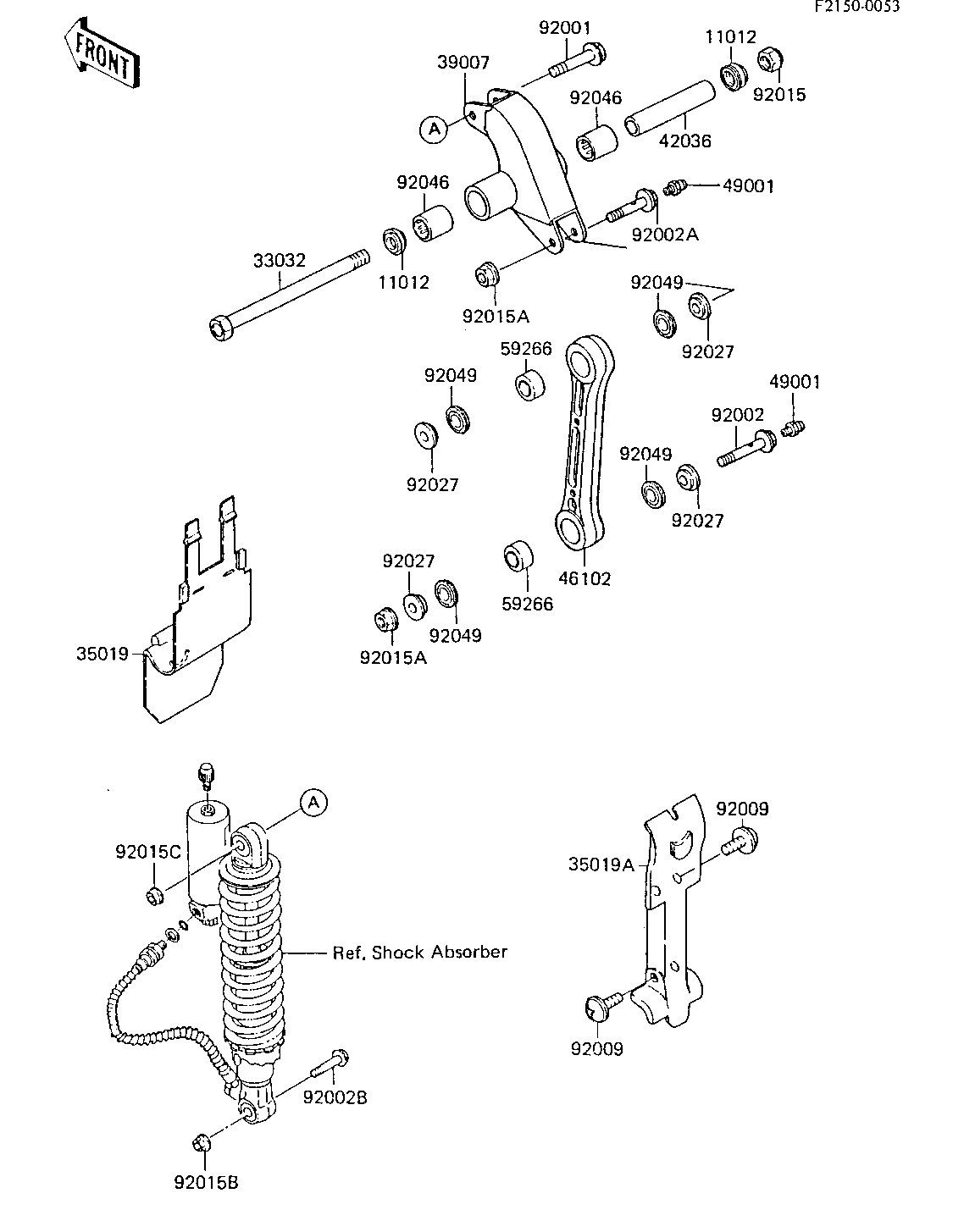

1985 KX80 - REAR SUSPENSION ('85 KX80-E3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM | 11012 | 11012-1263 | 2 | ||
| SHAFT-SUSPENSION ARM, | 33032 | 33032-1032 | 1 | ||
| FLAP,ARM-SUSP | 35019 | 35019-1054 | 1 | ||
| FLAP,ROD | 35019A | 35019-1139 | 1 | ||
| ARM-SUSP,UNI-TRAK | 39007 | 39007-1063 | 1 | ||
| SLEEVE,SUSPENSION ARM | 42036 | 42036-1068 | 1 | ||
| ROD,SUSPENSION | 46102 | 46102-1124 | 1 | ||
| NIPPLE-GREASE,ROD BOL | 49001 | 49001-1051 | 2 | ||
| JOINT-BALL,SUSPENSION | 59266 | 59266-1054 | 2 | ||
| BOLT,FLANGED,10X43.5 | 92001 | 92001-1711 | 1 | ||
| BOLT,ROD,LWR,12MM | 92002 | 92002-1366 | 1 | ||
| BOLT,ROD,UPP,12MM | 92002A | 92002-1367 | 1 | ||
| BOLT,FLANGED,10X41 | 92002B | 92002-1385 | 1 | ||
| SCREW,6X10 | 92009 | 92009-1286 | 4 | ||
| NUT | 92015 | 92015-1774 | 1 | ||
| NUT-12MM | 92015A | 92015-1156 | 2 | ||
| NUT,10MM | 92015B | 92015-1415 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92015C | 92015-1338 | 1 | ||
| COLLAR,ROD | 92027 | 92027-1523 | 4 | ||
| BEARING-NEEDLE,ARM-SU | 92046 | 92046-1050 | 2 | ||
| SEAL-OIL,ROD | 92049 | 92049-1099 | 4 |
| CAP,SWING ARM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SUSPENSION ARM, | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,ARM-SUSP | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,ROD | |
| REF # | 35019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP,UNI-TRAK | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SUSPENSION ARM | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SUSPENSION | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-GREASE,ROD BOL | |
| REF # | 49001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| JOINT-BALL,SUSPENSION | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X43.5 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ROD,LWR,12MM | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ROD,UPP,12MM | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X41 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ROD | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,ARM-SU | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,ROD | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
