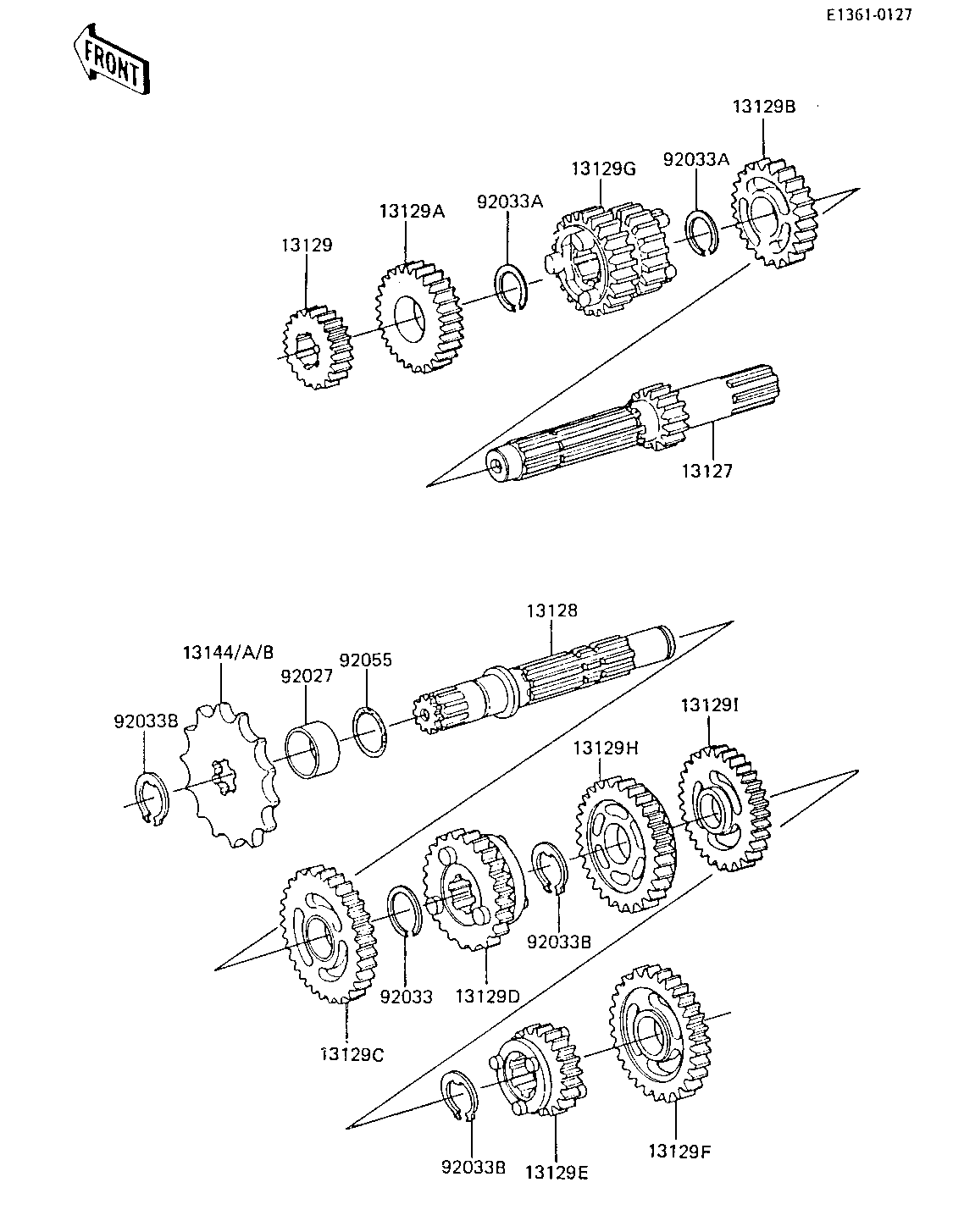

1985 KX80 - TRANSMISSION ('85 KX80-E3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1105 | 1 | ||
| SHAFT,OUTPUT | 13128 | 13128-1028 | 1 | ||
| 2ND GEAR,16T | 13129 | 13129-1215 | 1 | ||
| GEAR,INPUT 5TH,23T | 13129A | 13129-1343 | 1 | ||
| GEAR,INPUT TOP,24T | 13129B | 13129-1344 | 1 | ||
| GEAR,OUTPUT 2ND,34T | 13129C | 13129-1345 | 1 | ||
| GEAR,OUTPUT 5TH,28T | 13129D | 13129-1348 | 1 | ||
| GEAR,OUTPUT TOP,26T | 13129E | 13129-1349 | 1 | ||
| GEAR,OUTPUT LOW,37T | 13129F | 13129-1515 | 1 | ||
| GEAR,INPUT 3RD&4TH,21 | 13129G | 13129-1611 | 1 | ||
| GEAR,OUTPUT 4TH,30T | 13129H | 13129-1612 | 1 | ||
| GEAR-OUTPUT 3RD,31T | 13129I | 13129-1654 | 1 | ||
| SPROCKET,ENGINE,14T | 13144 | 13144-1022 | 1 | ||
| SPROCKET,ENGINE,13T | 13144A | 13144-1023 | 1 | (OPTION) | |
| SPROCKET,ENGINE,15T | 13144B | 13144-1024 | 1 | (OPTION) | |
| COLLAR,ENG SPROCKET | 92027 | 92027-1077 | 1 | ||
| CIRCLIP,18MM | 92033 | 92033-029 | 1 | ||
| RING,SNAP | 92033A | 92033-1060 | 2 | ||
| RING-SNAP,18MM | 92033B | 92033-1079 | 3 | ||
| "0" RING | 92055 | 92055-022 | 1 |
| SHAFT-TRANSMISSION IN | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,16T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,23T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,24T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,34T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,28T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,26T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,37T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,21 | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,30T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-OUTPUT 3RD,31T | |
| REF # | 13129I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,14T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,ENGINE,13T | |
| REF # | 13144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPROCKET,ENGINE,15T | |
| REF # | 13144B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| COLLAR,ENG SPROCKET | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,SNAP | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,18MM | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
